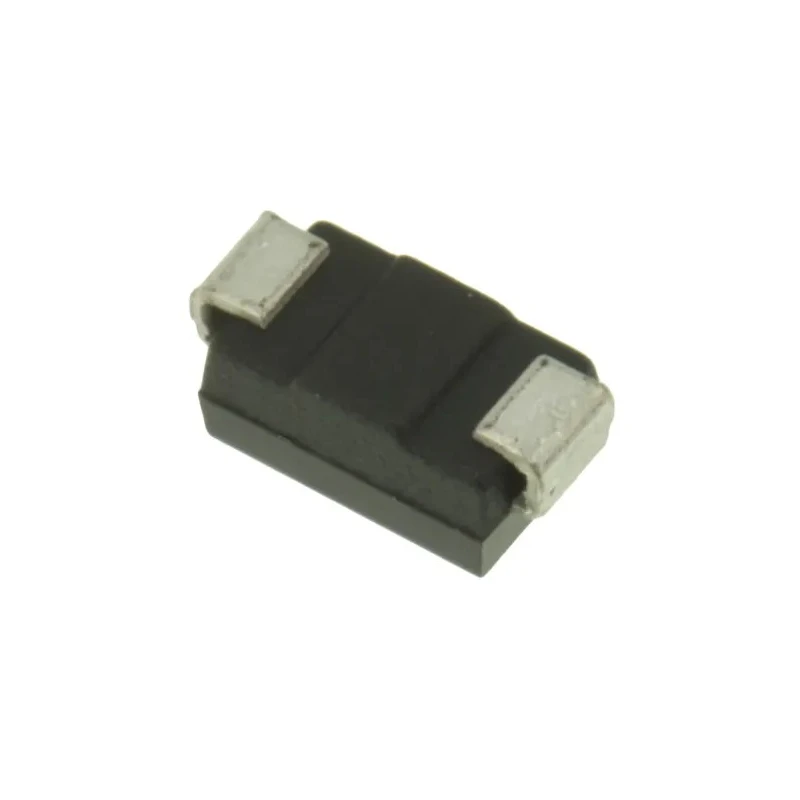

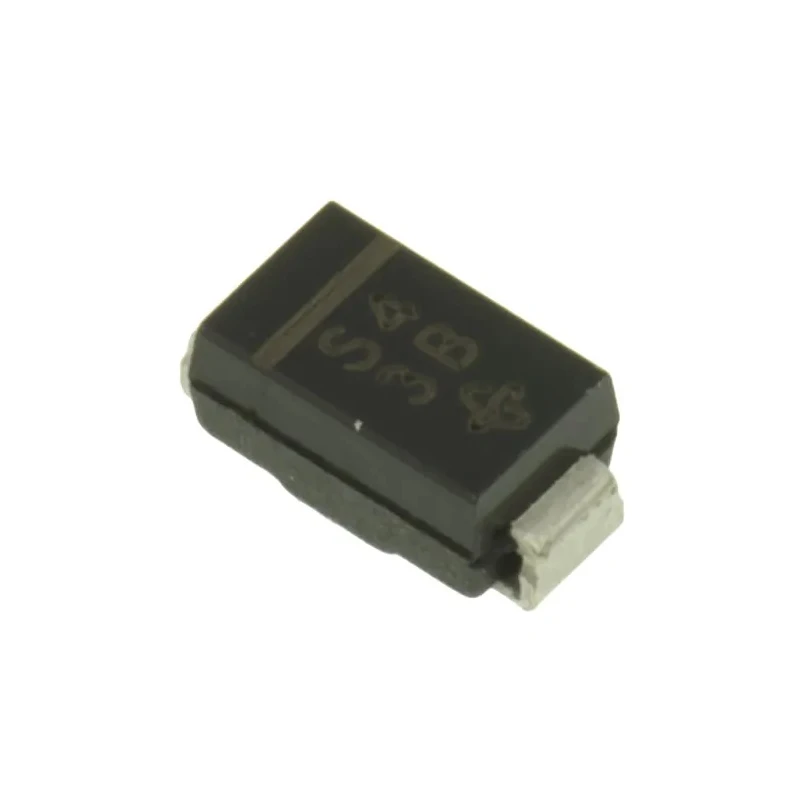

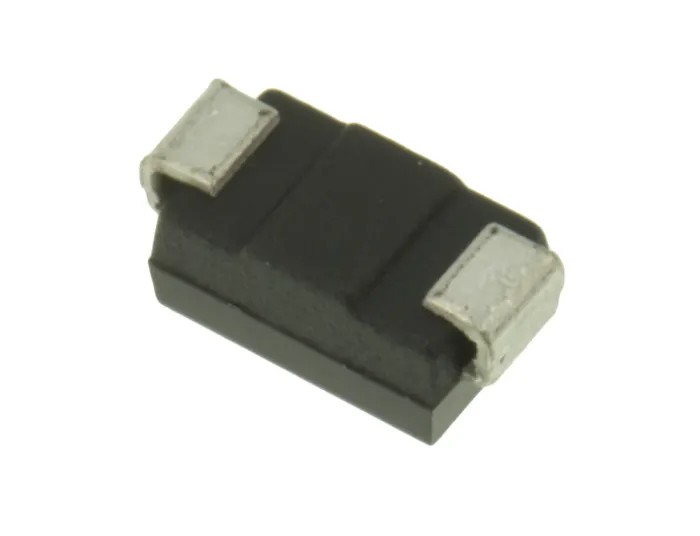

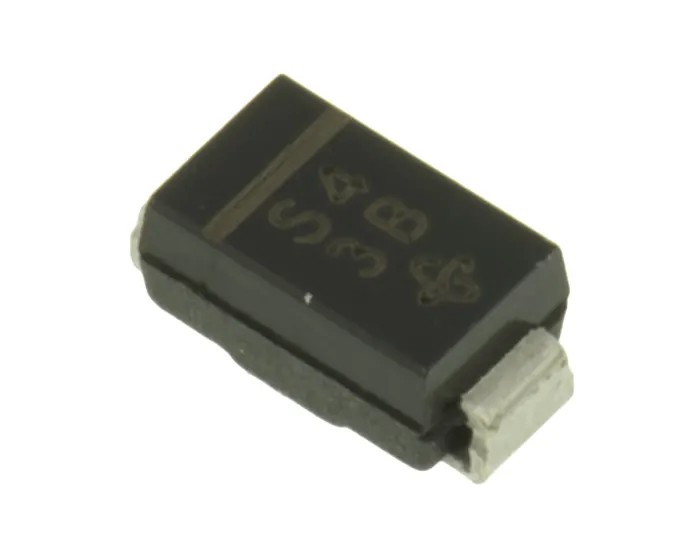

Vishay 40 V 1 A Surface Mount Schottky Diode 2-Pin DO-214AC SS14-E3/61T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | SS14-E3/61T |
| Width | 2.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | +150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 500mV |
| Taiwan Semiconductor 40 V 1 A Diode Schottky 2-Pin DO-214AC SS14 R2Brand | Taiwan Semiconductor |
| Vishay 40V 1A, Schottky Diode, 2-Pin DO-214AC SS14Brand | Vishay |
Key Features
- Features a 2-pin DO-214AC package suitable for surface mounting.
- Maximum continuous forward current of 1 ampere for reliable operation.
- Peak reverse repetitive voltage rated at 40 volts ensuring robust voltage handling.
- Low forward voltage of 500 mV to minimize power loss.
- Operates efficiently within a temperature range of -65°C to +150°C.
- Peak non-repetitive forward surge current capability of 40 A for transient protection.
- Designed with an over-voltage protection guard ring to enhance durability.
- Ideal for use in DC/DC converters, polarity protection, and low voltage, high frequency inverter applications.
Product Description
It features a compact 2-pin DO-214AC package with dimensions of 4.5 mm (length), 2.9 mm (width), and 2.09 mm (height), making it suitable for densely packed electronic circuits.
This diode has a low forward voltage drop of 500 mV and high surge current capability of up to 40 A, providing efficient operation with low power loss and good transient tolerance. Its operating temperature range from -65°C to +150°C ensures reliability across demanding industrial and commercial electronic applications.
The device incorporates an over-voltage protection guard ring for enhanced ruggedness and durability in harsh electrical environments. Its single diode configuration is tailored for Schottky barrier rectification, making it an excellent choice in DC/DC converters, freewheeling diodes, low voltage and high frequency inverters, and polarity protection circuits.
Features a 2-pin DO-214AC package suitable for surface mounting. Maximum continuous forward current of 1 ampere for reliable operation. Peak reverse repetitive voltage rated at 40 volts ensuring robust voltage handling. Low forward voltage of 500 mV to minimize power loss.
Operates efficiently within a temperature range of -65°C to +150°C. Peak non-repetitive forward surge current capability of 40 A for transient protection. Compact dimensions: 4.5 mm length, 2.9 mm width, and 2.09 mm height.
Designed with an over-voltage protection guard ring to enhance durability. Ideal for use in DC/DC converters, polarity protection, and low voltage, high frequency inverter applications. Single diode configuration optimized for Schottky barrier rectification.
This diode is manufactured to serve electronic industries including power supply design, automotive electronic systems, and general semiconductor applications, offering high efficiency and durability.
Browse and explore more semiconductor diodes and Schottky diodes right here on EnvMart for all your advanced electronic component requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
The peak reverse repetitive voltage is rated at 40 volts.
It has a low forward voltage drop of 500 mV.
The diode operates efficiently within a temperature range of -65°C to +150°C.
The dimensions of the DO-214AC package are 4.5 mm in length, 2.9 mm in width, and 2.09 mm in height.
The peak non-repetitive forward surge current capability is 40 A.
This model features a single diode configuration optimized for Schottky barrier rectification.
It is ideal for use in DC/DC converters, polarity protection, and low voltage, high frequency inverter applications.
The diode has a pin count of 2.
The peak reverse current is 6 mA.
Yes, it is designed with an over-voltage protection guard ring to enhance durability.
The diode is manufactured in India.
