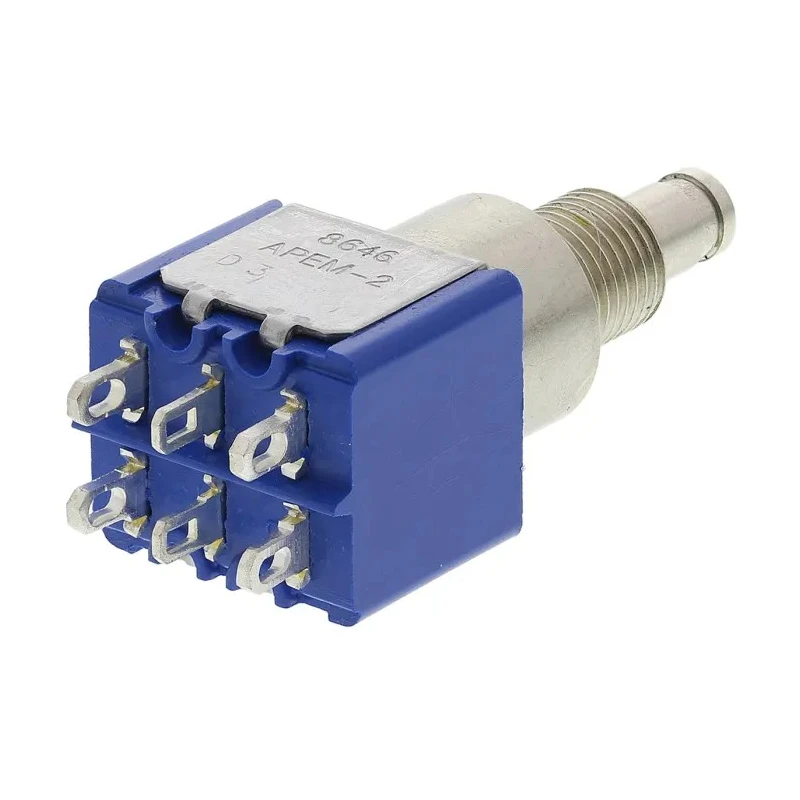

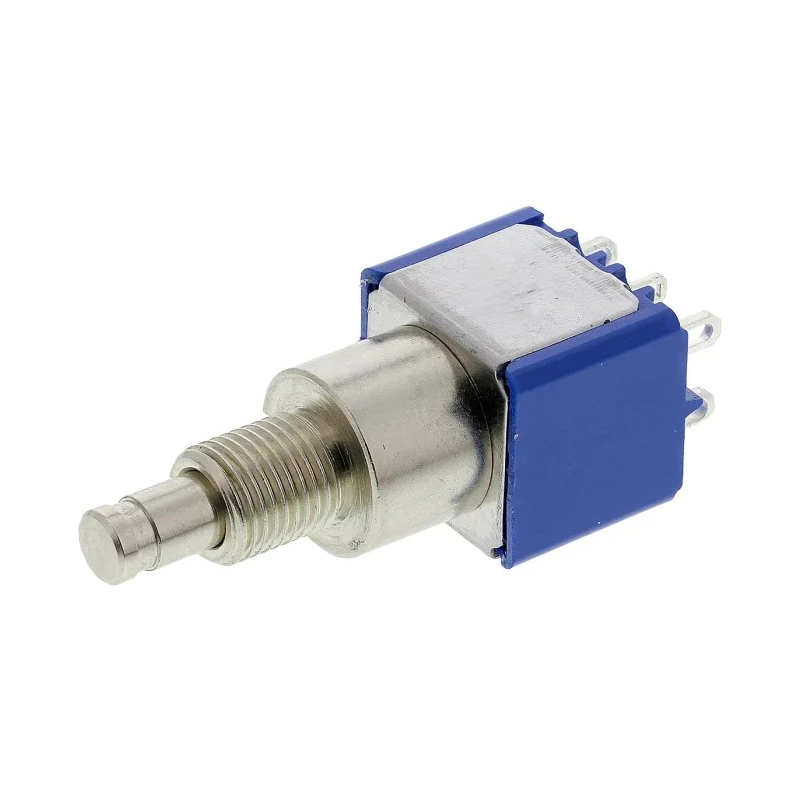

APEM 8000 Series Miniature Push Button Switch, Latching, Panel Mount, 6.5 mm Cutout, DPDT 8646A

APEM 8646A Miniature Push Button Switch from the 8000 Series is a high-quality latching switch designed for panel mounting with a 6.5 mm cutout and DPDT contact configuration. This miniature switch features a sturdy stainless steel body and epoxy sealed terminals for enhanced durability. The actuator is made of nickel-plated brass and supports interchangeable coloured caps to customize appearance and function.

This switch is engineered for industrial, electrical, and automation applications, capable of reliable operation over a temperature range from -40°C to 85°C. It has an electrical life of 30,000 cycles, making it suitable for demanding environments requiring frequent switching.

Its contact configuration is Double Pole Double Throw (DPDT), enabling versatile circuit switching with a latching mechanism that maintains the switch state until actuated again. The switch terminals are solder type, facilitating secure and lasting electrical connections.

The 6.5 mm panel cutout size allows integration into compact control panels while ensuring easy installation. Its compliant RoHS certification confirms adherence to environmental safety standards.

This product finds uses across industrial automation, control panels, instrumentation, and machinery requiring miniature, durable push button switches with reliable performance. Optional accessories include sealing hoods and various coloured push-button caps compatible with the 8000 and 9000 series.

This switch features a compact miniature design suitable for panel mounting. It operates with a latching mechanism ensuring stable ON/OFF positions. Contact configuration is Double Pole Double Throw (DPDT) for versatile circuit control.

The actuator style is a durable nickel-plated brass cylinder compatible with interchangeable caps. The panel cutout size is precisely 6.5 mm, optimized for miniature applications. Electrical life expectancy is 30,000 cycles for reliable long-term use.

Terminals are epoxy sealed, enhancing durability and environmental protection. The switch is RoHS compliant, ensuring reduced hazardous substances. Operating temperature range spans from -40°C to 85°C, suitable for industrial environments.

Switch contact current rating is 4 A AC, appropriate for low power control circuits. Constructed with a stainless steel body for robustness and corrosion resistance. Browse more push button switches and related components at EnvMart for suitable accessories and complementary products.
