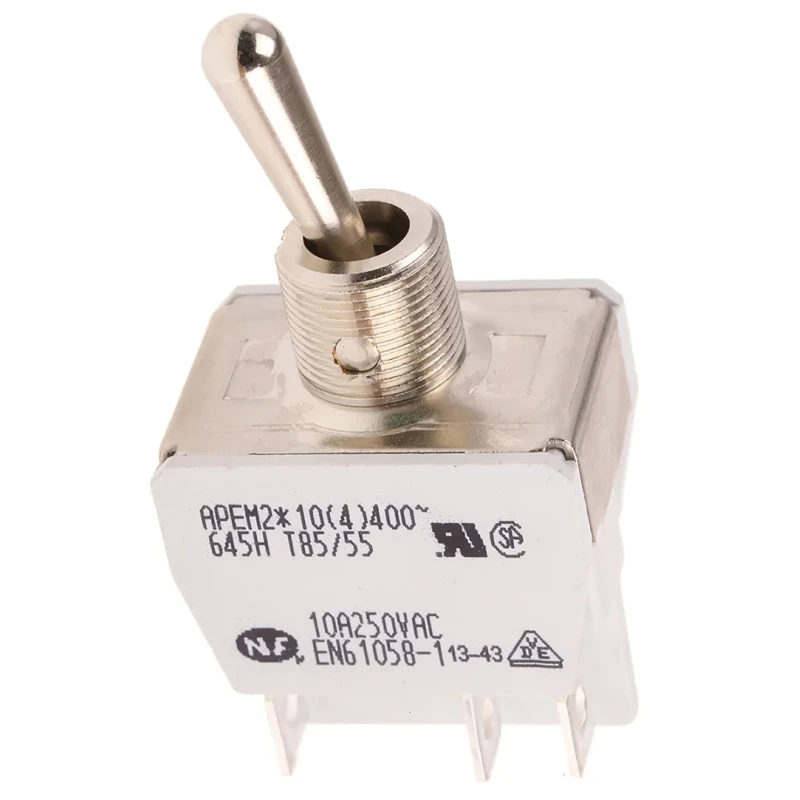

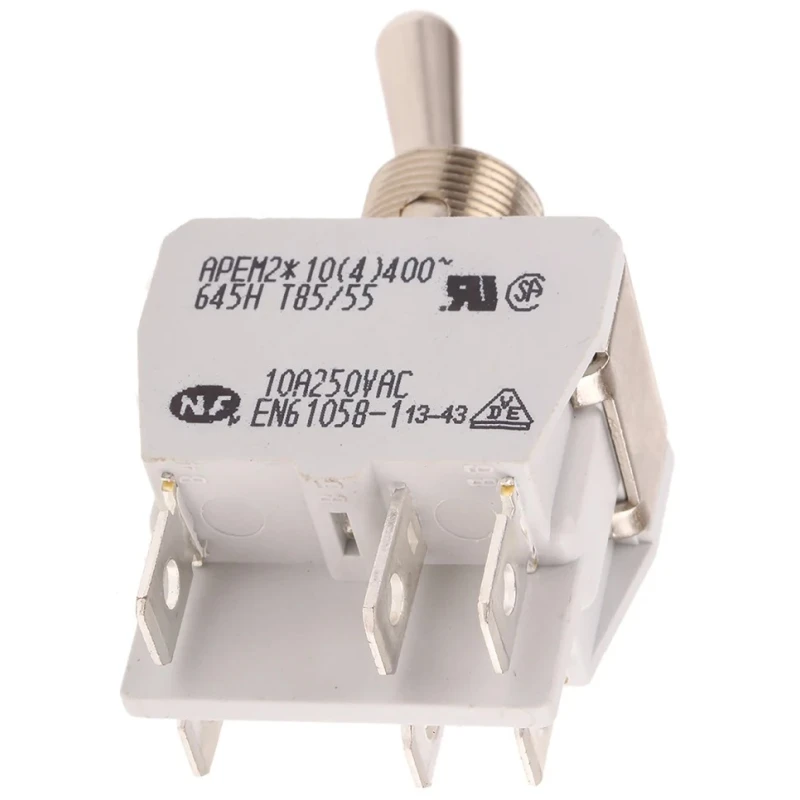

APEM Toggle Switch Panel Mount On-On DPST Tab Terminal 24V dc 10A 250V ac 645H/2

Free Delivery in India | Lowest Global Shipping Charges

APEM Toggle Switch Panel Mount On-On DPST Tab Terminal 24V dc 10A 250V ac 645H/2

Name: APEM Toggle Switch Panel Mount On-On DPST Tab Terminal 24V dc 10A 250V ac 645H/2
Brand: APEM
SKU: 180286
Price: 11.7 USD
Availability: InStock



Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Height	60.4mm
Length	29.7mm
Model	645H/2
Width	21.5mm
Mount Type	Panel
Series	600h
Maximum Operating Temperature	55°C
Contact Configuration	DPST
Switch Configuration	On-(On)
Minimum Operating Temperature	-20°C
Panel Cutout Size	12.5 mm
Terminal type	Tab
Standards/Approvals	NF, RoHS, VDE, UL, EN, CSA
Switch Operation	On-On
Actuator Length	17.5mm
Contact DC Voltage	24V dc
Switch Contact Current	10A
Contact AC Voltage	250V ac
Actuator Material	Nickel Plated Brass

Key Features

The switch features a double pole, single throw contact configuration (DPST).
It utilizes reliable tab terminals for secure connection and is designed for panel mounting.
The actuator is made of nickel plated brass and measures 17.5 mm in length.
This switch operates within a wide temperature range from -20°C to 55°C.
The panel cutout size required for installation is 12.5 mm, ensuring compatibility with standard panels.
The switch complies with several international standards including NF, RoHS, VDE, UL, EN, and CSA for quality and safety assurance.
This product is manufactured in France showcasing high-quality components and assembly.

Product Description

APEM 645H/2 Toggle Switch is a high-quality panel mount On-On double pole single throw (DPST) switch designed for electrical and automation applications requiring reliable and robust switching capabilities. It supports direct current operations up to 24 V dc and alternating current up to 250 V ac with a contact current rating of 10A, making it suitable for a wide range of industrial and commercial control panels.

The actuator is constructed from nickel plated brass, offering durability and resistance to corrosion. The toggle lever design ensures positive tactile feedback and long service life. Its compact dimensions - 60.4 mm height, 21.5 mm width, and 29.7 mm length - allow easy integration into panels with a 12.5 mm cutout size.

Terminal connections utilize tab terminals rated for secure and stable wiring, suited for panel mount installations. Operating temperature spans from -20°C to 55°C, enabling reliable performance under various environmental conditions.

The switch conforms to an array of safety and quality standards including NF, RoHS, VDE, UL, EN, and CSA, ensuring compliance with regulatory requirements and enhanced user safety.

This toggle switch series 600h is produced in France, reflecting superior manufacturing quality and precision engineering preferred in industrial, laboratory, HVAC, and commercial electrical panel applications.

The double pole, single throw contact configuration ensures simultaneous control of two separate circuits. Tab terminals provide convenient and secure wiring connections. Nickel plated brass actuator delivers corrosion resistance and mechanical strength.

Compact size fits standard panel cutouts facilitating straightforward installs. Wide temperature tolerance maintains switch reliability across operating environments. Compliance with multiple international approvals guarantees trustworthy performance.

Ideal for industrial controls, automation systems, and electrical distribution panels. Explore more Toggle Switches and electrical components in EnvMart’s comprehensive catalog to find perfectly matched parts for your technical projects.
