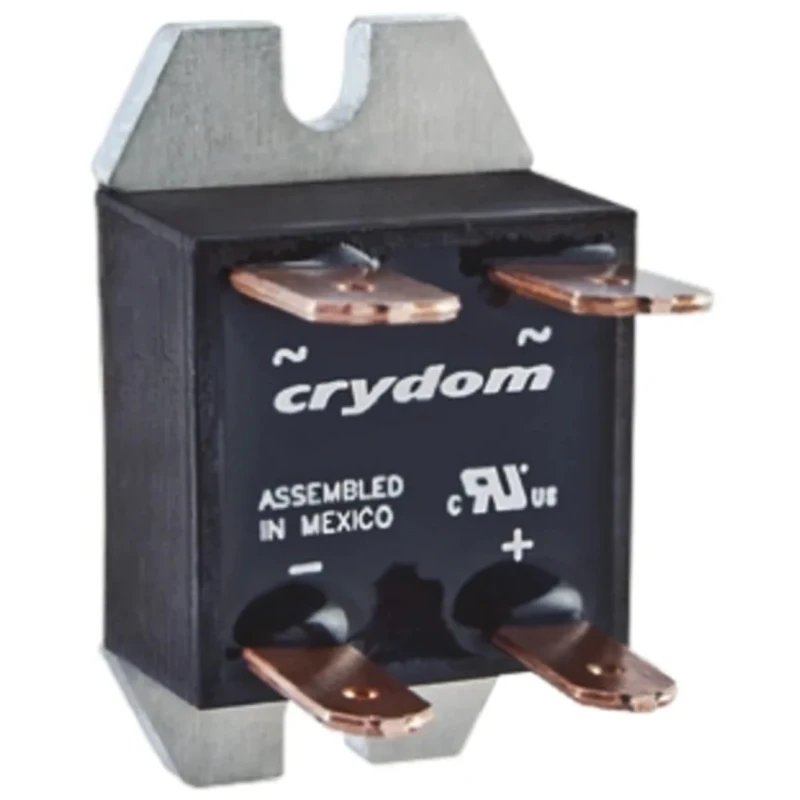

Crydom EL Series Solid State Relay 10 A Load 280 V AC Panel Mount Quick Connect Terminals EL240A10-05
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Operating Temperature | -30 → +80 °C |
| Height | 14.3mm |
| Length | 35.6mm |
| Model | EL240A10-05 |
| IP Rating | IP00 |
| Width | 21.1mm |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | EL |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Quick Connect |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 10A |
| Standards/Approvals | CE, IEC Rated, RoHS, UL |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 8V dc |
| Off State Leakage Current | 0.1mArms |
Key Features
- The relay supports a maximum load current of 10 A and a load voltage range of 24 to 280 V AC.
- Equipped with zero cross switching function suitable for resistive loads.
- Operates over a temperature range from -30°C to +80°C ensuring reliable performance in various environments.
- Features a quick connect terminal type and SPST contact configuration for effective electrical control.
- The compact size with dimensions of 35.6 mm length, 21.1 mm width, and 14.3 mm height allows easy panel mounting.
- Designed with MOSFET output type to provide fast and efficient switching.
- Offers low off-state leakage current of 0.1 mArms to minimize power loss.
- UL Recognised, CE, IEC Rated, RoHS compliant confirming industrial quality and safety standards.
Product Description
The Crydom EL240A10-05 is a high-quality solid state relay in the EL Series designed for panel mounting applications in industrial automation and electrical control systems. This relay supports a maximum load current of 10 A with an operating load voltage ranging from 24 V AC up to 280 V AC, making it suitable for a broad range of resistive load control scenarios. The relay's control input voltage operates between 4 V DC minimum and 8 V DC maximum, enabling precise and efficient actuation.
Featuring zero cross switching functionality, it reduces electrical noise and stress on the load by switching at the zero point of AC waveform. This characteristic is ideal for resistive loads such as heaters and ovens. Its compact form factor with dimensions 35.6 mm length, 21.1 mm width, and 14.3 mm height facilitates easy integration into control panels using panel mounting techniques.
The relay utilizes MOSFET output technology to achieve rapid switching times and reduce power dissipation. Quick connect terminals provide convenient and secure wiring, complemented by a SPST (Single Pole Single Throw) contact configuration for straightforward application.
Operating reliably over a wide temperature range from -30°C to +80°C, the EL240A10-05 solid state relay is built to withstand demanding industrial and commercial environments. Its construction meets multiple international standards including UL recognition, CE marking, IEC ratings, and RoHS compliance, ensuring safety, performance, and environmental adherence.
Manufactured in Mexico, this solid state relay represents a dependable component for process control in HVAC systems, manufacturing automation, water treatment, and other industrial electrical control applications requiring robust panel mount SSR solutions.
Maximum load current: 10 A. Load voltage: 24 to 280 V AC. Control voltage: 4 to 8 V DC. Zero cross switching for resistive loads. Panel mount design with quick connect terminals. SPST contact configuration. Low off-state leakage current: 0.1 mArms.
Wide operating temperature range: -30°C to +80°C. UL Recognised, CE, IEC Rated, RoHS compliant. Compact dimensions: 35.6 mm x 21.1 mm x 14.3 mm. Output type: MOSFET. Explore the full range of Solid State Relays and industrial control components on EnvMart for your automation and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current supported by this solid state relay is 10 A.
This model supports a load voltage range from 24 V AC to 280 V AC.
The control input voltage operates between 4 V DC and 8 V DC.
It features a zero cross switching function, which is suitable for resistive loads.
The dimensions of this solid state relay are 35.6 mm in length, 21.1 mm in width, and 14.3 mm in height.
The relay operates reliably over a temperature range from -30°C to +80°C.
This model utilizes a MOSFET output type for fast and efficient switching.
It has a Single Pole Single Throw (SPST) contact configuration.
The off-state leakage current is 0.1 mArms, which helps minimize power loss.
This relay is designed for panel mounting with quick connect terminals.
It is UL Recognised, CE marked, IEC Rated, and RoHS compliant, ensuring adherence to safety and environmental standards.
This solid state relay is manufactured in Mexico.
