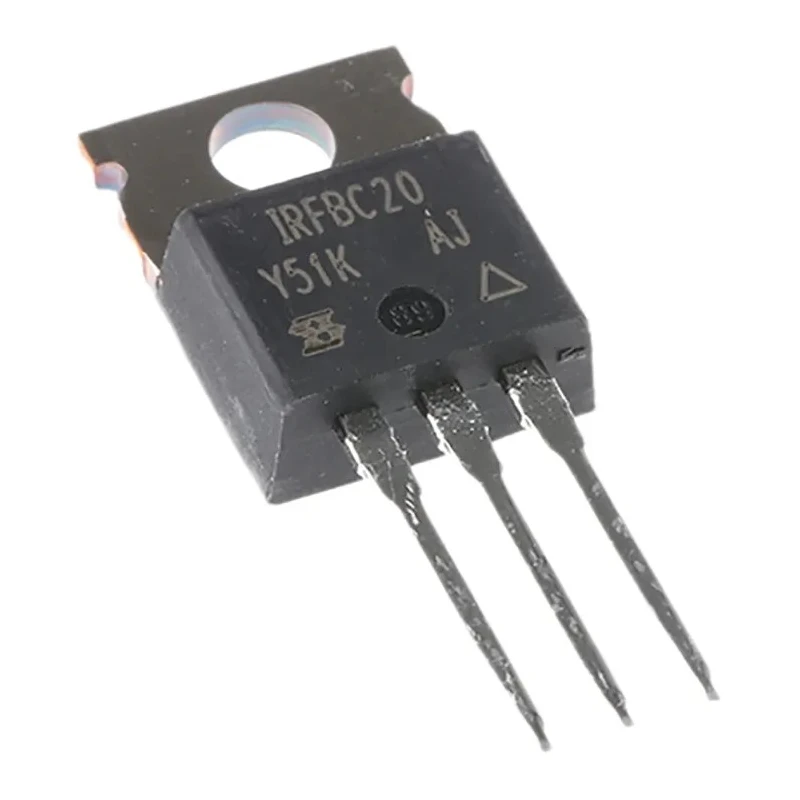

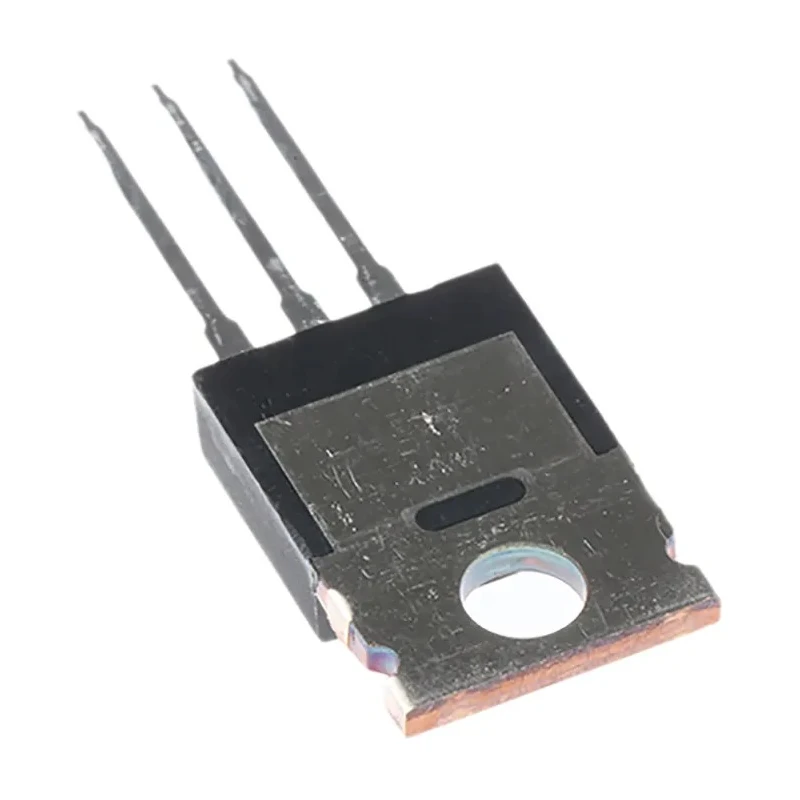

Vishay N-Channel Power MOSFET 2.2 A, 600 V Enhancement, 3-Pin TO-220AB IRFBC20PBF

Vishay IRFBC20PBF is a high-voltage N-channel power MOSFET designed for use in power conversion, control circuits, and industrial switching applications. It operates as an enhancement-mode transistor with a maximum drain-source voltage rating of 600 volts and supports a continuous drain current of 2.2 amperes.

Encapsulated in a reliable 3-pin TO-220AB through-hole package, it allows straightforward mounting and excellent heat dissipation when paired with suitable heatsinks. The device is engineered for use across a wide industrial temperature range from -55°C up to 150°C, providing durability in harsh environments.

With a low on-resistance of 4.4 ohms, this MOSFET minimizes conduction losses, ensuring efficient energy usage. The typical gate charge of 18 nanocoulombs ensures predictable and responsive switching performance, and the maximum gate-source voltage of ±20 volts protects the transistor's gate oxide from damage. Rated for 50 watts maximum power dissipation, the IRFBC20PBF can handle sustained power loads effectively.

This Power MOSFET is ideal for high-voltage power supplies, switch-mode power controllers in industrial equipment, and discrete driver stages used in motor control interfaces. Its use also extends to snubber and clamp circuits in power systems, as well as laboratory prototyping environments where through-hole mounting is advantageous.

Supports 2.2 A continuous drain current for moderate loads. 600 V maximum drain-source voltage for robust high-voltage switching. Low Rds(on) of 4.4 Ω for lower conduction losses. Through-hole TO-220AB package facilitates heat sinking and mounting.

Wide operating temperature range from -55°C to 150°C. 18 nC typical gate charge allows efficient switching. Maximum gate-source voltage rating ±20 V safeguards gate oxide. 50 W maximum power dissipation supports thermal demands.

RoHS compliant for environmental safety.

This product is a dependable choice in industrial, laboratory, and manufacturing settings requiring efficient high-voltage power switching capabilities. Explore more power semiconductors and MOSFETs at EnvMart for your industrial applications.
