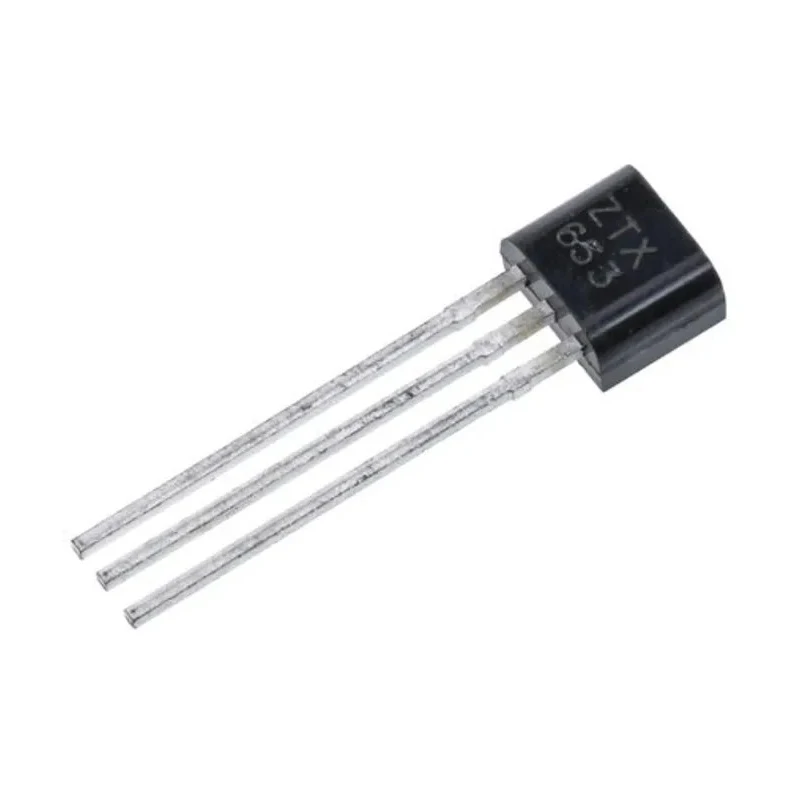

DiodesZetex Bipolar Transistor NPN 2A 100V 1W E-Line 3-Pin Through Hole ZTX653

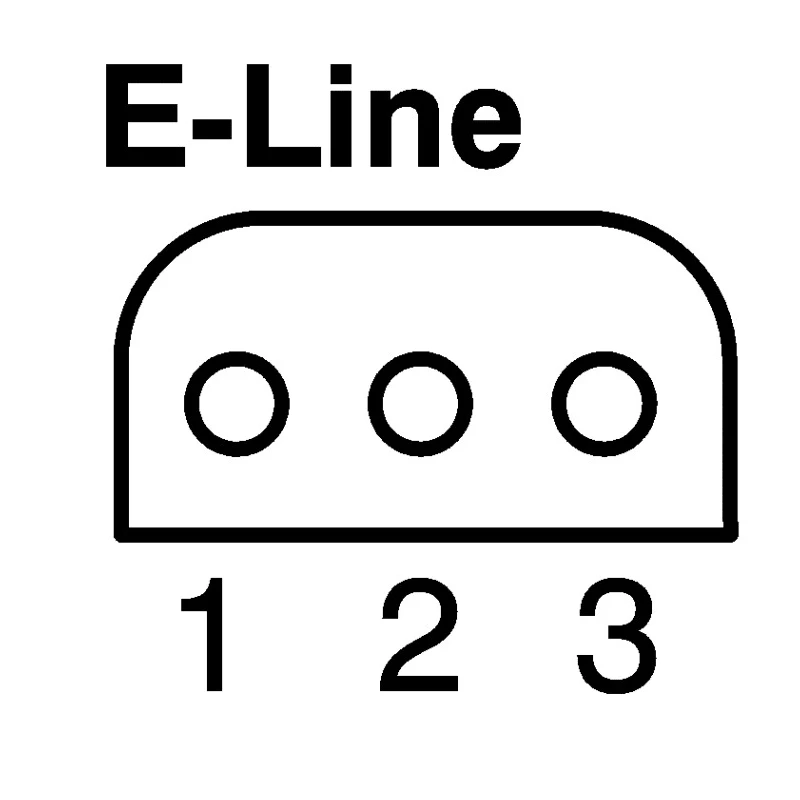

DiodesZetex ZTX653 is a robust, general-purpose NPN bipolar transistor used extensively in electronic circuits for amplification and switching applications. It offers a maximum DC collector current of 2 amperes and can withstand a collector-emitter voltage of up to 100 volts. Packaged in a 3-pin E-Line format, this transistor is designed for through-hole mounting, providing secure mechanical attachment to printed circuit boards.

The transistor features a minimum DC current gain of 100 and supports transition frequencies up to 175 MHz, making it suitable for mid to high-frequency signal processing. Its power dissipation capacity of 1 watt allows it to handle a variety of load conditions without overheating when adequately cooled.

This component operates reliably over a wide temperature range from -55°C to 200°C, catering to demanding industrial, commercial, and laboratory environments. The maximum collector-base voltage rating of 120 volts and emitter-base voltage rating of 5 volts ensure stable operations within specified limits.

The ZTX653 transistor is not automotive certified but finds uses in electronic component manufacturing, prototyping, HVAC control circuits, instrumentation, and other industrial electronic assemblies.

Its through-hole mount and E-Line packaging simplify circuit design and assembly, ensuring compatibility with standard PCB layouts. This transistor is ideal for engineers and technicians seeking a dependable NPN transistor for discrete semiconductor applications.

Capable of maximum DC collector current of 2 amperes. Maximum collector-emitter voltage rated at 100 volts. Power dissipation up to 1 watt allows for moderate power applications. Designed for operation between -55°C and 200°C temperature range.

Minimum DC current gain (hFE) is 100, ensuring adequate amplification. Maximum transition frequency is 175 MHz, suitable for high-frequency applications. Package type is E-Line with through-hole mount for reliable PCB installation.

Three-pin configuration simplifies circuit integration. Maximum collector-base voltage is 120 volts, with emitter-base voltage up to 5 volts. Non-automotive standard transistor suitable for general electronic use. Explore more electronic components in the Bipolar Transistors category at EnvMart for reliable sourcing and competitive options.
