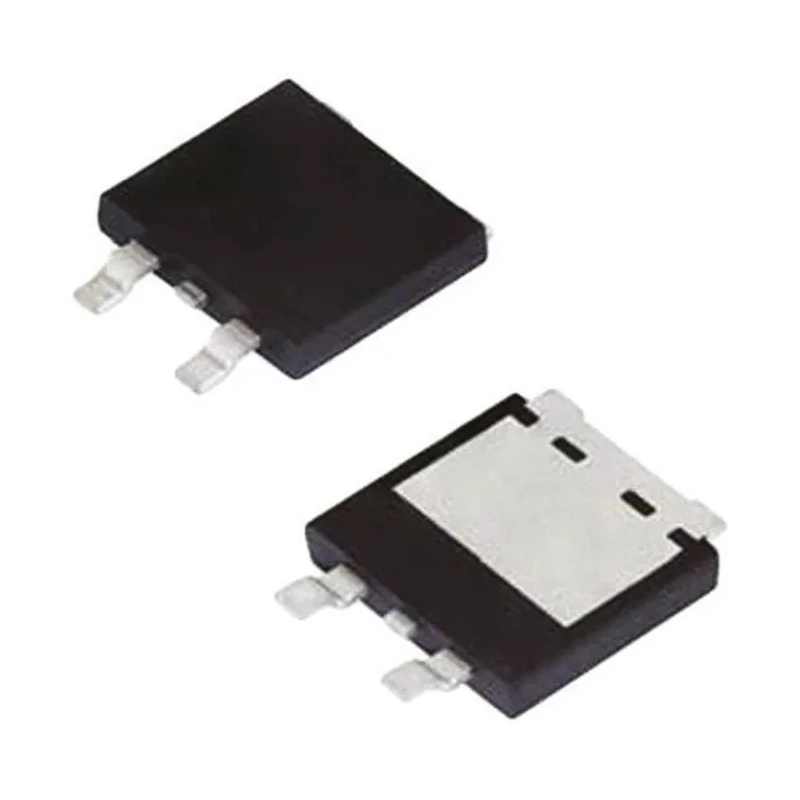

Vishay 100 V 40 A Schottky Diode 3-Pin DPAK TMBS Package V40PW10CHM3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.4mm |
| Length | 6.32mm |
| Model | V40PW10CHM3/I |
| Width | 6.72mm |
| Mount Type | Surface |
| Series | V40X |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 35mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 240A |
| Maximum Forward Voltage Vf | 890mV |
Key Features
- The diode supports a maximum continuous forward current of 40 A.
- It features a peak reverse repetitive voltage of 100 V.
- The maximum forward voltage drop is 890 mV, ensuring efficient conduction.
- Operates within a wide temperature range from -40°C to 150°C.
- Designed with a common cathode diode configuration for optimized performance.
- Peak non-repetitive forward surge current rating is 240 A for transient tolerance.
- The package dimensions measure approximately 6.72 mm width, 6.32 mm length, and 1.4 mm height.
- Complies with AEC-Q101 automotive standard, suitable for automotive applications.
Product Description
Vishay V40PW10CHM3/I is a high-performance Schottky diode engineered for efficient rectification in electronic circuits. This diode is packaged in a TMBS (Trench MOS Barrier Schottky) 3-pin DPAK surface-mount package, providing robustness and compactness ideal for power applications.
Featuring a maximum continuous forward current of 40 A and peak reverse repetitive voltage of 100 V, the diode ensures reliable operation under demanding electrical conditions. Its low forward voltage drop of 890 mV contributes to reduced power loss and improved energy efficiency.
The device supports a wide operating temperature range from -40°C to 150°C, making it suitable for harsh industrial and automotive environments. The common cathode configuration enhances circuit design flexibility in power supply and conversion applications.
With a peak non-repetitive forward surge current rating of 240 A, this diode withstands transient current spikes, enhancing durability. The compact package dimensions of 6.72 mm width, 6.32 mm length, and 1.4 mm height support space-saving PCB layouts.
This diode meets the AEC-Q101 automotive quality standard, making it well suited for automotive systems requiring high reliability and performance. Manufactured in China, it reflects Vishay’s commitment to quality semiconductor components.
The diode supports a maximum continuous forward current of 40 A. Peak reverse repetitive voltage rating is 100 V. Maximum forward voltage drop of 890 mV minimizes conduction losses. Wide operating temperature range from -40°C to 150°C.
Common cathode configuration for flexible power applications. Peak surge current of 240 A enhances transient tolerance. Compact TMBS 3-pin DPAK package dimensions: 6.72 x 6.32 x 1.4 mm. Automotive standard AEC-Q101 certified.
Manufactured in China to Vishay’s high standards.
Ideal for industrial power supplies, automotive electronics, and general-purpose rectification circuits, Vishay’s V40PW10CHM3/I offers reliability and efficiency. Explore more semiconductor solutions and Schottky diode variants with EnvMart’s extensive product catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode supports a maximum continuous forward current of 40 A.
It features a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop is 890 mV, ensuring efficient conduction.
This diode operates within a wide temperature range from -40°C to 150°C.
The peak non-repetitive forward surge current rating is 240 A for transient tolerance.
The package dimensions measure approximately 6.72 mm in width, 6.32 mm in length, and 1.4 mm in height.
It is designed with a common cathode diode configuration for optimized performance.
This diode complies with the AEC-Q101 automotive standard, making it suitable for automotive applications.
The diode has a pin count of 3.
It is a Schottky type rectifier, known for its efficiency in rectification.
It is manufactured in China.
This model belongs to the V40X series.
