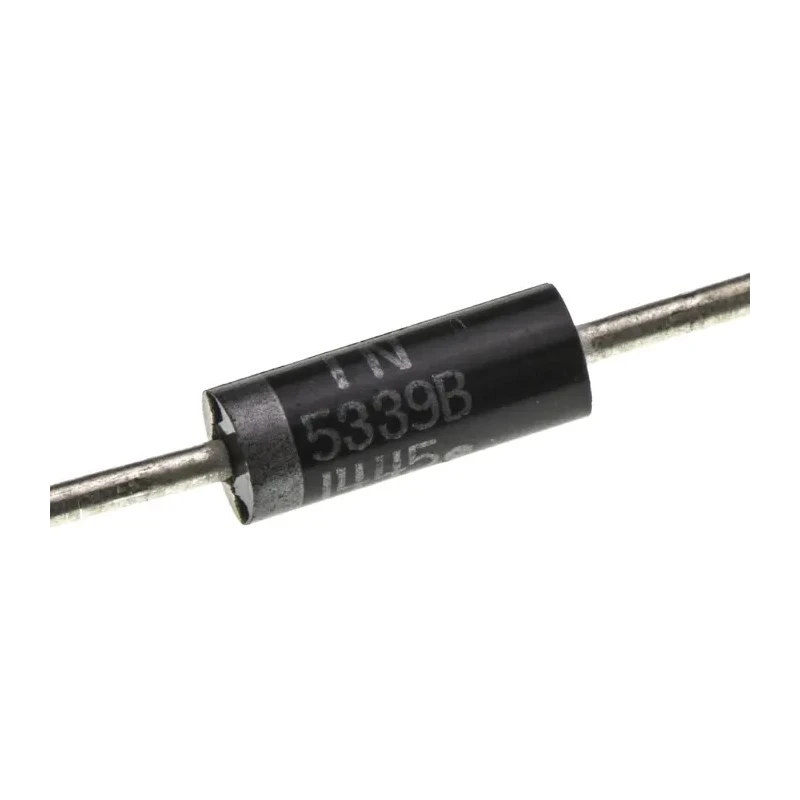

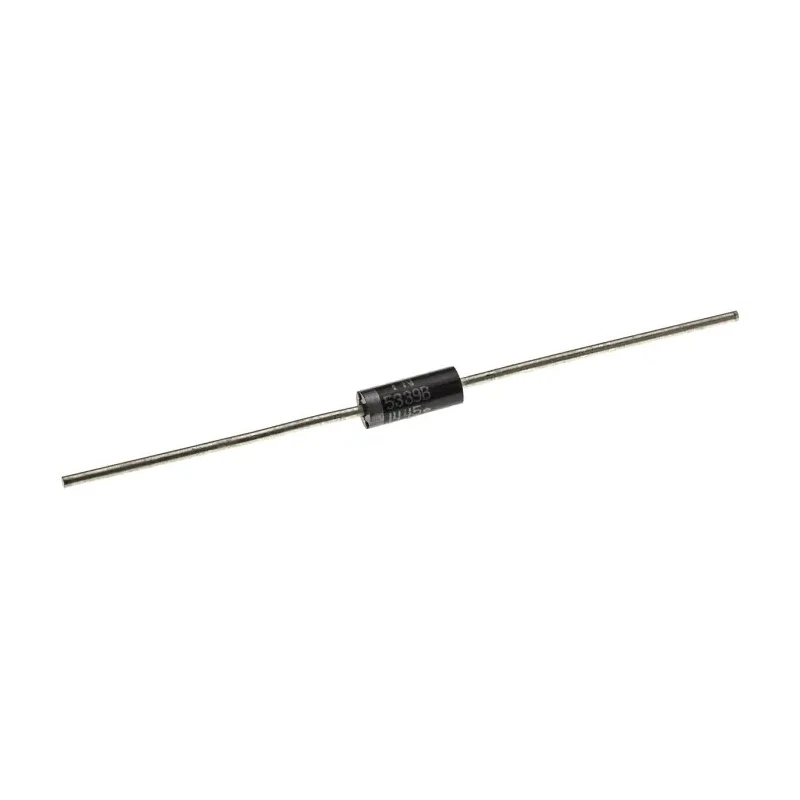

onsemi 5.6 V 5 W Single Zener Diode Through Hole 2-Pin DO-15 1N5339BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5339BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 220mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1Ω |
| ON Semiconductor, 5.6V Zener Diode 5% 5 W Through Hole 2-Pin DO-15Brand | ON Semiconductor |
| onsemi 1, 5.6 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
Key Features
- Axial leaded 2-pin package type DO-15 providing durable mounting.
- Tight voltage regulation with a ±5% tolerance at 220 mA test current.
- Maximum Zener impedance of 1 ohm ensures stable voltage performance.
- Wide operating temperature range from -65°C to 200°C suitable for harsh environments.
- Maximum reverse leakage current of 1 microampere offers excellent leakage control.
- Constructed with silicon-oxide passivated junction and corrosion-resistant external surfaces.
- Surmetic molded package provides void-free thermal protection.
- ESD robustness classified as Class 3 with surge ratings up to 180 W at 8.3 ms.
Product Description
onsemi 1N5339BG is a high-performance 5.6 V Zener diode designed as a voltage regulator with a maximum power dissipation of 5 W. It is housed in a robust through hole axial leaded DO-15 package with 2 pins, engineered for stable voltage regulation and reliable operation in demanding industrial and electronic applications.
This diode offers a tight Zener voltage tolerance of ±5% at a test current of 220 mA, supported by a low maximum Zener impedance of 1 ohm, resulting in excellent voltage stability and low noise. The device can operate efficiently across a broad temperature range from -65°C to 200°C, making it suitable for harsh environmental conditions and demanding power management scenarios.
Featuring a molded Surmetic™ package made from void-free thermosetting plastic, the diode's external surfaces resist corrosion, and its leads are readily solderable for ease of assembly. It also provides a robust surge current rating, capable of handling surges up to 180 W for 8.3 milliseconds, and includes an ESD rating of Class 3, enhancing reliability against electrostatic discharges.
Typical applications for the onsemi 1N5339BG Zener diode include industrial voltage regulation circuits, power management systems, consumer electronic devices, and portable gadgets requiring dependable voltage clamping and regulation. The diode's properties ensure stable operation, protecting circuits from voltage spikes and maintaining consistent voltage levels.
Axial leaded 2-pin DO-15 package for easy through hole mounting. Nominal Zener voltage of 5.6 V with ±5% tolerance. Maximum power dissipation rating of 5 W. Low maximum Zener impedance of 1 ohm ensuring voltage stability.
Wide temperature operating range from -65°C to 200°C. Maximum reverse leakage current of 1 microampere. Robust surge current capacity and Class 3 ESD rating. Silicon-oxide passivated junction and corrosion-resistant surfaces.
The package contains a single Zener diode with two pins; dimensions are approximately 8.89 mm in length and 3.68 mm in height, ideal for through hole PCB designs. Explore the extensive range of Zener Diodes and discrete semiconductor components for electronics and industrial uses across EnvMart categories.
