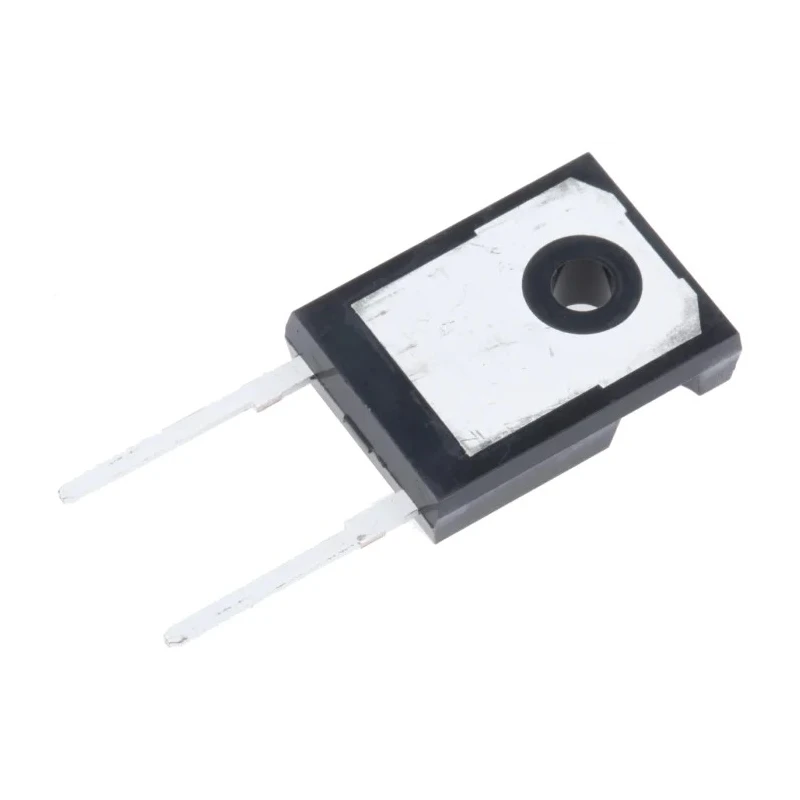

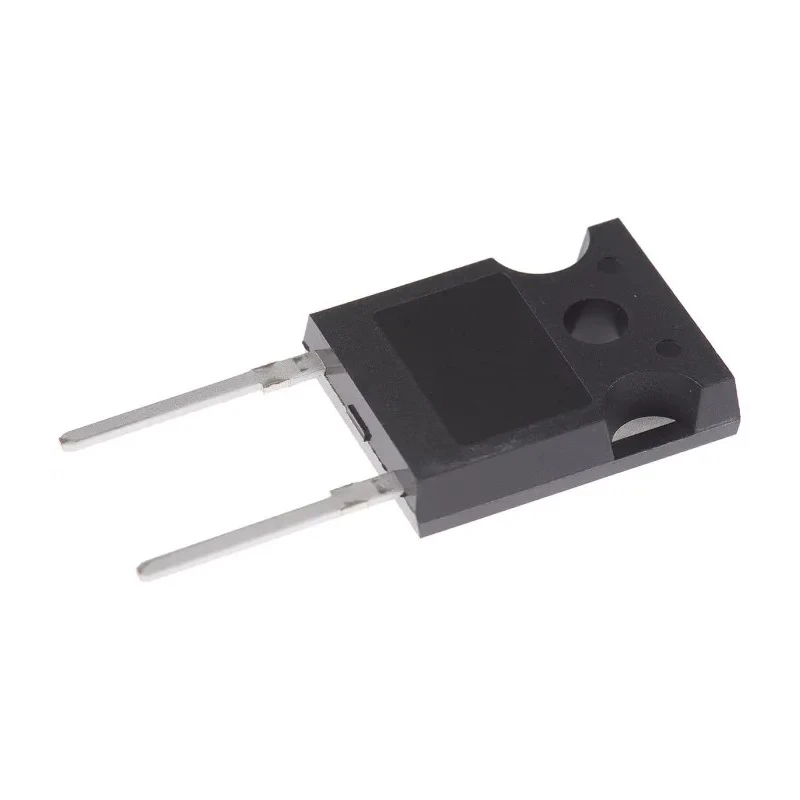

Vishay 600 V 60 A Switching Diode Single 2-Pin TO-247AC Package VS-EPU6006-N3

Vishay VS-EPU6006-N3 is a high-performance switching diode designed for power electronics requiring robust switching capabilities and high current handling. It features a single diode configuration housed in a TO-247AC through-hole package, supporting a maximum continuous forward current of 60 A and a peak repetitive reverse voltage of 600 V.

This diode exhibits a maximum forward voltage of 1.68 V, which ensures efficient power handling and helps reduce thermal dissipation. Its ultrafast peak reverse recovery time of 45 nanoseconds allows for excellent switching speed, making it suitable for applications such as power supplies, inverters, and motor drives.

The component operates reliably across a broad temperature range from -55°C to 175°C, accommodating demanding industrial and automotive environments. It is RoHS compliant, reflecting adherence to environmental standards.

Additional features include the ability to withstand peak non-repetitive surge currents up to 600 A, providing resilience against transient spike conditions. Its low peak reverse current of 50 microamps further optimizes efficiency with minimal leakage.

The diode measures approximately 20.7 mm in height and diameter, with a length of 15.9 mm and width of 5.3 mm, enabling secure mounting on printed circuit boards via through-hole technology.

Common industrial use cases include power rectification, power switching circuits, and voltage regulation modules in commercial, manufacturing, and renewable energy sectors. Single diode configuration for efficient switching applications.

Maximum forward voltage drop of 1.68 V to minimize power loss. Peak reverse recovery time of 45 ns for fast switching performance. Wide operating temperature range from -55°C to 175°C for reliability in harsh environments.

Compact dimensions suitable for through-hole mounting in power electronics circuits. RoHS compliant for environmental safety and regulatory adherence. Handles peak non-repetitive surge current up to 600 A for transient conditions.

Low peak reverse current of 50 μA ensures minimal leakage. Designed for use in power switching, rectification, and power supply applications. Discover a wide selection of semiconductor components and Schottky rectifiers at EnvMart for all your electronic design and production needs.
