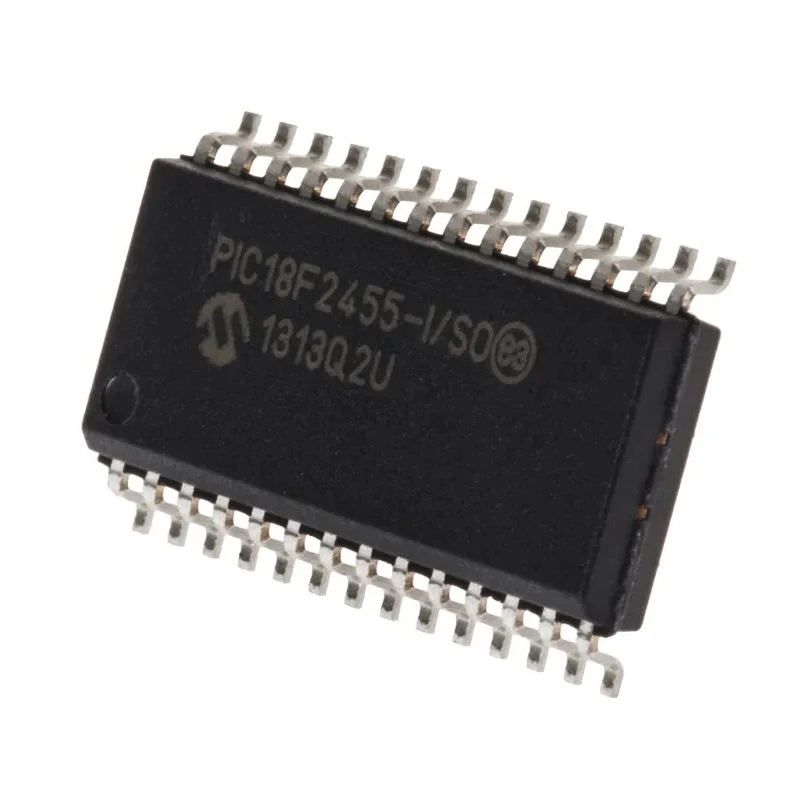

Microchip 8-bit PIC18F2455 Microcontroller, 48 MHz, 24kB FLASH, 28-Pin SOIC PIC18F2455-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 17.9mm |
| Model | PIC18F2455-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC18F2455 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 24kB |
| Maximum Clock Frequency | 48MHz |
| Number of Programmable I/Os | 24 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit PIC device core architecture.
- Features 24 programmable I/O pins for flexible interfacing.
- Includes 2kB RAM for efficient data handling.
- Supports SPI interface for serial communication.
- Runs at maximum supply voltage of 5.5V with minimum 2V.
- Provides 4 timers and 2 analogue comparators for control applications.
- Compact 28-pin SOIC package measuring 17.9mm x 7.5mm x 2.35mm.
- Operating temperature range from -40°C to 85°C ensuring durability.
Product Description
Microchip PIC18F2455-I/SO is a high-performance 8-bit microcontroller designed for embedded system developers requiring reliable and efficient control devices. With a maximum clock frequency of 48 MHz and 24kB of FLASH memory, it effectively supports complex control operations. The device incorporates a PIC core and offers 24 programmable I/O pins, enabling versatile interfacing with various peripherals and sensors.
This microcontroller features a SPI interface facilitating high-speed serial communication, alongside 2kB of RAM and 4 dedicated timers for precise timing functions. Its 2 analogue comparators allow for analog signal processing essential in measurement and control systems.
The device is housed in a compact 28-pin SOIC surface mount package with dimensions of 17.9 mm length, 7.5 mm width, and 2.35 mm height, making it suitable for space-constrained PCB designs. Operating within a broad voltage range of 2V to 5.5V and a temperature range of -40°C to 85°C, it assures operational stability even under demanding industrial applications.
Program memory employs FLASH technology with a RISC instruction set architecture, optimizing execution speed and efficiency. The MCU complies with RoHS standards, confirming its suitability for environmentally conscious designs.
Operates with an 8-bit PIC device core architecture. Features 24 programmable I/O pins for flexible interfacing. Includes 2kB RAM for efficient data handling. Supports SPI interface for serial communication. Runs at maximum supply voltage of 5.5V with minimum 2V.
Provides 4 timers and 2 analogue comparators for control applications. Compact 28-pin SOIC package measuring 17.9mm x 7.5mm x 2.35mm. Operating temperature range from -40°C to 85°C ensuring durability. Utilizes FLASH type program memory with RISC instruction set architecture.
This microcontroller is ideal for use in industrial control, consumer electronics, automotive electronics, and communications systems. It enables developers to implement robust microcontroller solutions with high processing speed and low power consumption. For related products and additional microcontroller options, explore the Microcontrollers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 48 MHz.
It features 24kB of FLASH memory for program storage.
The operating temperature range is from -40°C to 85°C.
This model includes 24 programmable I/O pins for flexible interfacing.
It supports an SPI interface for serial communication.
The dimensions are 17.9 mm in length, 7.5 mm in width, and 2.35 mm in height.
The minimum supply voltage is 2V, and the maximum is 5.5V.
It includes 2kB of RAM for efficient data handling.
This microcontroller provides 4 timers for control applications.
Yes, it complies with RoHS standards, confirming its suitability for environmentally conscious designs.
It comes in a compact 28-pin SOIC package.
The instruction set architecture is RISC, optimizing execution speed and efficiency.
