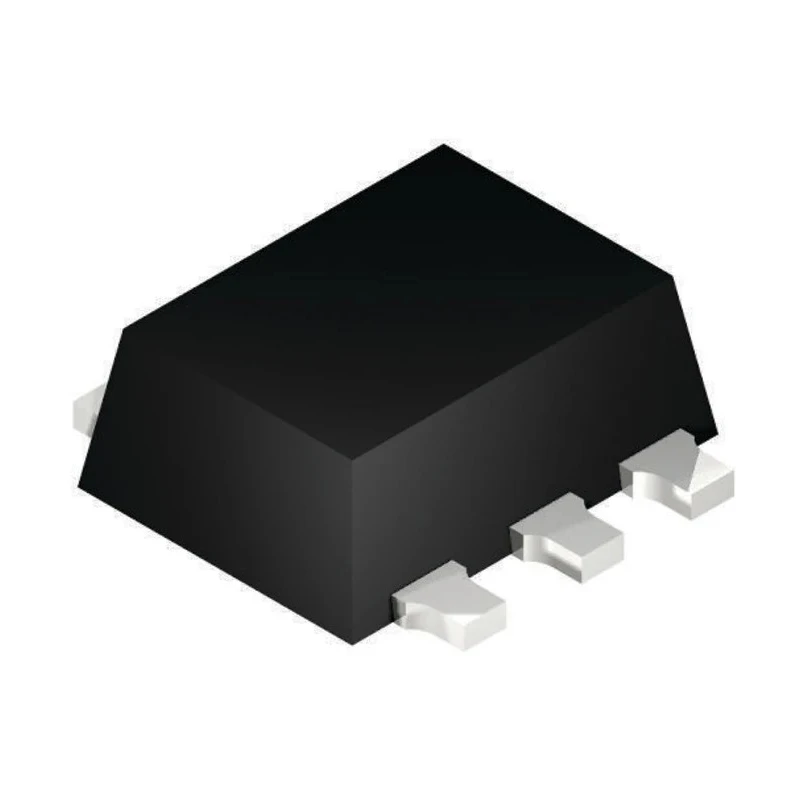

Nexperia Digital Transistor 100 mA NPN + PNP 50 V 6-Pin SOT-666 PEMD10,115

The Nexperia PEMD10,115 is a high-performance digital transistor designed for use in electronic circuits requiring integrated resistor-equipped bipolar transistors. It incorporates both NPN and PNP transistors with dual digital transistor capability, packaged conveniently in a 6-pin SOT-666 surface mount package.

With a maximum DC collector current rating of 100 mA and maximum collector emitter voltage of 50 V, this component is ideal for switching and amplification tasks in semiconductor discrete applications. The device supports isolated transistor configuration and includes integrated bias resistors, enabling direct interfacing with digital logic without additional components.

The transistor provides a maximum power dissipation of 200 mW and a high transition frequency of 230 MHz, facilitating swift switching cycles and efficient operation in high-frequency environments. Its operational temperature range extends from -65°C to 150°C, making it suitable for various industrial and automotive applications.

Physical dimensions are compact and suitable for high-density PCB layouts, with a length of 1.7 mm, width of 1.7 mm, and a height of 0.6 mm. The device is RoHS compliant and has passed AEC-Q101 automotive standard tests, validating its robustness and reliability for demanding environments.

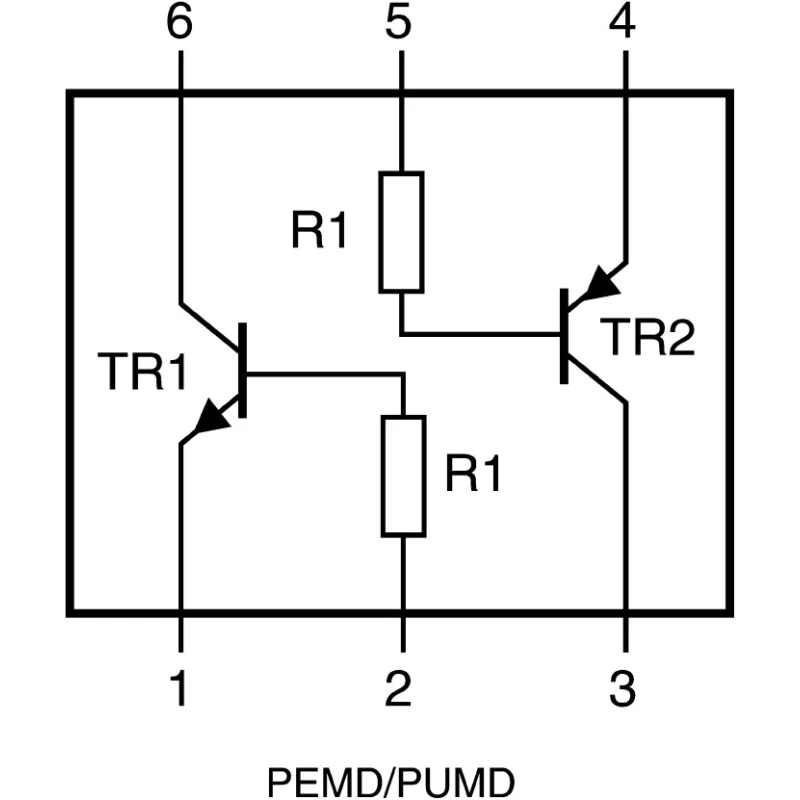

Designed for surface mount technology with a compact SOT-666 6-pin footprint. Dual resistor digital transistor with NPN + PNP configuration for flexible circuit design. Enables direct drive from digital signals due to integrated resistors.

Wide temperature tolerance and power dissipation ensure durable performance. Compliant with key industry standards including RoHS and AEC-Q101. Ideal for automotive, industrial, and general semiconductor discrete applications.
