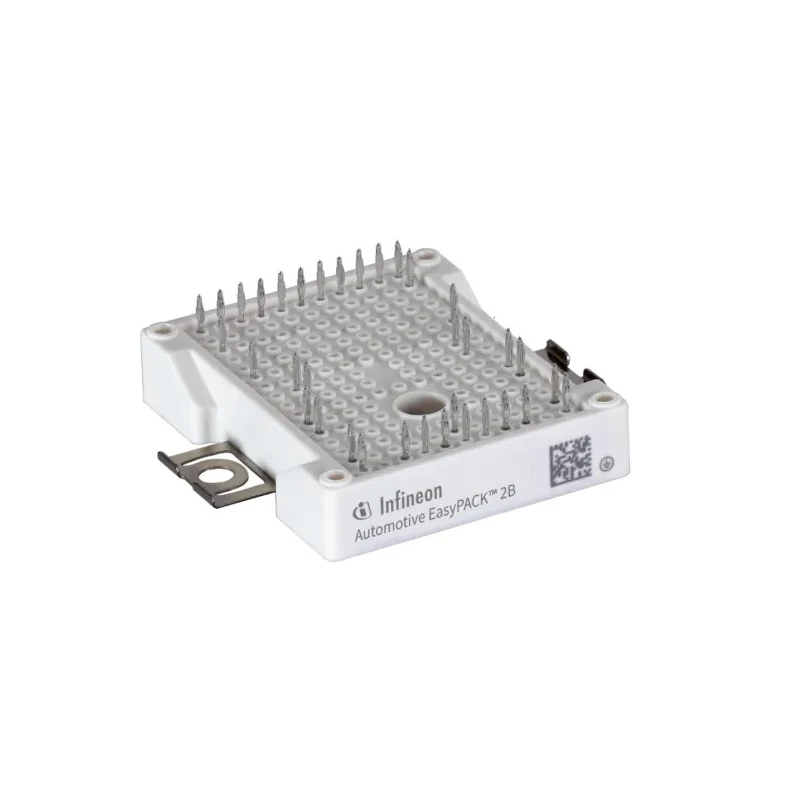

Infineon Half Bridge IGBT Module 300A 750V AG-EASY2B PCB Mount FF300R08W2P2B11ABOMA1

Name: Infineon Half Bridge IGBT Module 300A 750V AG-EASY2B PCB Mount FF300R08W2P2B11ABOMA1
Brand: Infineon
SKU: 193491
Price: 98.23 USD
Availability: InStock



Category IGBT Module Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	16.4mm
Length	51mm
Model	FF300R08W2P2B11ABOMA1
Mount Type	PCB
Configuration	Half Bridge
Maximum Operating Temperature	150°C
Package Type	AG-EASY2B
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, UL 94 VO module frame
Maximum Continuous Collector Current Ic	300A
Maximum Collector Emitter Voltage Vceo	750V
Maximum Collector Emitter Saturation Voltage VceSAT	1.18V
Automotive Standard	AQG 324
Maximum Power Dissipation Pd	20mW
Maximum Gate Emitter Voltage VGEO	±20 V

Key Features

The module features a compact AG-EASY2B package suitable for PCB mounting.
Maximum power dissipation is 20 milliwatts ensuring efficient thermal management.
It supports a maximum gate-emitter voltage of ±20 V providing robust control features.
The maximum collector-emitter saturation voltage is 1.18 V ensuring low conduction losses.
Operating temperature ranges from -40°C to 150°C for reliable performance in harsh environments.
The device complies with RoHS and UL 94 VO standards for safety and environmental care.
Automotive standard AQG 324 qualification guarantees suitability for automotive applications.
The module length is 51 mm and height is 16.4 mm for compact integration.

Product Description

Infineon FF300R08W2P2B11ABOMA1 is a Half Bridge IGBT Module designed to deliver high current and voltage handling capabilities in a compact AG-EASY2B package with PCB mounting. It supports a maximum continuous collector current of 300 A and withstands collector-emitter voltages up to 750 V, making it suitable for demanding power electronics applications.

Featuring the Benchmark EDT2 IGBT generation, this module offers robustness with high short circuit ruggedness and thermal efficiency with a maximum power dissipation of 20 milliwatts. The maximum gate-emitter voltage rating of ±20 V provides reliable gate control, while the low collector-emitter saturation voltage of 1.18 V contributes to reduced power losses.

The operational temperature range extends from -40°C to 150°C, ensuring excellent performance in industrial, automotive, and harsh environmental conditions. The device meets stringent RoHS compliance and UL 94 VO module frame standards, ensuring safety and environmental responsibility. Additionally, it conforms to the automotive AQG 324 standard, validating its use in automotive inverter systems.

Its compact dimensions of 51 mm in length and 16.4 mm in height allow for space-saving designs in power modules. The half bridge configuration facilitates integration into main inverter circuits, particularly in hybrid and electric vehicles. This module enables easy system assembly and high reliability for industrial, automotive, and power conversion applications.

The module offers a compact and flexible design for efficient power inverter circuits. High current density and durability ensure reliable operation under harsh conditions. Automotive-certified product suitable for electric vehicle inverter systems.

Compliant with standards for environmental safety and electrical safety. Ideal for use in industrial power electronics, electric vehicles, and renewable energy systems. Discover this Infineon Half Bridge IGBT Module for advanced power electronics solutions, available at EnvMart for industrial and automotive applications.
