Craig & Derricott EMSH Series Pull Release Emergency Stop Push Button Surface Mount SPDT IP65 EMSH/P/F1/MR/CO

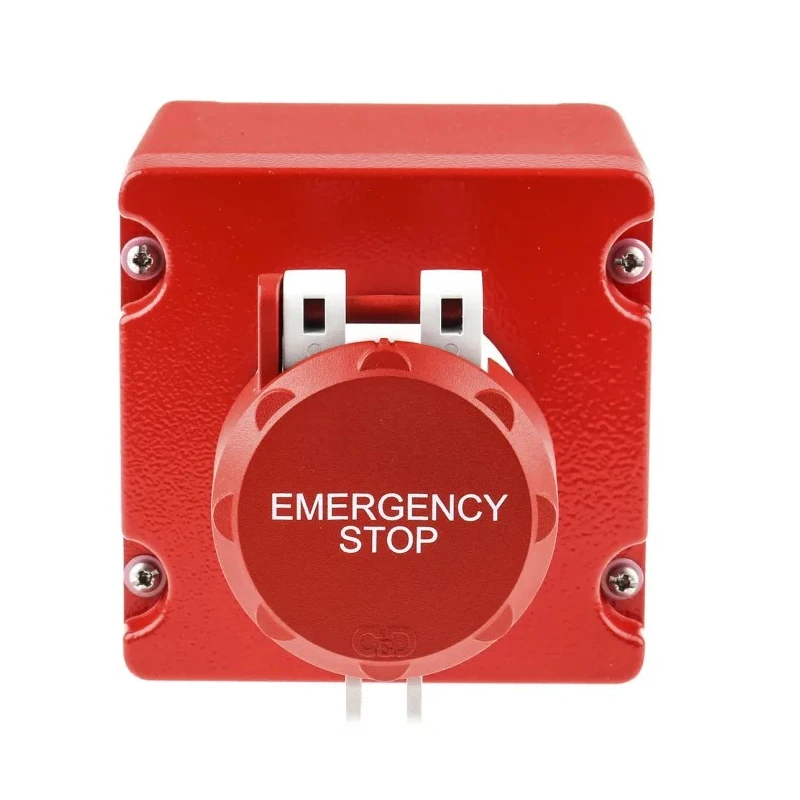

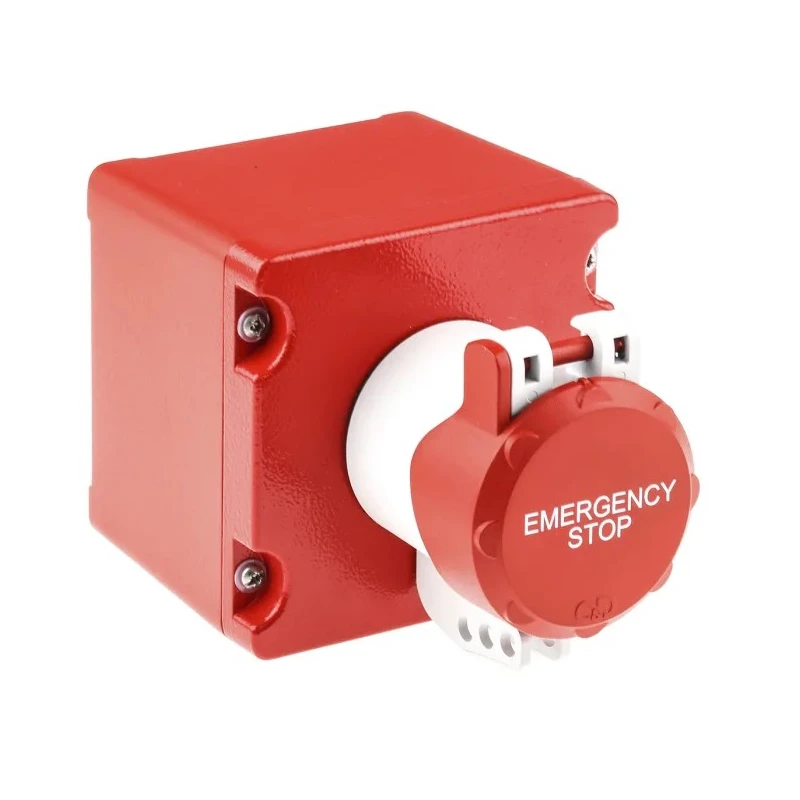

Craig & Derricott EMSH/P/F1/MR/CO is a high-quality pull release emergency stop push button designed for surface mount applications. It features a red mushroom style head with a 38mm diameter that provides clear emergency activation. The push button mechanism uses a pull-to-release actuation method, ensuring the device stays locked until all padlocks securing it are removed, preventing accidental resets.

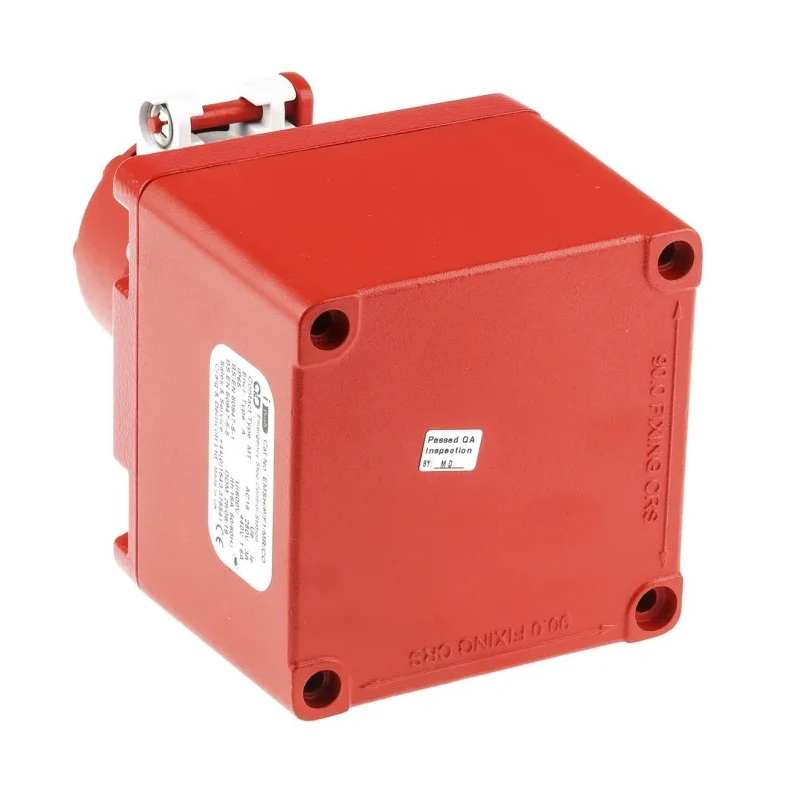

The housing is constructed from durable die-cast aluminium, enhancing its industrial robustness, while the push button head is made of plastic. This emergency stop button carries a contact current rating of 16A and supports contact voltages up to 440V ac/dc, making it suitable for demanding electrical environments. Cable entry is provided via an M20 fitting for secure wiring installation.

Compliant with IEC/EN60204, BS EN 60947-5-1, BS EN ISO 13850, IEC 60947-5-1, and IEC 60947-5-5 standards, this emergency stop push button ensures reliable safety and performance adherence in industrial, manufacturing, and automation uses. It includes a SPDT contact configuration with 1NO and 1NC contacts to suit diverse control circuit needs.

The device’s IP65 rating confirms excellent resistance to dust and water, ideal for harsh environments. The non-illuminated mushroom head is clearly visible in red color, meeting safety visibility requirements inside control panels or machinery.

Features a red mushroom style head with 38mm diameter for quick identification. Constructed with a robust die-cast aluminium housing and plastic push button material. Offers pull-to-release actuation method ensuring safe reset after padlock removal.

Electrical ratings include 16A contact current at 250V and 440V ac/dc contact voltage. Complies with IEC and BS EN safety standards for reliable emergency stop functionality. Surface mount design with M20 cable entry facilitates easy installation.

Includes 1NO and 1NC switch configuration for versatile switching applications. Rated IP65 for high protection against dust and water ingress.

This Emergency Stop Push Button is widely used in industrial automation, manufacturing plants, electrical control panels, HVAC systems, and other safety-critical applications. Its durable build and compliance with international standards ensure operator safety and machine protection during emergency shutdowns.
