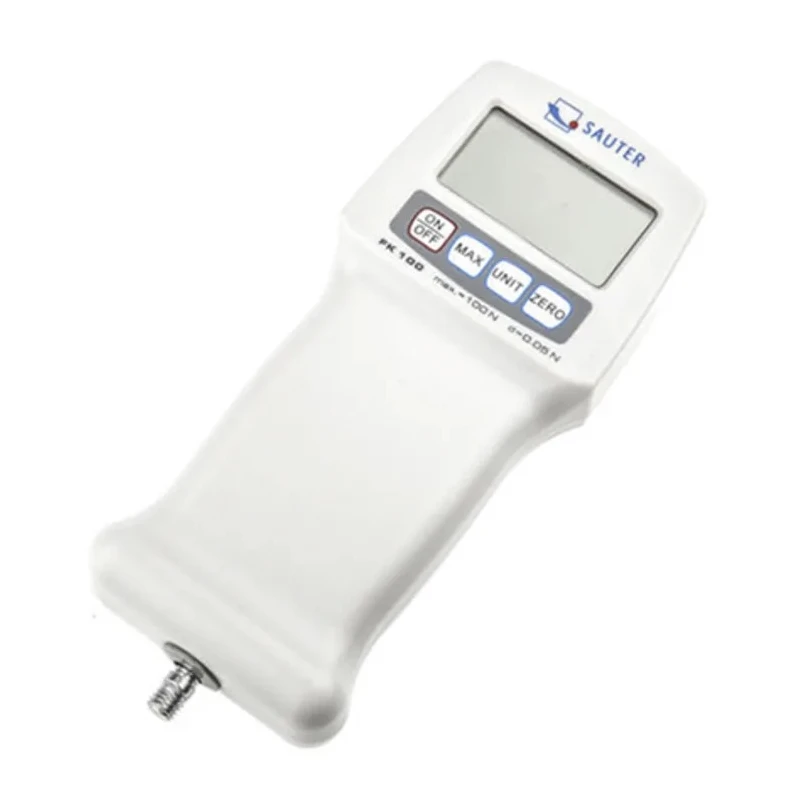

Sauter Digital Force Gauge 1000 Hz Sampling Rate, Range FK, Resolution 0.05 N, Model FK 100

Free Delivery in India | Lowest Global Shipping Charges

Sauter Digital Force Gauge 1000 Hz Sampling Rate, Range FK, Resolution 0.05 N, Model FK 100

Name: Sauter Digital Force Gauge 1000 Hz Sampling Rate, Range FK, Resolution 0.05 N, Model FK 100
Brand: Sauter
SKU: 125396
Price: 576.23 USD
Availability: InStock



Category Force Gauge Brand Sauter Condition New

Specifications

Country of Origin	China
Resolution	0.05 N
Accuracy	±0.5 %
Display Type	LCD
Brand	Sauter
Battery type	AA
Height	35mm
Length	195mm
Model	FK 100
Gross Weight	600g
Width	84mm
Sampling rate	1000Hz
Series	FK
Maximum Operating Temperature	30°C
Minimum Operating Temperature	10°C
Plug Type	EU, 3-Pin (Global), Type A
Standards/Approvals	ISO
Units Measured	kg, lb, N, oz
Sauter FA 100 Force Gauge, Range	FA, Resolution: 0.5 NBrand: Sauter
Sauter FK 100 Force Gauge 1000 Hz, Range	FK, Resolution: 0.05 N

Key Features

Features a rotatable LCD display with measurement units in N, kg, lb, and oz.
Offers ±0.5% measurement accuracy with overload protection up to 200% of the final value.
Includes peak hold and track functions for capturing max and continuous force measurements.
Compatible with all Sauter test stands for versatile industrial testing.
Operates within temperature range of 10°C to 30°C for stable readings.
Powered by AA batteries with EU, 3-pin Type A plug charger supplied.
Compact design measuring 195mm length, 84mm width, and 35mm height, weighing 600 g.
Conforms to ISO standards ensuring quality and reliability.

Product Description

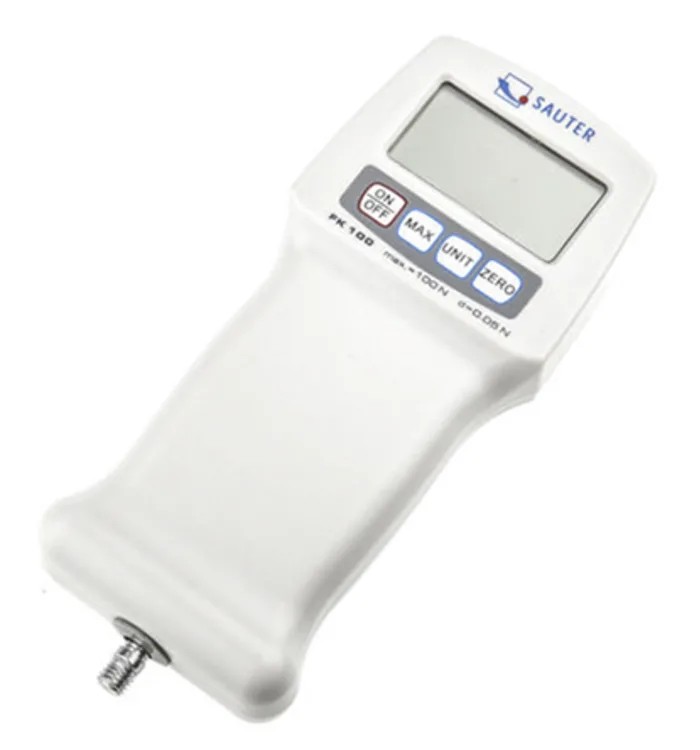

The Sauter FK 100 is a high-precision digital force gauge featuring a 1000 Hz sampling rate and a fine resolution of 0.05 N, suitable for accurate measurement of tensile and compressive forces in industrial, laboratory, and quality control environments.

This device offers an accuracy of ±0.5% and includes overload protection rated at 200% of the maximum measurement value to safeguard the instrument during use. The LCD display is rotatable through 180°, providing flexible viewing angles and displays measurements in multiple units including Newtons (N), kilograms (kg), pounds (lb), and ounces (oz).

The unit also incorporates peak hold functionality to record the maximum force exerted, as well as a track function for continuous force monitoring, making it ideal for dynamic force testing applications. It is compatible with all Sauter test stands, enhancing its utility in various industrial testing setups.

Designed for convenient operation, the FK 100 operates within an ambient temperature range of 10°C to 30°C and is powered by AA batteries. It is supplied with a Euro-plug charger and six standard mountings including a hook, pressure plate, pressure peaks, and a 90 mm extension, supporting diverse testing requirements.

The compact dimensions of 195 mm (length), 84 mm (width), and 35 mm (height), along with a lightweight design of 600 grams, contribute to the gauge's portability and ease of handling.

Manufactured in China, this force gauge complies with ISO standards, ensuring precision and reliability in force measurement tasks commonly required across automotive, manufacturing, laboratory, and quality assurance sectors.

Features a rotatable LCD display with multiple measurement units. High accuracy with overload protection for durability. Peak hold and continuous tracking for comprehensive analysis. Compact size and lightweight for portability.

Supplied with various mounting accessories for flexible testing. Battery powered with included Euro-plug charger. Explore the full range of Force Gauges and testing instruments at EnvMart for your industrial and laboratory measurement needs.
