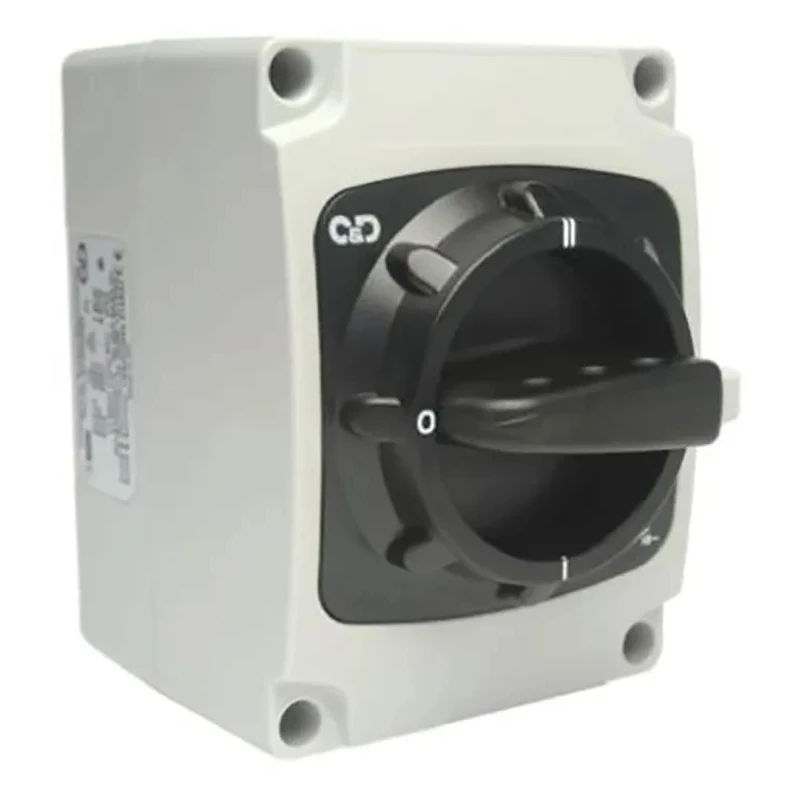

Craig & Derricott 3-Pole Base Isolator Switch IP65, 20A, 63 kW
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Craig & Derricott |
| Length | 135mm |
| Model | IP65 |
| Depth | 95mm |
| IP Rating | IP65 |
| Width | 100mm |
| Mount Type | Base |
| Series | SCODP |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -5°C |
| Switching Current | 20A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Black |
| Number of Poles | 3 |
| Standards/Approvals | EN/IEC |
| Switching AC Voltage | 690V ac |
| Switching Power | 63kW |
Key Features
- Designed for 3-pole electrical phase applications with a base mount type.
- Constructed with a high-impact polycarbonate enclosure for durability.
- Equipped with a black handle and suitable for up to 3 padlocks in off position.
- Features auxiliary contacts and screw terminal type for secure connections.
- Operates within a temperature range of -5°C to 40°C.
- Complies with IEC/BS EN 60947-3 and IEC/BS EN 60947-5-1 standards.
- Switching AC voltage rating up to 690V ac for industrial use.
- Compact dimensions of 135mm length, 100mm width, and 95mm depth.
Product Description
Craig & Derricott SCODP203 3-Pole Base Isolator Switch is a robust electrical switch disconnector designed to provide safe isolation for three-phase power systems with a 20A switching current and 63 kW switching power. It features an IP65 rated high impact polycarbonate enclosure, ensuring protection against dust and water ingress, suitable for industrial and commercial electrical applications.
The switch has a base mount type design with a black handle that facilitates easy operation and can accommodate up to three padlocks in the off position, enhancing safety during maintenance activities. Auxiliary contacts are integrated, allowing additional circuit functions and monitoring.
Featuring screw type terminals for secure wiring connections, the isolator operates reliably within -5°C to 40°C ambient temperatures. Compliance with IEC and BS EN standards assures its quality and suitability for demanding electrical environments.

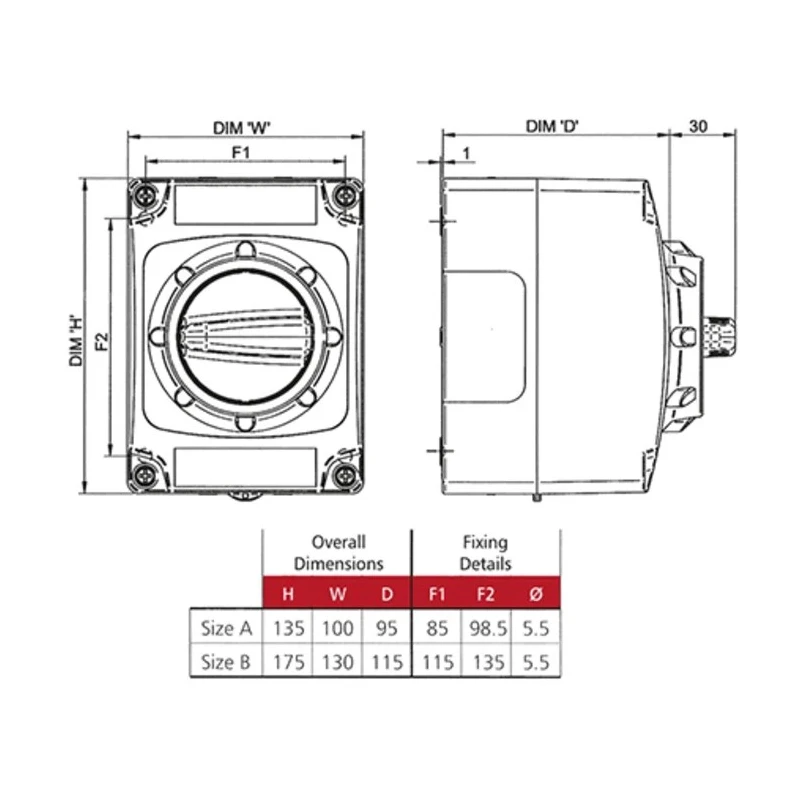

The unit's compact dimensions (135mm length, 100mm width, and 95mm depth) enable convenient installation in various electrical panels. It supports a switching AC voltage of up to 690V ac and is compatible with three electrical poles, catering to various industrial, manufacturing, and commercial electrical isolation requirements.
IP65 Ingress protection with polycarbonate enclosure for enhanced durability. Suitable for 3-pole connection with a 20A switching current capacity. Includes auxiliary contacts for additional control functions. Padlock compatible for secure deactivation lockout.
Compliant with IEC/BS EN 60947-3 and IEC/BS EN 60947-5-1 standards. Compact and robust design for ease of installation in electrical systems. Operates efficiently within -5°C to 40°C temperature range.
This isolator switch is ideal for electrical system safety, maintenance, and protection in industrial facilities, manufacturing plants, commercial buildings, and water treatment systems. To explore more products in the Isolator Switch category, continue browsing EnvMart for the best selection of quality electrical switching devices.
