Samtec 9-Contact 1 Row 2.54 mm Pitch Straight Through Hole PCB Socket SSA-109-S-T

Free Delivery in India | Lowest Global Shipping Charges

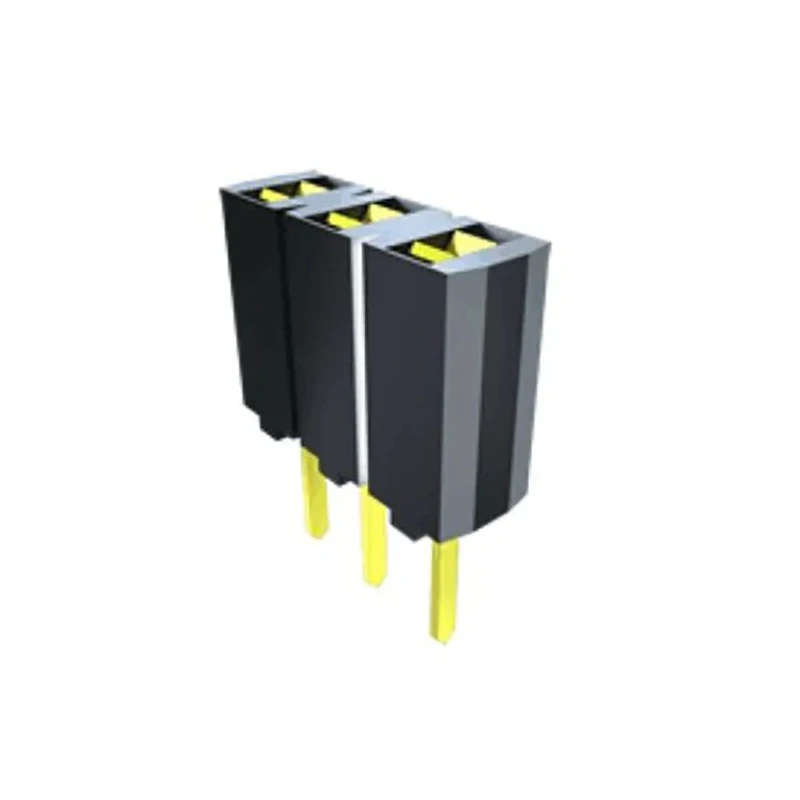

Samtec 9-Contact 1 Row 2.54 mm Pitch Straight Through Hole PCB Socket SSA-109-S-T

Name: Samtec 9-Contact 1 Row 2.54 mm Pitch Straight Through Hole PCB Socket SSA-109-S-T
Brand: Samtec
SKU: 166724
Price: 1.22 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Model	SSA-109-S-T
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Phosphor Bronze
Series	SSA
Termination Type	Through Hole
Maximum Operating Temperature	105°C
Sub Type	Cost-Effective Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	9
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Constructed with polyester housing material offering UL 94V-O flammability rating.
Features phosphor bronze female contacts plated with matte tin for reliable connectivity.
Designed for through hole mounting with a straight orientation for PCB applications.
Operates within a temperature range of -55°C to 105°C ensuring durability in various environments.
Offers voltage rating of 1000 VRMS and insulation resistance of 5000 MW minimum for safety and performance.
Complies with RoHS standards ensuring environmental compliance.
Cost-effective socket strip ideal for industrial, electronic manufacturing, and laboratory PCB assemblies.

Product Description

Samtec SSA-109-S-T is a premium straight through hole PCB socket designed for effective board-to-board connections. This 9-contact single row socket includes a 2.54 mm pitch, making it ideal for standard electronic component layouts.

The socket housing is made from black polyester (PET) material rated UL 94V-O for flame retardance, ensuring flame safety compliance for industrial and laboratory applications.

Each female contact is made of high-quality phosphor bronze and finished with matte tin plating to provide excellent contact reliability and corrosion resistance. The through hole termination method and straight orientation simplify mounting on printed circuit boards.

The operating temperature range from -55°C to 105°C allows this component to perform reliably in harsh industrial environments, including manufacturing and HVAC control systems.

Electrical specifications include a voltage rating of 1000 VRMS and insulation resistance rated at a minimum of 5000 megaohms, which ensures safe and stable electrical performance.

Constructed with polyester housing material offering UL 94V-O flammability rating. Features phosphor bronze female contacts plated with matte tin for reliable connectivity. Designed for through hole mounting with a straight orientation for PCB applications.

Operates within a temperature range of -55°C to 105°C ensuring durability in various environments. Offers voltage rating of 1000 VRMS and insulation resistance of 5000 MW minimum for safety and performance. Complies with RoHS standards ensuring environmental compliance.

Cost-effective socket strip ideal for industrial, electronic manufacturing, and laboratory PCB assemblies.

The Samtec SSA series PCB Sockets are widely used in electronics manufacturing, repair, and prototyping environments requiring sturdy, dependable connectors. The product supports robust board stacking and modular design approaches in commercial and industrial electronics.
