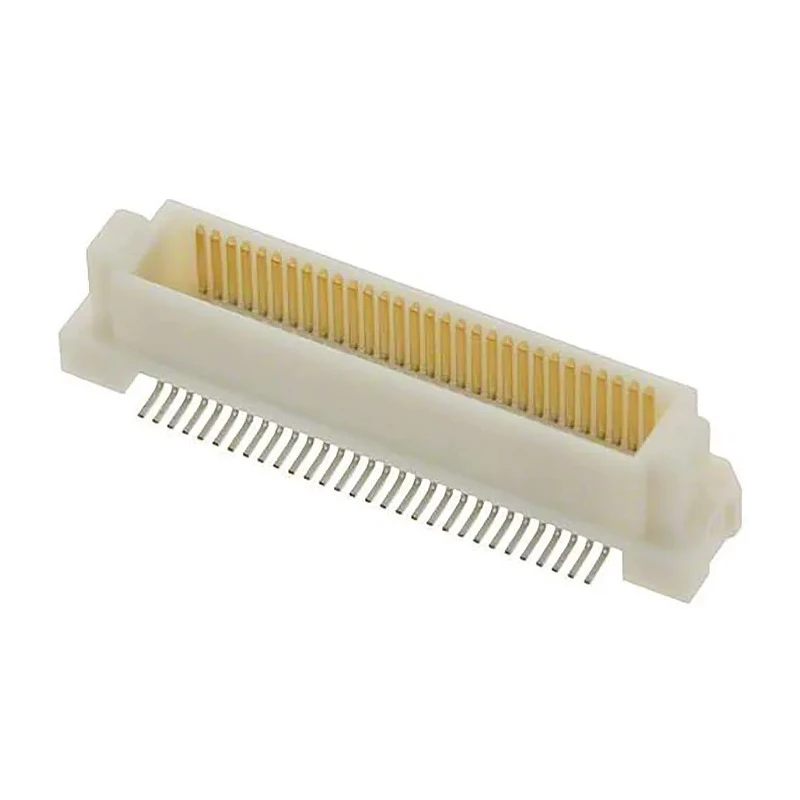

Hirose FunctionMAX FX8C Series Straight Surface PCB Header 60 Contact 0.6 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8C |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Supports a current of 400 mA for reliable performance.
- Constructed with polyphenylene sulphide housing for durability.
- Phosphor bronze contacts plated with gold to ensure optimal conductivity.
- Surface mount type with a straight orientation for easy PCB integration.
- Operates within a temperature range of -55°C to 85°C for versatile industrial use.
- Designed for high-speed transmission up to 3.125 Gbit/s enhancing signal integrity.
- Features mating guide ribs allowing +/- 0.6 mm misalignment for easier mating.
- Ideal for industrial equipment, servers, medical devices, and POS terminals.
Product Description
Hirose FX8C-60P-SV2(91) PCB Header is a high-performance electronic component designed for efficient board-to-board communication in demanding industrial environments. This 60-contact, 0.6 mm pitch connector features a shrouded, 2-row straight surface mount configuration, ensuring secure and reliable connections with excellent signal integrity.
The housing is made from robust polyphenylene sulphide, and the contacts, crafted from phosphor bronze with gold plating, provide superior conductivity and corrosion resistance. Operating safely between -55°C and 85°C, this connector supports a current rating of 400 mA and a voltage of 100 V, suitable for a variety of electronic applications.
FunctionMAX FX8C connectors boast a high-speed transmission capability of up to 3.125 Gbit/s, supported by optimized spring deflection contacts that increase reliability and electrical continuity with a 2 mm wiping distance.
The built-in mating guide ribs enable a self-alignment tolerance of +/- 0.6 mm, facilitating easier mating and design flexibility, while guide posts help prevent misinsertion on the PCB.
Supports a current of 400 mA for reliable performance. Constructed with polyphenylene sulphide housing for durability. Phosphor bronze contacts plated with gold to ensure optimal conductivity. Surface mount type with a straight orientation for easy PCB integration.
Operates within a temperature range of -55°C to 85°C for versatile industrial use. Designed for high-speed transmission up to 3.125 Gbit/s enhancing signal integrity. Features mating guide ribs allowing +/- 0.6 mm misalignment for easier mating.
Ideal for industrial equipment, servers, medical devices, and POS terminals.
This product is widely used in industries such as electronics manufacturing, server and broadcast equipment, medical device production, and point-of-sale terminals where secure and performance-driven PCB connections are critical.
Within the FunctionMAX product line, this connector is part of a range developed to meet evolving technological demands, ensuring high-speed data transmission with resistance to noise and superior mechanical reliability.
Explore more high-quality PCB connectors and electronics components at EnvMart to enhance your industrial or commercial projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 400 mA, making it suitable for various electronic applications.
The maximum operating temperature for this connector is 85°C, allowing it to function effectively in high-temperature environments.
The pitch size of this connector is 0.6 mm, which is essential for ensuring proper alignment and connection on PCBs.
This model features 60 contacts, facilitating multiple connections in a compact design.
The housing is made from polyphenylene sulphide, while the contacts are crafted from phosphor bronze and plated with gold for optimal conductivity.
It utilizes a solder termination type, ensuring a secure connection to the PCB.
The voltage rating for this connector is 100 V, suitable for various electronic applications.
This connector has a straight orientation, which simplifies PCB integration.
It operates within a temperature range of -55°C to 85°C, making it versatile for industrial use.
This model is designed as a board-to-board connector system, facilitating effective communication between PCBs.
Yes, it features mating guide ribs that allow for a self-alignment tolerance of +/- 0.6 mm, making mating easier and more flexible in design.
It is ideal for use in industrial equipment, servers, medical devices, and point-of-sale terminals where secure PCB connections are critical.
