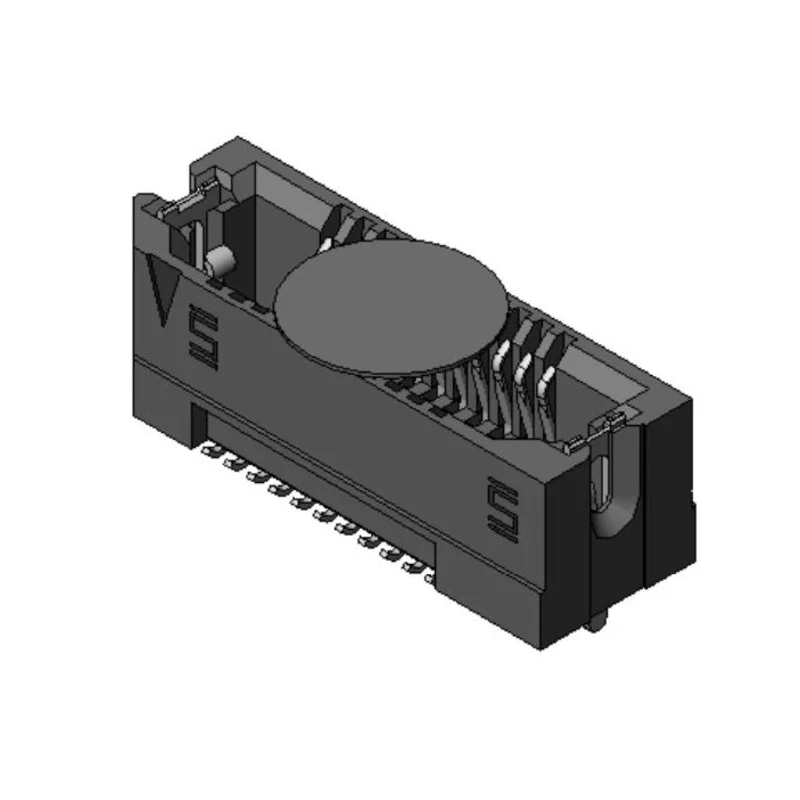

Samtec ASP Series Right Angle Surface PCB Socket, 22-Contact, 2 Row, 0.8 mm Pitch, Solder Termination ASP-137969-01

Free Delivery in India | Lowest Global Shipping Charges

Samtec ASP Series Right Angle Surface PCB Socket, 22-Contact, 2 Row, 0.8 mm Pitch, Solder Termination ASP-137969-01

Name: Samtec ASP Series Right Angle Surface PCB Socket, 22-Contact, 2 Row, 0.8 mm Pitch, Solder Termination ASP-137969-01
Brand: Samtec
SKU: 154359
Price: 7.76 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	339V
Brand	Samtec
Orientation	Right Angle
Current	2.7A
Model	ASP-137969-01
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	ASP
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	22
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	10mm
Row Pitch	1.27mm

Key Features

Constructed with liquid crystal polymer housing for durability.
Supports a current rating of 2.7A to ensure efficient electrical performance.
Features gold over nickel plated beryllium copper alloy contacts for reliable connectivity.
Right angle orientation with surface mount type for versatile PCB configurations.
Operating temperature range from -55°C to 125°C, suitable for various environments.
Stacking height of 10 mm accommodates compact PCB stacking.
Rated for voltage up to 339V, ensuring safe operation.
Compliant with RoHS standards for environmentally responsible manufacturing.

Product Description

The Samtec ASP-137969-01 Right Angle Surface PCB Socket is engineered for reliable board-to-board connection in demanding electronic applications. Featuring 22 female contacts arranged in 2 rows with a fine 0.8 mm pitch, this socket supports efficient and stable signal transmission.

Its liquid crystal polymer housing offers robust mechanical strength and thermal stability across an operating range from -55°C to 125°C. The gold over nickel plating on beryllium copper alloy contacts provides excellent conductivity and corrosion resistance, ensuring long-term reliability.

Designed for surface mount technology, the socket's right angle orientation facilitates compact and efficient PCB layouts, enhancing space utilization. Supporting a current capacity of 2.7A and voltage rating of 339V, it meets rigorous electrical requirements common in industrial, telecommunications, and computing sectors.

The stacking height of 10 mm allows flexible PCB stacking configurations, while the 1.27 mm row pitch ensures precise alignment and compatibility with other connectors. Manufactured in the United States under stringent quality control, this socket complies with RoHS directives, making it suitable for environmentally conscious designs.

Liquid crystal polymer housing enhances durability. 2.7A current rating for consistent electrical performance. Gold over nickel plated beryllium copper alloy contacts for high conductivity. Right angle surface mount design for effective PCB assembly.

Wide operating temperature range of -55°C to 125°C. Stacking height of 10 mm supports flexible PCB arrangements. Voltage rating up to 339V for high safety standards. RoHS compliant ensuring environmental safety. 22 contacts in 2 rows with precise 0.8 mm pitch and 1.27 mm row pitch.

Manufactured in the United States with strict quality assurance.

This Samtec PCB socket is ideal for industrial, telecommunications, computing, and other high-performance electronic applications requiring durable, compact board-to-board connections. For more options, explore our full range of PCB Sockets at EnvMart.
