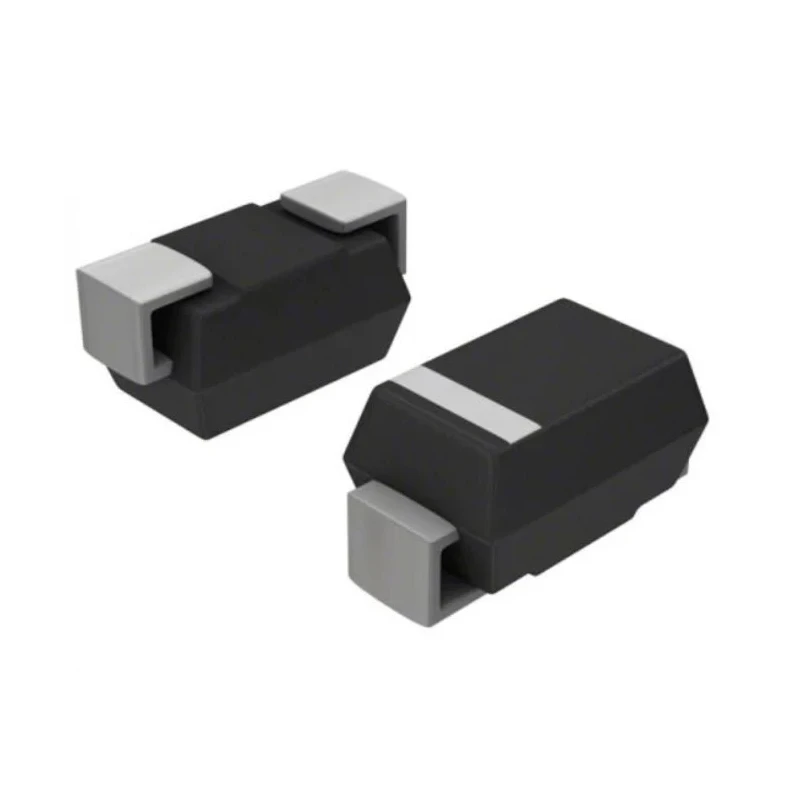

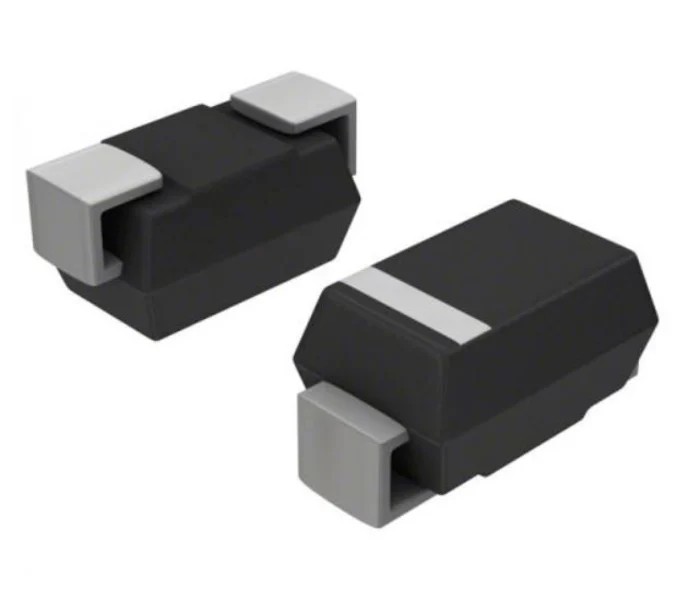

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ26A-E3/52

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ26A-E3/52

Name: Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ26A-E3/52
Brand: Vishay
SKU: 198265
Price: 0.23 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.24mm
Length	4.7mm
Model	SMBJ26A-E3/52
Width	3.8mm
Mount Type	Surface
Series	TRANSZORB TVS
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	42.1V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	28.9V
Maximum Reverse Stand-off Voltage Vwm	26V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	14.3A
Maximum Reverse Leakage Current	1μA

Key Features

Provides 600 W peak pulse power dissipation.
Uni-directional diode configuration ideal for sensitive electronics.
Surface mount DO-214 package with 2 pins.
Low profile with fast response time and low surge resistance.
Capable of operating from -55°C to 150°C temperature range.
AEC-Q101 automotive standard compliant for enhanced reliability.
Excellent clamping voltage at 42.1 V for effective transient suppression.
Glass passivated chip junction for durability.

Product Description

Vishay SMBJ26A-E3/52 uni-directional 1-element TVS diode is designed to protect sensitive electronic circuits by suppressing voltage transients caused by inductive load switching and lightning.

This diode features a surface mount DO-214 package with a low profile design, allowing easy automated placement on circuit boards.

It supports a peak pulse power dissipation of 600 W with a 10/1000 µs waveform and has a maximum reverse stand-off voltage of 26 V, clamping voltage of 42.1 V, and peak pulse current of 14.3 A, making it highly effective in protecting ICs, MOSFETs, and signal lines.

The device operates reliably over a wide temperature range from -55°C to 150°C and meets the automotive AEC-Q101 standard for quality and reliability.

The fast response time and low incremental surge resistance enhance its transient voltage suppression efficiency. It also features a glass passivated chip junction to improve longevity.

Vishay SMBJ26A-E3/52 is widely used in consumer electronics, industrial machinery, telecommunications, and other applications requiring robust transient voltage protection. 600 W peak pulse power capability with 10/1000 µs waveform.

Uni-directional diode configuration for focused transient suppression. Surface mount DO-214 package optimized for automated PCB assembly. Excellent clamping voltage of 42.1 V for effective voltage suppression. Operating temperature range of -55°C to 150°C for diverse environments.

Automatic equipment compliance with AEC-Q101 automotive standard. Glass passivated chip junction ensures durability and device reliability. Designed for protecting ICs, MOSFETs, and signal lines in various applications. Explore more high-quality semiconductor components and TVS Diodes on EnvMart for your industrial, laboratory, and commercial needs.
