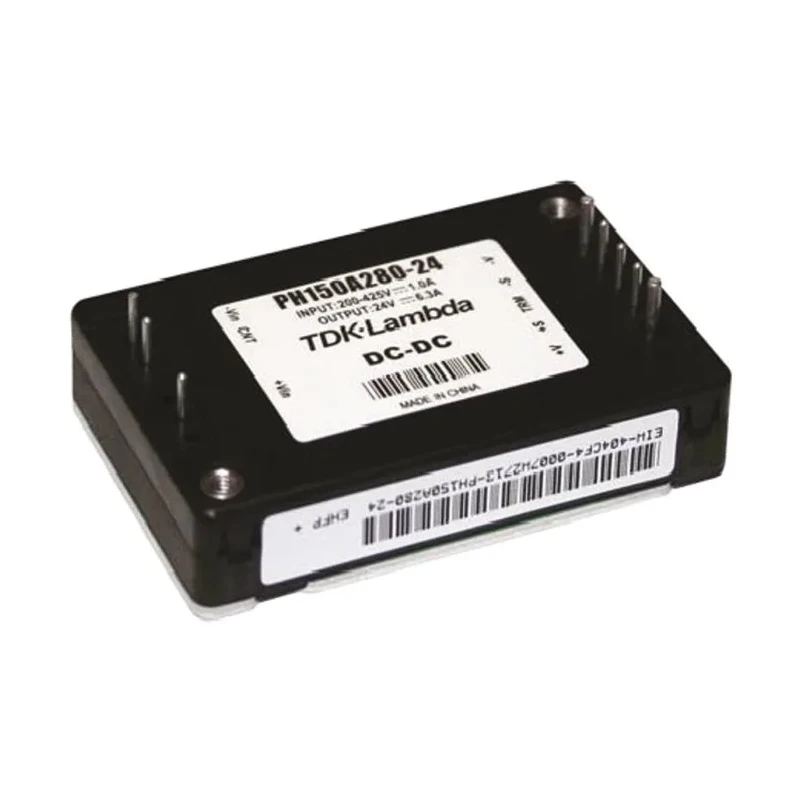

TDK-Lambda PH150A280-24 DC/DC Converter, 200V - 425V DC Input, 151.2W, Through Hole Mount, 100°C Max Temperature PH150A280-24
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PH-A280 DC/DC Converter, 200V dc, 425 V |
| Brand | TDK-Lambda |
| Efficiency | 89% |
| Length | 12.7mm |
| Model | PH150A280-24 |
| Depth | 58.3mm |
| Gross Weight | 55g |
| Width | 37.2mm |
| Mount Type | Through Hole |
| Series | PH-A280 |
| Package Type | DIP |
| Minimum Operating Temperature | 100°C |
| MTBF | 2128235h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV |
| Maximum Output Power | 151.2W |
| Maximum Input Voltage | 425V dc |
| Minimum Input Voltage | 200V |
| Output Voltage 1 | 200, 425V dc |
| Isolation Voltage | 500V dc |
Key Features
- Supports wide input voltage range from 200V to 425V DC.
- Maximum output power of 151.2 Watts with high efficiency of 89%.
- Through hole mounting with compact quarter-brick format dimensions.
- Operating temperature up to 100°C ensures reliable performance in harsh environments.
- Single output configuration with 500V DC isolation voltage for safety.
- Low ripple and noise at 150mV improves power quality for sensitive electronics.
- Conduction cooled for use in industrial, telecommunications, and renewable energy applications.
- Complies with major standards including UL, CSA, and EN certifications for safety and quality.
Product Description
TDK-Lambda PH150A280-24 DC/DC Converter is a high-voltage power module supporting input voltages from 200V to 425V DC and delivering a maximum output power of 151.2 Watts. This converter uses through hole mounting and complies with industrial quarter-brick footprint standards. It is designed to operate reliably in elevated temperatures up to 100°C, making it suitable for demanding industrial and telecommunications environments.
The converter features a single output with 500V DC isolation voltage and low ripple and noise of 150mV, ensuring stable and clean power delivery. With an efficiency rating of 89%, it supports energy-efficient operation in renewable energy systems and outdoor equipment that may require conduction or base-plate cooling.
This product is certified to internationally recognized standards including UL 60950-1, CSA 60950-1, and their respective amendments, guaranteeing compliance with safety and reliability requirements.
The compact dimensions (Length: 12.7mm, Width: 37.2mm, Depth: 58.3mm) make it suitable for space-constrained applications where durability and high voltage handling are critical. Wide 200V to 425V DC input voltage range for flexible power system integration.
151.2 Watts maximum output power suitable for various industrial loads. Through hole mount type for secure PCB installation. 500V DC isolation voltage for safe operation in high-voltage environments. 150mV ripple and noise for improved power quality.
High MTBF of over 2 million hours ensuring long service life. Compliance with UL, CSA, and EN safety standards. Conductive cooling suitable for fanless and sealed enclosures.
This DC/DC converter series supports emerging 380V DC power architectures widely used in data centers and telecommunications, improving energy efficiency and reducing transmission losses. Ideal for demanding industrial, renewable energy, and outdoor equipment requiring rugged, reliable power conversion solutions.
Explore the wide range of TDK-Lambda DC/DC Converters on EnvMart for robust and efficient power supply solutions tailored to industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide input voltage range from 200V to 425V DC.
The maximum output power of this unit is 151.2 Watts.
It has an efficiency rating of 89%.
The dimensions are 12.7mm in length, 37.2mm in width, and 58.3mm in depth.
This model uses through hole mounting for secure PCB installation.
It features an isolation voltage of 500V DC, ensuring safe operation in high-voltage environments.
The output ripple and noise level is 150mV, which helps improve power quality.
The maximum operating temperature is 100°C.
The mean time between failures (MTBF) is over 2 million hours.
It is suitable for industrial, telecommunications, and renewable energy applications.
This converter complies with UL, CSA, and EN safety standards.
This model has a single output configuration.
