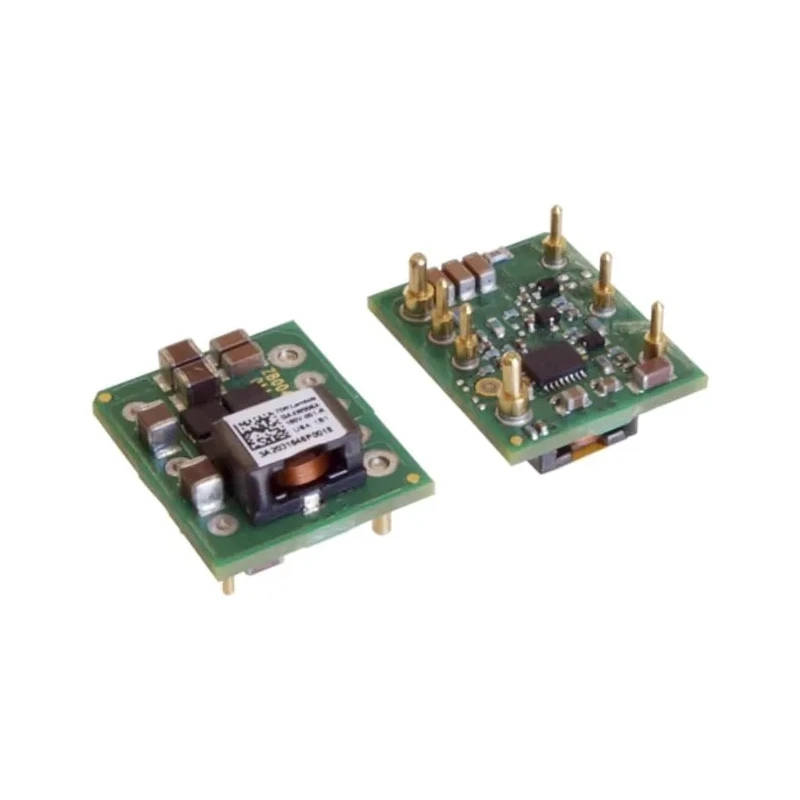

TDK-Lambda 100W Non-Isolated DC-DC Converter 16.5V DC Output 8A 9-53V DC Input PCB Mount I3A4W008A033V-001-R
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Efficiency | 96.5% |
| Length | 23.4mm |
| Model | I3A4W008A033V-001-R |
| Depth | 9.6mm |
| Gross Weight | 8g |
| Width | 19.1mm |
| Mount Type | PCB |
| Series | I3A4W008A033V |
| Maximum Operating Temperature | 125°C |
| Package Type | 1/32 Brick |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 40mV |
| Maximum Output Power | 100W |
| Maximum Input Voltage | 53V dc |
| Standards/Approvals | CSA60950-1, UL60950-1, EN60950-1 |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 16.5, 3.3V dc |
| Output Current 1 | 8A |
Key Features
- Non-isolated step-down (buck) converter in a compact 1/32 brick package.
- High efficiency up to 96.5%, ensuring minimal power loss during operation.
- Operates reliably within temperature range of -40°C to 125°C.
- Low ripple and noise rated at 40mV, suitable for sensitive electronic applications.
- Single output design with wide adjustable output voltage from 3.3V to 16.5V.
- Meets international safety standards including CSA60950-1, UL60950-1, and EN60950-1.
- Lightweight at approximately 8 grams to facilitate compact system designs.
- Applications include medical, industrial, communications, testing, broadcast, and portable equipment.
Product Description
The TDK-Lambda I3A4W008A033V-001-R is a high-performance non-isolated DC/DC converter providing up to 100W of power. It offers a step-down (buck) topology and delivers an output voltage of 16.5V DC at 8A current from a wide input voltage range of 9V to 53V DC. Designed for PCB mounting, this converter is housed in a compact 1/32 brick package measuring 23.4mm in length, 19.1mm in width, and 9.6mm in depth, facilitating integration into space-constrained electronic systems.
With an efficiency of 96.5%, the converter minimizes energy loss and heat generation, suitable for industrial, medical, communications, and test equipment applications. Operating reliably in environmental conditions from -40°C to 125°C, it ensures stable performance under demanding temperature extremes. The output ripple and noise are tightly controlled to 40mV, making it ideal for sensitive electronic circuits requiring clean power.
Certified to CSA60950-1, UL60950-1, and EN60950-1 safety standards, this device guarantees compliance with industry regulations. Its lightweight design of around 8 grams aids in reducing overall system weight. The i3A series converters provide cost-effective solutions for generating additional mid-current voltages from common AC-DC power supplies rated at 12V, 24V, 36V, or 48V.
Typical use cases extend across medical instruments, communications equipment, industrial machinery, measurement and testing devices, broadcast hardware, and portable electronic devices, demonstrating wide versatility.
Non-isolated step-down buck DC/DC converter with wide input and output voltage ranges. High power density in a 1/32 brick footprint allowing for space savings in system design. High efficiency of 96.5% reduces thermal management challenges.
Narrow ripple and noise profile supports sensitive circuitry. Wide temperature operating range enhances reliability in harsh environments. Compliance with major international safety standards ensures global usability. Lightweight design minimizes system load.
Applications span medical, industrial, communications, testing, broadcast, and portable electronic equipment. Discover similar DC/DC Converters in the Electronics & Electricals category within EnvMart for matching power supply needs and enhanced system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 100W.
It has an efficiency rating of up to 96.5%, minimizing energy loss during operation.
The input voltage range for this unit is from 9V to 53V DC.
This converter provides an output voltage of 16.5V DC at a maximum current of 8A.
The dimensions are 23.4mm in length, 19.1mm in width, and 9.6mm in depth.
The output ripple and noise are rated at 40mV, suitable for sensitive electronic applications.
It operates reliably within a temperature range of -40°C to 125°C.
This unit is designed for PCB mounting.
It meets international safety standards including CSA60950-1, UL60950-1, and EN60950-1.
The weight of this model is approximately 8 grams.
It is suitable for applications in medical, industrial, communications, testing, broadcast, and portable equipment.
It is housed in a compact 1/32 brick package.
