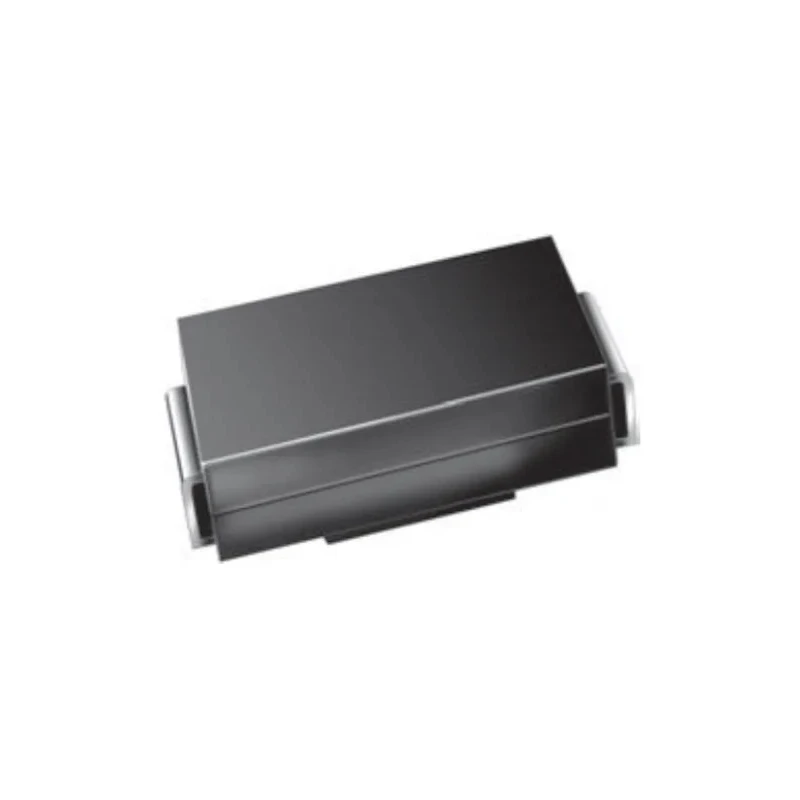

Vishay Bi-Directional TVS Diode Surface Mount DO-214AC Package 400W Peak Pulse Power SMAJ9.0CAHM3_A/H

Vishay SMAJ9.0CAHM3_A/H is a high-performance bi-directional TVS (Transient Voltage Suppressor) diode packaged in a low-profile DO-214AC (SMA) surface mount case. It is engineered to protect sensitive electronic circuits from voltage transients induced by inductive load switching and lightning strikes. This diode is ideally suited for automotive, consumer electronics, computer, industrial, and telecommunication applications.

Featuring a 400 W peak pulse power dissipation capability, the device supports a peak pulse current of 26 A and exhibits a minimum breakdown voltage of 10 V with a maximum reverse stand-off voltage of 9 V. Its fast response time and low incremental surge resistance provide excellent clamping performance with a clamping voltage of 15.4 V. The diode is designed for operation in extreme temperature environments ranging between -65°C and 150°C.

The glass passivated chip junction ensures stability and reliability over long operational lifetimes. The diode meets industry standards including RoHS compliance and is qualified per AEC-Q101 automotive standards, making it suitable for high-demand automotive electronic systems. The maximum reverse leakage current is limited to a minimal 1 μA, ensuring energy efficiency and device integrity.

The compact dimensions of 4.5 mm length, 2.29 mm width, and 2.79 mm height allow for high-density PCB layouts, while the surface mount design supports automated assembly processes reducing manufacturing costs.

This TVS diode is commonly used for protecting integrated circuits, MOSFETs, sensor units, and signal lines from damaging voltage spikes in industrial, automotive, and telecommunications equipment, enhancing overall system reliability and lifespan.

Compact DO-214AC surface mount package suitable for automated PCB assembly. Bi-directional diode offering protection against inductive load switching and lightning transients. Minimum breakdown voltage of 10 V and maximum reverse stand-off voltage of 9 V.

Operating temperature range from -65°C to 150°C for wide industrial applications. Exceptional clamping voltage of 15.4 V ensuring excellent transient voltage suppression. Fast response time with low incremental surge resistance and peak pulse current of 26 A.

Glass passivated chip junction for reliable durability and electrical stability. Complies with RoHS directive and AEC-Q101 automotive quality standards. Maximum reverse leakage current limited to 1 μA enhancing device efficiency.

Low profile design with dimensions approximately 4.5 mm length, 2.29 mm width, and 2.79 mm height. Discover more electronic components and TVS Diodes on EnvMart for industrial, automotive, laboratory, and commercial electronics manufacturing needs.
