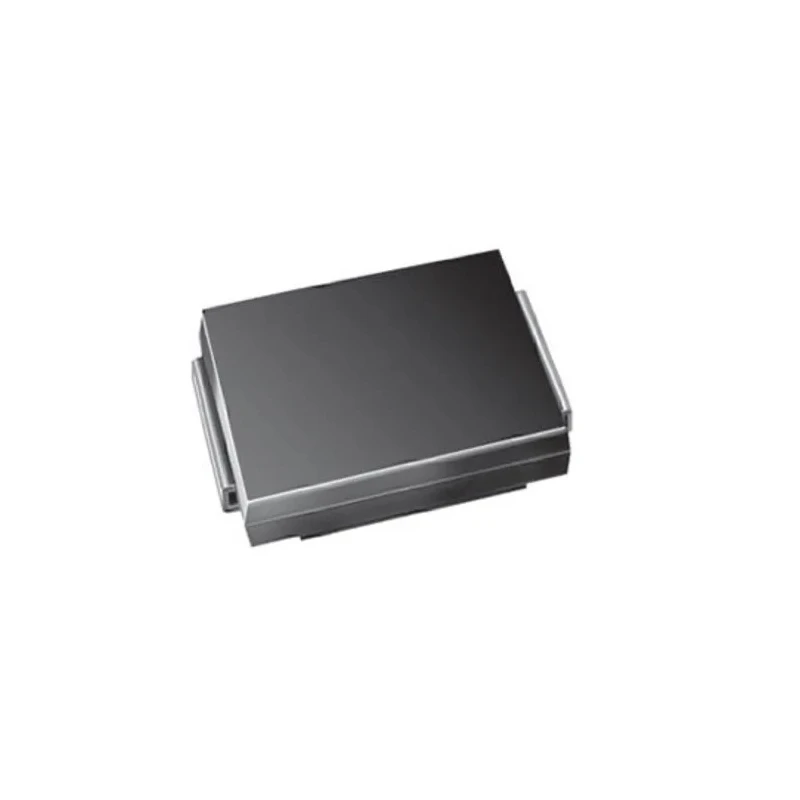

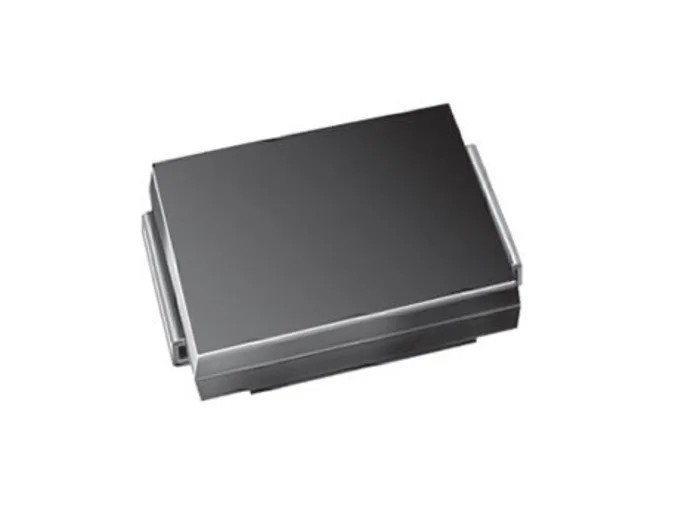

Vishay Uni-Directional TVS Diode 1500 W Peak Pulse Power, Surface Mount DO-214AB Package 1.5SMC170AHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | 1.5SMC170AHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | 1.5SMC |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 234V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 162V |
| Maximum Reverse Stand-off Voltage Vwm | 145V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6.4A |
Key Features
- This diode features a surface mount DO-214AB (SMC) package for compact installation.
- It has a minimum breakdown voltage of 162 V, providing reliable protection against high voltage spikes.
- Maximum reverse stand-off voltage is 145 V ensuring device safety under voltage stress.
- Capable of handling up to 6.4 A peak pulse current with a clamping voltage of 234 V.
- Operates effectively in temperature ranges from -65°C to 150°C for versatile applications.
- Glass passivated chip junction ensures high reliability and durability.
- Complies with RoHS standards and is AEC-Q101 automotive qualified for quality assurance.
- Designed for rapid response time with low incremental surge resistance.
Product Description
Vishay 1.5SMC170AHM3_A/H Uni-Directional TVS Diode, packaged in a surface mount DO-214AB (SMC) case, is engineered for transient voltage suppression in sensitive electronic equipment. It provides robust protection with a 1500 W peak pulse power rating under a 10/1000 μs waveform and a low duty cycle of 0.01%.
The diode exhibits a minimum breakdown voltage (Vbr) of 162 V and a maximum reverse stand-off voltage (Vwm) of 145 V, suitable for shielding integrated circuits, MOSFETs, and sensor lines from voltage transients caused by inductive load switching or lightning.
Its peak pulse current rating of 6.4 A with a clamping voltage (Vc) of 234 V ensures effective transient suppression. The device is designed to operate over a wide temperature range of -65°C to 150°C, making it reliable in industrial, automotive, telecommunications, and consumer electronics environments.
The glass passivated chip junction boosts reliability while the low profile DO-214AB package facilitates automated pick-and-place assembly. It achieves fast response times with minimal incremental surge resistance, meeting the demands of modern electronic systems.
Certified RoHS compliant and qualified to the automotive AEC-Q101 standard, this Vishay TVS Diode adheres to stringent quality controls for high performance and safety. This diode protects circuits from damaging voltage spikes efficiently.
Surface mount package integrates easily into diverse electronic assemblies. Wide operating temperature allows use in harsh environments. Automotive grade AEC-Q101 compliance ensures suitability in vehicle electronics. Low incremental surge resistance enhances transient voltage control.
Compact dimensions (7.11mm length x 6.22mm height x 2.62mm width) save board space. Robust construction supports long-term reliability under electrical stress. Ideal for industrial, automotive, telecommunication, and consumer applications.
Explore more Vishay semiconductor devices for tailored electronic protection solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay 1.5SMC170AHM3_A/H TVS diode has a peak pulse power rating of 1500 W under a 10/1000 μs waveform.
The minimum breakdown voltage (Vbr) of this diode is 162 V, providing reliable protection against voltage spikes.
The clamping voltage (Vc) of this diode is 234 V, ensuring effective transient suppression.
This TVS diode is capable of handling a maximum peak pulse current of 6.4 A.
The diode operates effectively in a temperature range from -65°C to 150°C, making it suitable for various applications.
It is packaged in a surface mount DO-214AB (SMC) case, facilitating compact installation.
Yes, it is RoHS compliant and qualified to the automotive AEC-Q101 standard for quality assurance.
The height of this diode is 6.22 mm.
The dimensions of the diode are 7.11 mm in length, 6.22 mm in height, and 2.62 mm in width.
This model is suitable for applications in industrial, automotive, telecommunications, and consumer electronics environments.
This diode is uni-directional, designed for transient voltage suppression in sensitive electronic equipment.
