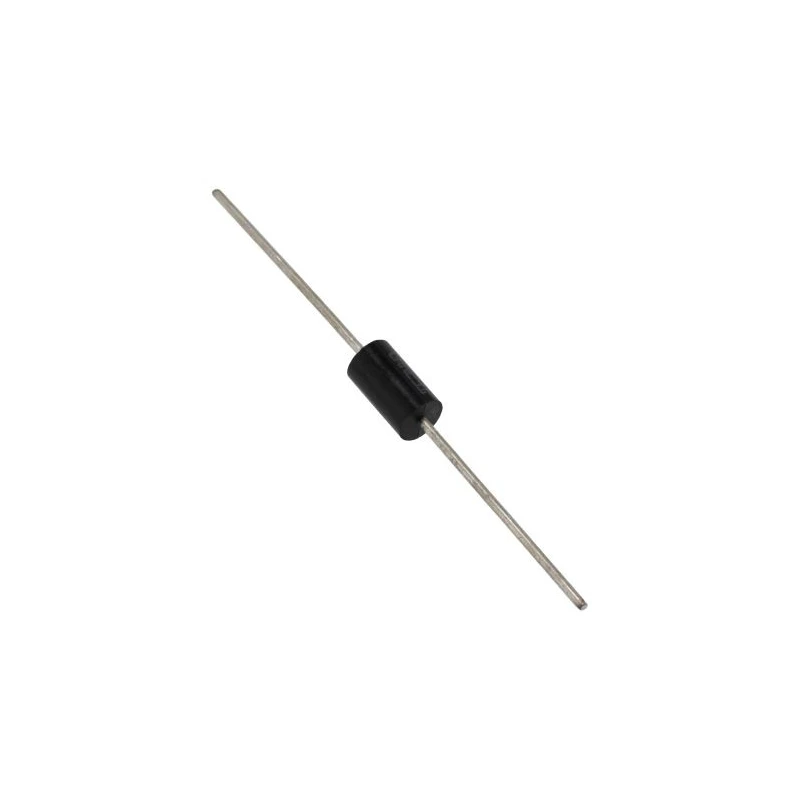

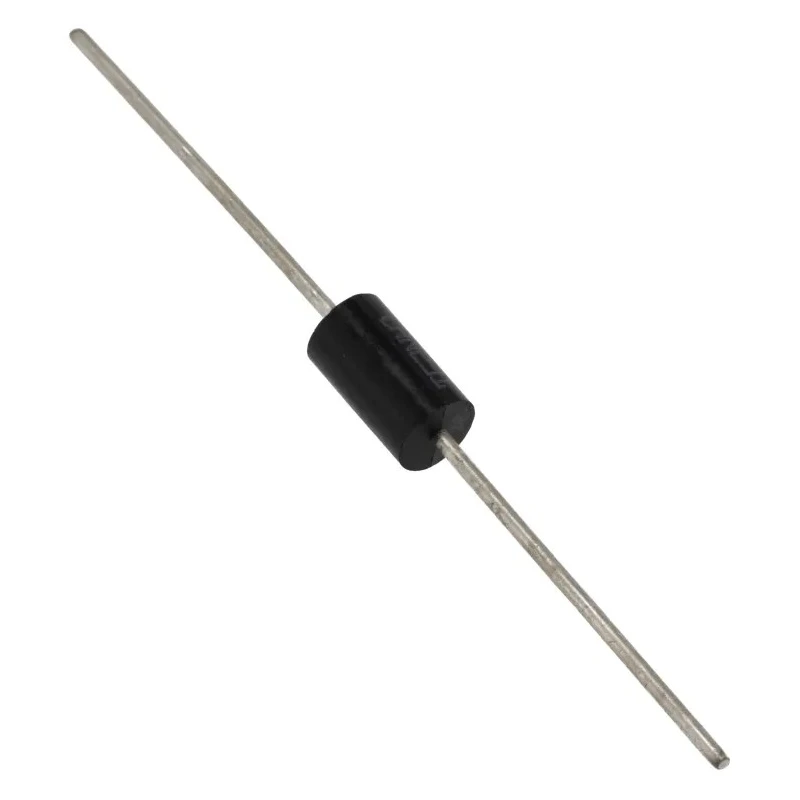

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE12CA

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE12CA

Name: STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE12CA
Brand: STMicroelectronics
SKU: 189926
Price: 0.42 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	STMicroelectronics
Height	5.3mm
Length	9.5mm
Model	1.5KE12CA
Width	5.3mm
Mount Type	Through Hole
Series	1.5KE
Maximum Operating Temperature	175°C
Package Type	DO-201
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	21.7V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	11.4V
Maximum Reverse Stand-off Voltage Vwm	10.2V
Peak Pulse Power Dissipation Pppm	1.5kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	461A
Maximum Reverse Leakage Current	5μA

Key Features

Single diode configuration ensures reliable bidirectional protection.
Through-hole mount type suitable for various PCB designs.
Rated for a maximum reverse stand-off voltage of 10.2 V.
Clamping voltage of 21.7 V for effective voltage spike absorption.
Operates from -65°C up to 175°C for demanding environments.
Small axial package with dimensions 9.5 mm length and 5.3 mm diameter.
High peak pulse current capacity of 461 A for surge events.
Low maximum reverse leakage current of 5 μA limits power losses.

Product Description

STMicroelectronics 1.5KE12CA 1-Element Bi-Directional TVS Diode in a 2-pin DO-201 axial through-hole package offers 1.5 kW peak pulse power dissipation, designed for transient voltage suppression in sensitive electronic circuits. It provides bidirectional voltage clamping, making it ideal for industrial, automotive, and consumer electronic applications requiring overvoltage protection.

The diode features a minimum breakdown voltage of 11.4 V and a maximum reverse stand-off voltage of 10.2 V, with a clamping voltage of 21.7 V, ensuring effective suppression of voltage spikes. It is capable of handling peak pulse currents as high as 461 A and maintains functionality across a wide temperature range from -65°C to 175°C.

With compact dimensions - length of 9.5 mm and diameter of 5.3 mm - the component fits well in space-constrained PCB designs. The low maximum reverse leakage current of 5 μA ensures minimal power loss during operation.

This TVS diode is suitable for use in industrial electronics, power supplies, automotive electronics, water treatment, manufacturing systems, and other applications needing reliable circuit protection against transient voltage events.

Single diode configuration ensures reliable bidirectional protection. Through-hole mount type suitable for various PCB designs. Rated for a maximum reverse stand-off voltage of 10.2 V. Clamping voltage of 21.7 V for effective voltage spike absorption.

Operates from -65°C up to 175°C for demanding environments. Small axial package with dimensions 9.5 mm length and 5.3 mm diameter. High peak pulse current capacity of 461 A for surge events. Low maximum reverse leakage current of 5 μA limits power losses.

Designed to protect sensitive semiconductor components in industrial circuits.

Protect your sensitive electronics with the STMicroelectronics 1.5KE12CA TVS Diode, optimized for durability and performance. Explore more in our Electronics & Electricals semiconductor catalog for related transient voltage protection components.
