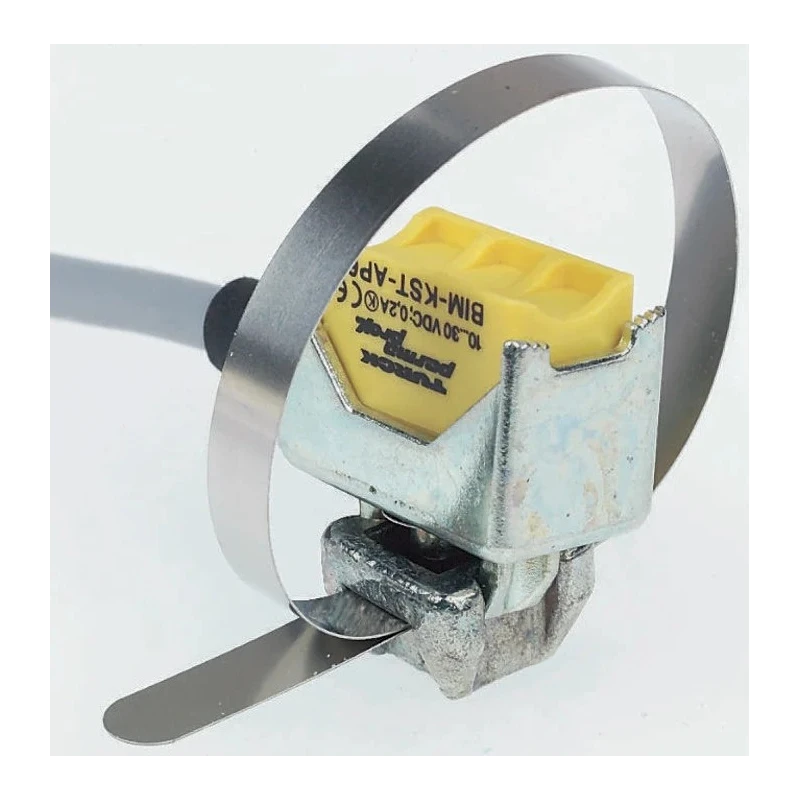

Turck Block Inductive Proximity Sensor PNP Output 8 mm Detection 30 V dc 200mA BIM-KST-AP6X

Turck BIM-KST-AP6X is a block-style Inductive Proximity Sensor designed for reliable object detection in automation and control systems. This sensor features a PNP output configuration and operates at a maximum supply voltage of 30 V dc with a switching current rating of 200mA. It has a maximum detection range of 8 mm, making it ideal for precision sensing in industrial machinery.

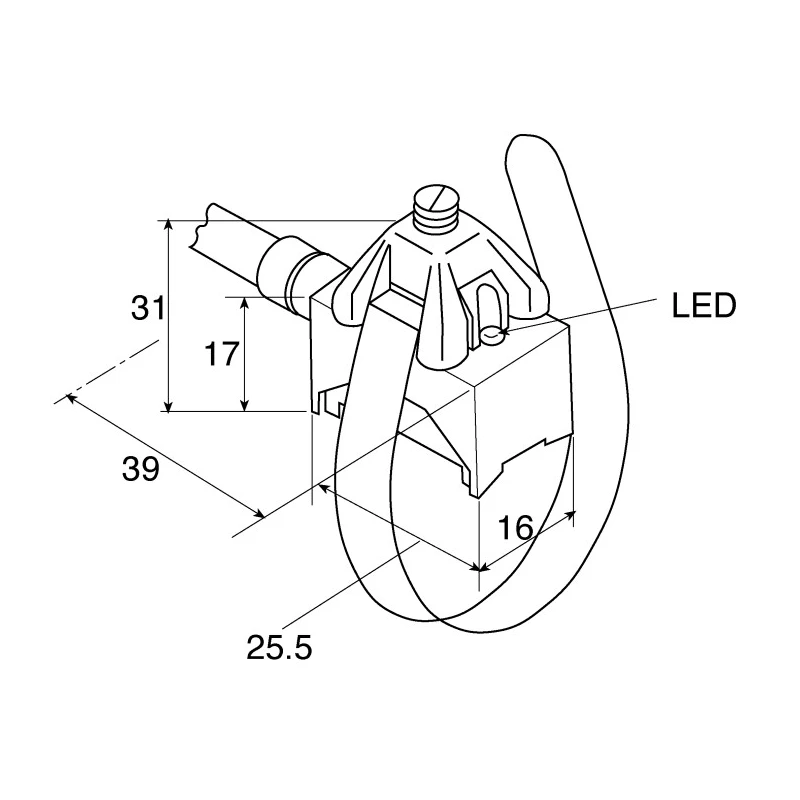

The sensor housing is constructed from gadolinium zinc alloy, combined with a PA12 plastic body and zinc die cast protective cover that ensures IP67 ingress protection. This rugged design enables the sensor to withstand harsh environmental conditions, including exposure to dust and water jets. Its compact dimensions of 39 mm length, 16 mm width, and 17 mm depth allow for versatile mounting configurations.

It supports non-flush mounting and includes a pre-cabled terminal type for secure electrical connections. The operating temperature range from -25°C to 70°C accommodates a wide variety of industrial environments, including temperature-varying applications.

This model includes features such as overload, short circuit, and reverse polarity protection to safeguard both the sensor and connected equipment. An integrated LED status display provides clear visual feedback during operation for easy maintenance and troubleshooting.

Typical applications include factory automation, assembly line monitoring, and position detection within automated processes. The unshielded design promotes broader object detection scenarios, especially cylindrical and rounded metallic parts with diameters ranging from 8 to 80 mm.

Compact block-style sensor housing ensures easy integration into industrial machines. Robust IP67-rated housing protects against dust and water ingress. Pre-cabled terminal simplifies installation and wiring. Reliable PNP output compatible with common automation controllers.

Overload and short circuit protections increase operational safety. LED status indicator allows quick verification of sensor status. Wide operating temperature range supports diverse industrial settings. Unshielded sensing allows broad detection of metallic objects.

Manufactured in Germany to strict quality standards. Explore more Turck sensors and automation components on EnvMart for robust industrial solutions.
