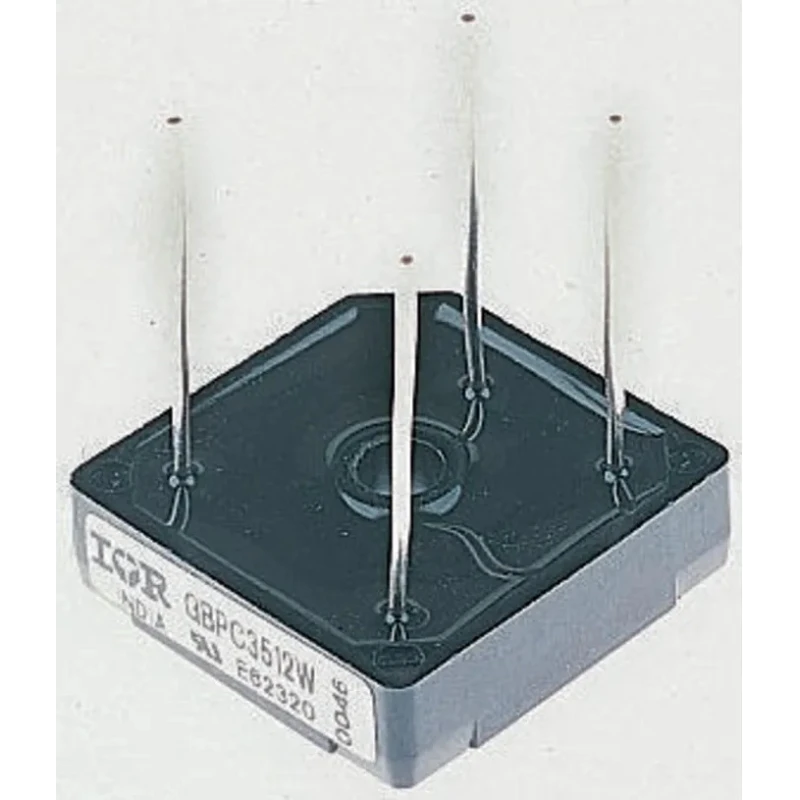

Vishay Bridge Rectifier 1200 V 500 A 4-Pin Single Through Hole GBPC Package VS-GBPC3512W

The Vishay VS-GBPC3512W Bridge Rectifier is a high-performance semiconductor device designed for converting alternating current (AC) to direct current (DC) using full-wave rectification for single-phase applications. Featuring a peak reverse repetitive voltage (Vrrm) of 1200 V and a forward current capability of 35 A, this device efficiently manages high voltage and current in demanding industrial environments. It operates reliably in a broad temperature range from -55°C to 150°C, suitable for harsh conditions.

This bridge rectifier is housed in a compact GBPC package with a through-hole mount type, facilitating easy installation on printed circuit boards (PCBs) or chassis. The four-pin single configuration and its wire lead structure provide flexibility and mechanical stability. Measuring 28.8 mm in length and width and 7.62 mm in height, it conserves valuable PCB space while maintaining thermal performance.

With a low forward voltage drop of 1.1 V and a peak non-repetitive forward surge current capability of 500 A, the VS-GBPC3512W is engineered for robustness and efficiency. Its low peak reverse current of 5 μA minimizes leakage, making it suitable for sensitive electronic control systems.

This device is ideal for use in switching power supplies, motor drives, industrial controls, and other high-power electronic applications requiring efficient rectification and high reliability. Although it does not carry specific industry certifications, its proven design from Vishay Semiconductor ensures performance in demanding industrial and electrical systems.

Bridge rectifiers like the VS-GBPC3512W play a critical role in converting AC inputs to controlled DC outputs with consistent polarity, essential in manufacturing, power management, and electronic instrumentation.

Compact through hole GBPC package for PCB mounting with robust wire lead structure. Supports continuous forward current of 35 A with low forward voltage drop of 1.1 V. Wide operating temperature range from -55°C to 150°C to ensure reliable performance.

Peak reverse repetitive voltage of 1200 V ensures high voltage blocking capability. Designed for full-wave AC to DC conversion in industrial and electronic semiconductor applications. Compact dimensions: 28.8 mm length and width, 7.62 mm height optimize board space.

Low leakage current with peak reverse current rated at 5 μA. Suitable for use in power supply units, motor control, and other industrial electronics. Explore a wide range of semiconductor components and Bridge Rectifiers on EnvMart for your power electronics and industrial automation requirements.
