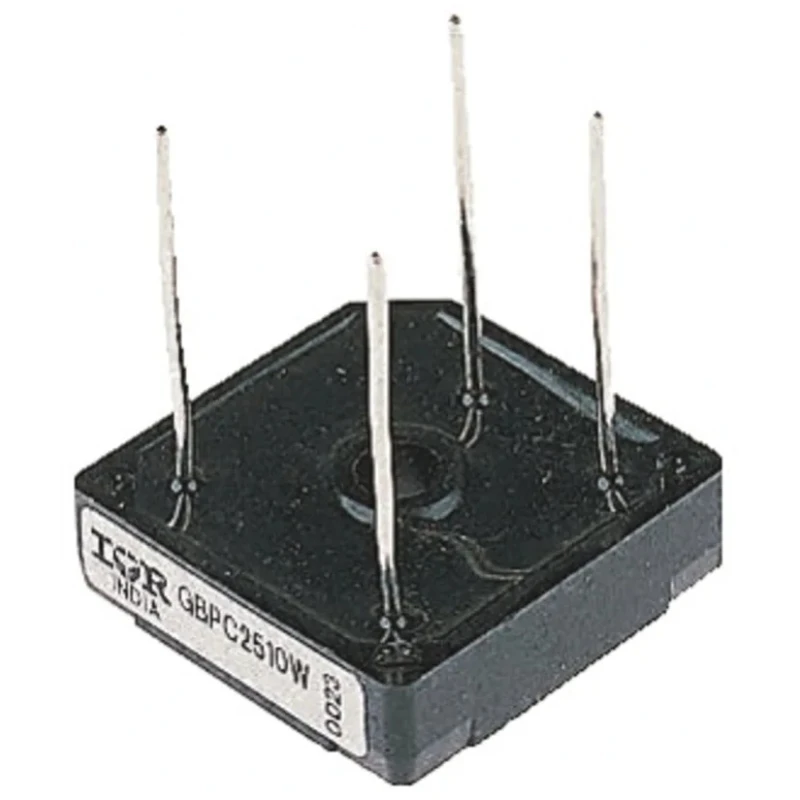

Vishay Bridge Rectifier 1000 V 300 A 4-Pin Single Through Hole GBPC2510W-E4/51
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 7.87mm |
| Length | 28.8mm |
| Model | GBPC2510W-E4/51 |
| Width | 28.8mm |
| Mount Type | Through Hole |
| Series | GBPC25 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Offers a peak reverse repetitive voltage of 1000 V for reliable operation.
- Rated for forward continuous current of 25 A in demanding circuits.
- Supports surge forward current of 300 A for transient overloads.
- Operates effectively between -55°C and 150°C for harsh environments.
- Features a low forward voltage drop of 1.1 V for high efficiency.
- Constructed with glass passivated semiconductor technology.
- Equipped with a 4-pin GBPC package for through-hole PCB mounting.
- Compact dimensions of 28.8 mm in length and width, and 7.87 mm height.
Product Description
Vishay GBPC2510W-E4/51 Bridge Rectifier is a glass passivated, single-phase bridge rectifier designed to convert AC input into DC output efficiently. It operates with a peak reverse repetitive voltage of 1000 V and a forward continuous current of 25 A, making it suitable for power electronic circuits requiring reliable full-wave rectification.
The device supports a peak non-repetitive forward surge current of 300 A, allowing for short-term high load conditions without damage. It maintains a low forward voltage drop of 1.1 V, minimizing power dissipation during operation, which enhances thermal performance.
The rectifier features a 4-pin GBPC package designed for through-hole mounting on printed circuit boards, facilitating straightforward integration into electronic assemblies. Its robust operating temperature range from -55°C to 150°C ensures reliability under extreme thermal conditions.
The component dimensions are 28.8 mm in length and width with a height of 7.87 mm, ensuring compatibility with compact electronic designs. Peak reverse current leakage is limited to 500 μA, supporting high efficiency and low standby losses.
Vishay's bridge rectifier is widely used in industrial electronics, power supply units, battery charging circuits, and HVAC controls due to its durability and performance. Peak reverse repetitive voltage of 1000 V. Forward continuous current of 25 A.
Peak forward surge current rated at 300 A. Operating temperature range from -55°C to 150°C. Low forward voltage of 1.1 V for efficiency. Glass passivated semiconductor construction. 4-pin GBPC through-hole mounting package.
Compact dimensions: 28.8 mm x 28.8 mm x 7.87 mm. Peak reverse current of 500 μA. Manufactured in China for reliability in demanding applications.
This bridge rectifier is an essential component for a variety of industrial, laboratory, HVAC, and manufacturing electronics applications. Explore more Vishay Bridge Rectifiers and semiconductor components at EnvMart for your electronic design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay GBPC2510W-E4/51 has a peak reverse repetitive voltage of 1000 V, making it suitable for high voltage applications.
This bridge rectifier is rated for a forward continuous current of 25 A, allowing it to handle significant load in power electronic circuits.
It supports a peak non-repetitive forward surge current of 300 A, which helps manage transient overloads without damage.
The operating temperature range is from -55°C to 150°C, ensuring reliability in extreme thermal conditions.
This model has compact dimensions of 28.8 mm in length, 28.8 mm in width, and a height of 7.87 mm, facilitating integration into electronic designs.
It features a 4-pin GBPC package designed for through-hole mounting on printed circuit boards, making installation straightforward.
The forward voltage drop is low at 1.1 V, which helps in minimizing power dissipation during operation.
The peak reverse current leakage is limited to 500 μA, supporting high efficiency and low standby losses.
It is constructed using glass passivated semiconductor technology, enhancing its performance and reliability.
This bridge rectifier is commonly used in industrial electronics, power supply units, battery charging circuits, and HVAC controls.
This model is designed for single-phase applications, making it suitable for various electronic circuits.
The Vishay GBPC2510W-E4/51 is manufactured in China, ensuring reliability in demanding applications.
