Vishay Bridge Rectifier 1200 V 420 A 4-Pin Single VS-GBPC2512W

Free Delivery in India | Lowest Global Shipping Charges

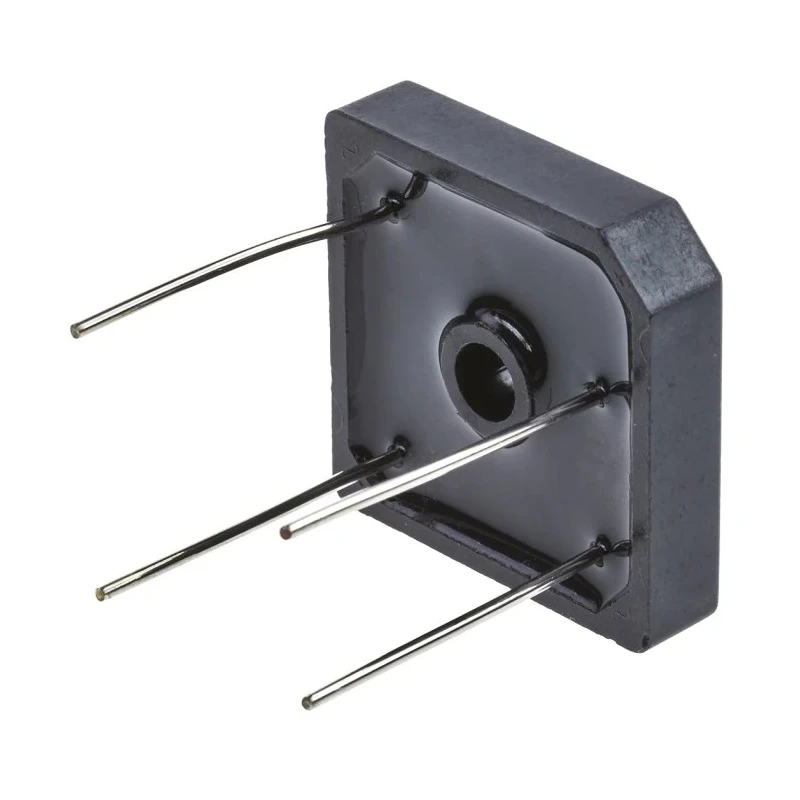

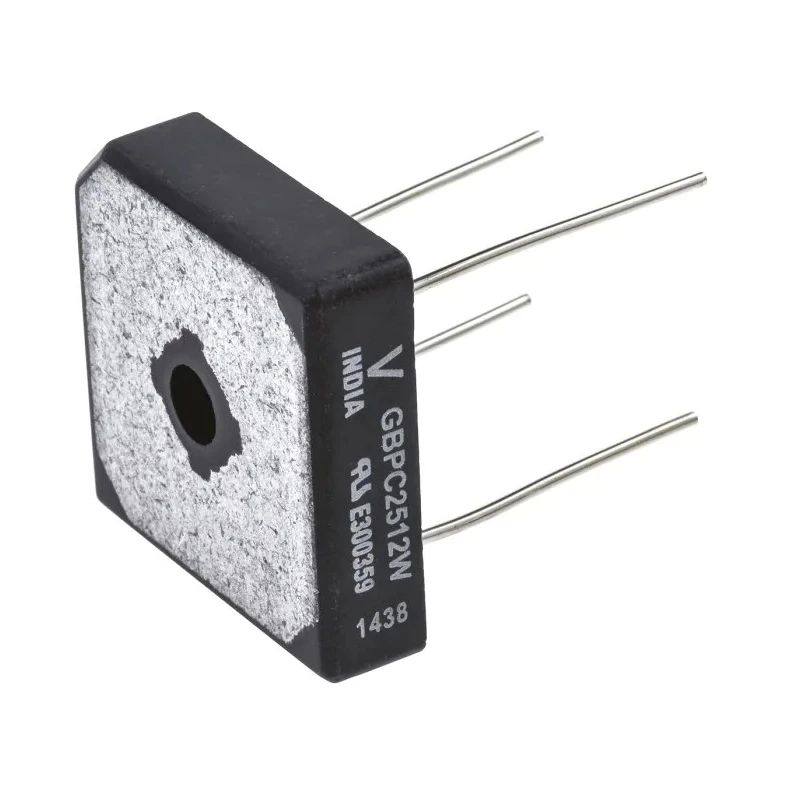

Vishay Bridge Rectifier 1200 V 420 A 4-Pin Single VS-GBPC2512W

Name: Vishay Bridge Rectifier 1200 V 420 A 4-Pin Single VS-GBPC2512W
Brand: Vishay
SKU: 182954
Price: 4.52 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.62mm
Length	28.8mm
Model	VS-GBPC2512W
Width	28.8mm
Mount Type	Through Hole
Series	VS-GBPC
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1200V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	420A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
Vishay Bridge Rectifier, 1000 V 300 A, 4-Pin SingleBrand	Vishay

Key Features

Designed for through hole mounting on printed circuit boards.
Compact GBPC package with a 4-pin single configuration.
Operates reliably in temperatures from -55°C to 150°C.
Low forward voltage drop of 1.1 V for efficient power conversion.
Minimal peak reverse current of 5 μA ensuring low leakage.
Robust construction for high surge current tolerance of 420 A.
Suitable for industrial, power supply, and electronic applications requiring reliable AC to DC conversion.

Product Description

Vishay VS-GBPC2512W Bridge Rectifier is engineered to convert alternating current (AC) input into direct current (DC) output, providing full-wave rectification with high efficiency and reliability. With a peak reverse repetitive voltage rating of 1200 V and a forward current rating of 25 A, it is ideal for industrial and electronic power supply circuits.

The rectifier features a compact GBPC package with a 4-pin single bridge configuration, perfect for through hole mounting on printed circuit boards (PCB). It supports high surge currents up to 420 A, ensuring durability under transient conditions. The device operates across a wide temperature range from -55°C to 150°C, making it suitable for demanding environmental conditions.

The low forward voltage drop of 1.1 V minimizes power losses during rectification, while the peak reverse current of only 5 μA enhances energy efficiency by reducing leakage. Its dimensions of 28.8 mm in length and width with a height of 7.62 mm allow efficient PCB space utilization.

This bridge rectifier is a reliable choice for industrial, manufacturing, power supply, and electronic circuit applications that require robust AC to DC conversion. It ensures stable performance in a variety of electrical environments.

Designed for mounting on printed circuit boards and chassis. Center hole fixing enables secure installation with low thermal resistance. Wire lead structure enhances versatility in connection options. High surge current capability supports transient load conditions.

Compact, space-saving design for efficient PCB layouts.
