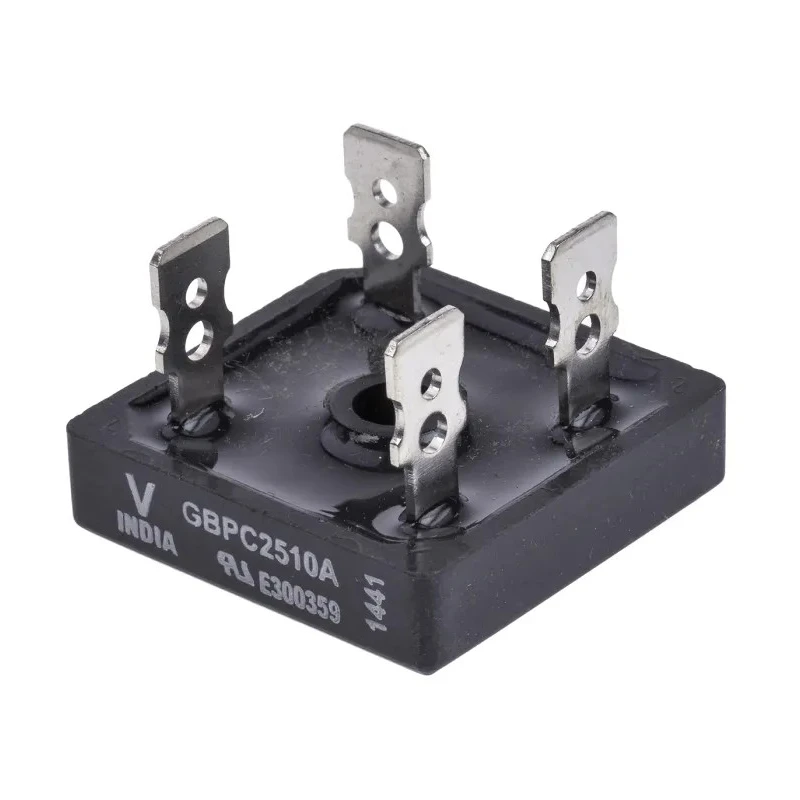

Vishay Bridge Rectifier 1000 V 420 A 4-Pin Single VS-GBPC2510A

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 1000 V 420 A 4-Pin Single VS-GBPC2510A

Name: Vishay Bridge Rectifier 1000 V 420 A 4-Pin Single VS-GBPC2510A
Brand: Vishay
SKU: 182952
Price: 5.4 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.7mm
Length	28.6mm
Model	VS-GBPC2510A
Width	28.6mm
Mount Type	Screw
Series	VS-GBPC
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	420A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
Universal, 3-way terminals	Push-on, wrap around or solder
Vishay Bridge Rectifier, 800 V 420 A, 4-Pin SingleBrand	Vishay

Key Features

Supports peak reverse repetitive voltage of 1000 V.
Carries a forward current of 25 A with peak surge current of 420 A.
Operates in temperature range -55°C to 150°C for durable performance.
Compact 4-pin single configuration with screw mount and GBPC package.
Features peak forward voltage of 1.1 V and low reverse current of 5 μA.
High thermal conductivity package with electrically insulated case.
Universal terminals allow push-on, wrap around, or solder connections.
Reliable for industrial, laboratory, and power electronics use.

Product Description

Vishay VS-GBPC2510A Bridge Rectifier is a high-performance electronic component designed to convert alternating current (AC) input into direct current (DC) output through full-wave rectification. It offers a peak reverse repetitive voltage rating of 1000 V and can handle a forward current of 25 A, making it suitable for demanding electronic and power conversion systems.

Operating effectively between -55°C and 150°C, this single-phase 4-pin device includes a screw mount and GBPC package type which houses the diode components in a compact layout measuring 28.6 mm by 28.6 mm by 7.7 mm. This design delivers a superior power-to-volume ratio with excellent thermal conductivity and an electrically insulated case to ensure safe operation and heat management.

The rectifier's peak non-repetitive forward surge current is rated at 420 A, and it features a peak forward voltage drop of 1.1 V, along with minimal peak reverse current leakage of 5 μA, promoting energy efficiency and reliability.

Designed with universal, three-way terminal options including push-on, wrap around, or solder connections, the VS-GBPC2510A offers versatility in mounting and integration into diverse electrical and electronic systems.

Supports 1000 V peak reverse repetitive voltage rating. Capable of continuous forward current of 25 A. Withstands peak surge current of up to 420 A. Temperature tolerance from -55°C to 150°C for robust operation. Compact dimensions facilitating easy PCB placement.

High thermal conductivity package with insulated case enhances reliability. Multiple universal mounting terminal options for flexible installation. Low forward voltage and minimal reverse current losses. Ideal for industrial, laboratory, power supplies, and HVAC electronics applications.

Vishay Bridge Rectifiers like the VS-GBPC2510A provide essential components for ensuring stable and efficient power conversion in electronics. This product is well-suited for applications requiring reliable, full-wave rectification with high surge current tolerance and thermal endurance. Browse related products and categories at EnvMart for compatible and complementary semiconductor components.
