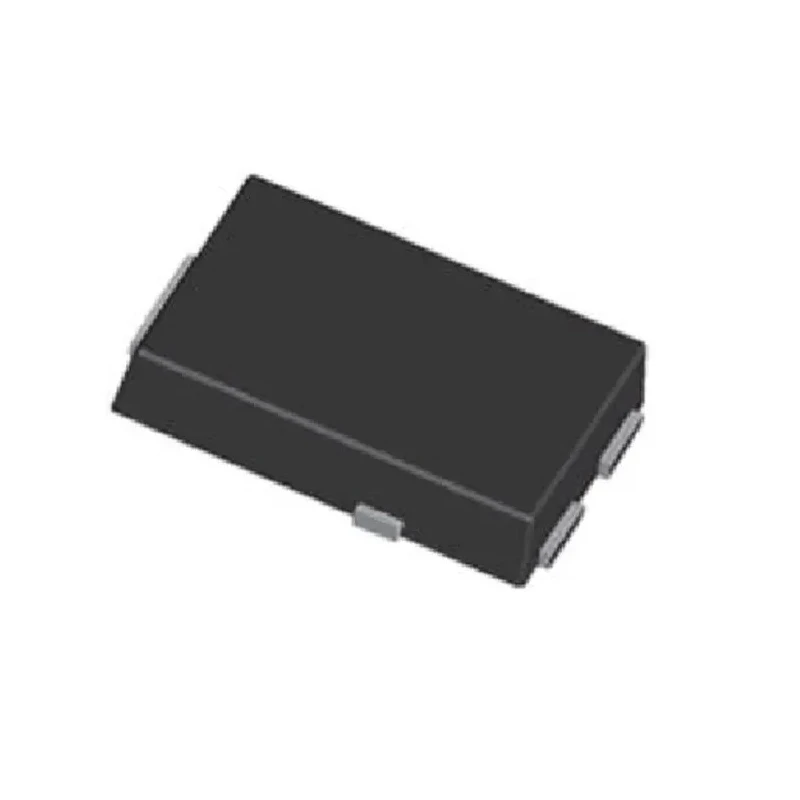

Vishay 150 V 12 A Schottky Barrier Schottky DPAK Surface Mount Diode V12PM153HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V12PM153HM3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- Designed for high current density and low voltage drop applications.
- Surface mount TO-252 package suitable for automated PCB assembly.
- Operates at temperatures ranging from -65°C to 150°C.
- High surge current capability of 200 A for non-repetitive forward surges.
- Complies with RoHS and meets automotive AEC-Q101 standards.
- Trench MOS Schottky technology lowers forward voltage and power losses.
- Low profile with a typical height of 1.3 mm enhances compact circuit design.
- Ideal for DC/DC converters, freewheeling, and polarity protection applications.
Product Description
Vishay V12PM153HM3/H is a high current density Schottky Barrier Schottky diode designed for surface mount applications in compact electronic circuits. It provides a maximum continuous forward current of 12 A and a peak reverse voltage rating of 150 V, making it suitable for demanding power management tasks in industrial, automotive, and consumer electronics.
This diode comes in a TO-252 (DPAK) package with a very low profile of approximately 1.3 mm height, enabling efficient automated PCB assembly processes and facilitating heat dissipation management.
Featuring advanced trench MOS Schottky technology, the device achieves a low forward voltage drop of 0.62 V, which results in reduced power losses and improved overall efficiency during operation. It supports high-frequency switching, making it ideal for DC/DC converters and freewheeling diode configurations.
The operating temperature ranges from -65°C to 150°C, accommodating a wide range of environmental conditions, while its peak non-repetitive surge current capability of 200 A allows for robustness against transient spikes.
This diode complies with RoHS directives and the automotive-grade AEC-Q101 standard, assuring reliability and safety in automotive and other strict industrial contexts. High current density Schottky barrier diode for power electronics.
Low profile TO-252 surface mount package with 1.3 mm height. Maximum continuous forward current of 12 A and 150 V reverse voltage rating. Trench MOS Schottky technology reduces forward voltage drop to 0.62 V. Operating temperature from -65°C to 150°C for versatile applications.
Capable of withstanding 200 A non-repetitive forward surge currents. RoHS compliant and meets automotive AEC-Q101 qualification standards. Designed for use in DC/DC converters, polarity protection, and freewheeling diode applications.
This product is ideal for use in industrial machines, automotive electronics, consumer devices, and power supply circuits where efficient rectification and protection is critical. Please explore related semiconductor products and components in the EnvMart catalog for comprehensive design solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay V12PM153HM3/H Schottky diode is 12 A.
This model has a peak reverse voltage rating of 150 V.
The operating temperature range for this diode is from -65°C to 150°C.
It comes in a TO-252 (DPAK) surface mount package.
The maximum forward voltage drop is 0.62 V.
The diode can withstand a peak non-repetitive forward surge current of 200 A.
Yes, it complies with RoHS directives and meets automotive AEC-Q101 standards.
This diode is suitable for applications such as DC/DC converters, freewheeling, and polarity protection.
It utilizes trench MOS Schottky technology to achieve a low forward voltage drop and reduce power losses.
The height of the TO-252 package is approximately 1.3 mm.
The diode configuration is single.
The series name of this Schottky diode is eSMP.
