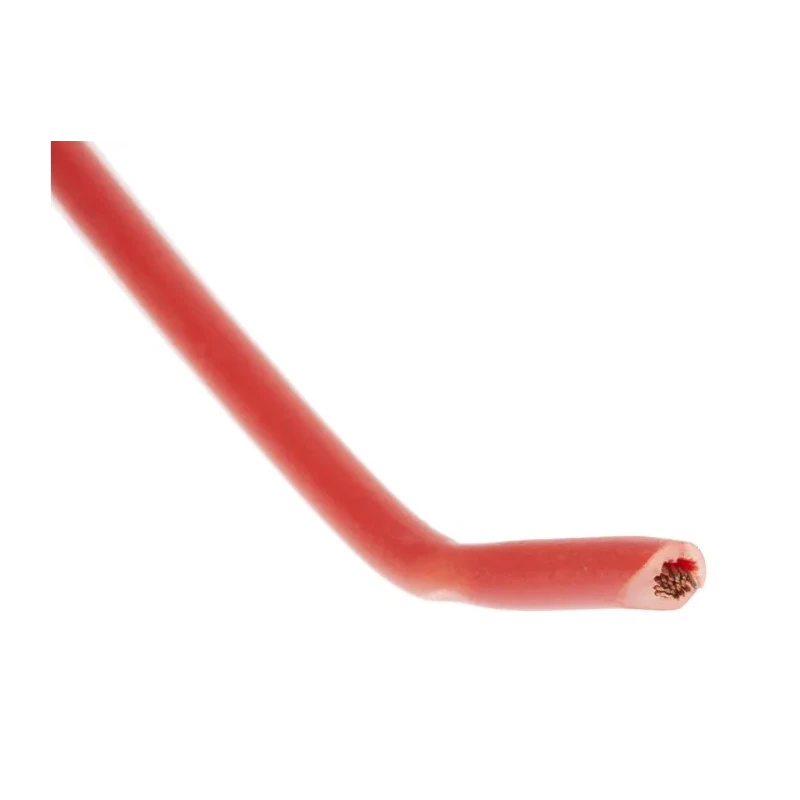

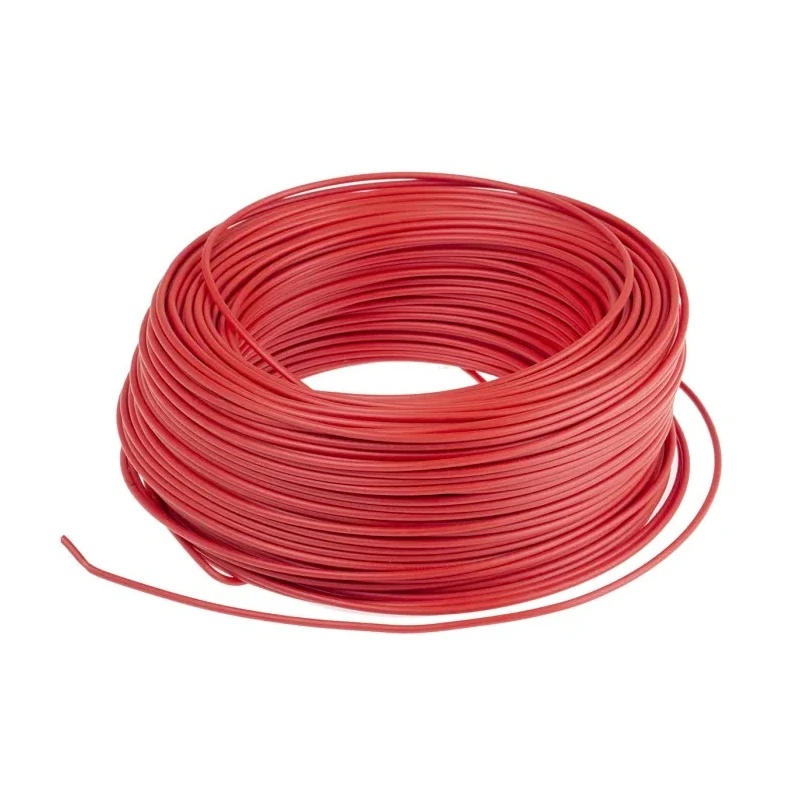

Lapp Red 0.5 mm² Low Smoke Zero Halogen (LSZH) Cross Linked Insulation Hook Up Wire 100 m 4725041

Lapp 4725041 Red 0.5 mm² Low Smoke Zero Halogen (LSZH) Cross Linked Insulation Hook Up Wire 100 m is a premium single core cable designed for safe and efficient internal wiring applications in industrial and commercial settings.

This wire features a robust LSZH jacket that significantly reduces smoke density and releases no halogen toxic gases when exposed to fire, enhancing safety for personnel and equipment in confined or low-ventilation areas such as control cabinets, power plants, railway tunnels, and offshore installations.

The conductor is constructed from bare copper, providing superior electrical conductivity and durability. Rated for voltages of 300 and 500 volts, it can accommodate various low tension electrical installations with a maximum operating temperature of 90°C and a minimum of -40°C.

With a cable diameter of 2.6 mm and a length of 100 meters per reel, this red colored wire is certified under EN 50525-3-41, EAC, and CE standards, and conforms to flame retardant regulations IEC 60332-1-2, IEC 60332-2-2 along with low smoke IEC 61034 and halogen free IEC 60754-1 requirements.

Applications include wiring of appliances, fittings, installation in conduits, sealed trunking, control and switchgear cabinets, among others, particularly where safety regulations require low emission materials. This wire series H05Z-K ensures operational reliability in dry rooms and harsh environments through its cross linked insulation.

The wire has a cross-sectional area of 0.5 mm² for versatile use. Red Low Smoke Zero Halogen insulation protects from harmful emissions. Voltage rating of 300 and 500 volts for flexible electrical applications. Bare copper conductor ensures efficient conductivity.

Operating temperature range from -40°C up to 90°C allows dependable performance. Complies with strict flame retardant and low smoke standards. Certified to European and international standards EN 50525-3-41, EAC, and CE.

Ideal for industrial, railway, offshore, and power plant installations. Suitable for wiring in conduits, sealed trunking, and control cabinets. Manufactured in Germany ensuring high quality and safety.

This Lapp H05Z-K Hook Up Wire is an excellent choice for industrial wiring professionals and electrical engineers requiring reliable, high performance cables for critical installations. Browse EnvMart's range for more specialized wiring and cable products.
