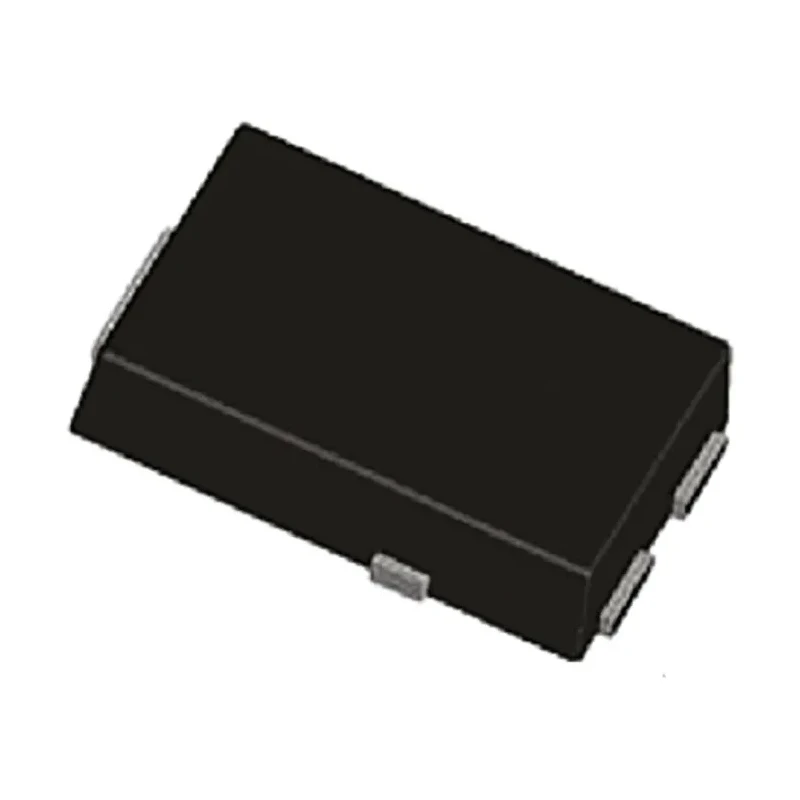

Vishay 60 V 8 A Surface Mount Schottky Rectifier 3-Pin TO-277A SS8P6C-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.75mm |
| Model | SS8P6C-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277A |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | WEEE 2002/96/EC, UL 94 V-0, RoHS 2002/95/EC, IEC 61249-2-21 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 0.7V |
Key Features
- Maximum continuous forward current of 8 amperes for reliable power handling.
- Peak reverse repetitive voltage rating of 60 volts ensuring safe operation under high voltage.
- Schottky diode type offers very low forward voltage drop and fast switching speeds.
- Operates within a temperature range of -55°C to 150°C for robust thermal performance.
- Compact TO-277A surface mount package measuring 4.75mm length, 6.15mm width, and 1.2mm height.
- Features a common cathode diode configuration with a 3-pin layout suitable for power circuits.
- Supports peak non-repetitive forward surge current up to 120 amperes for transient load resilience.
- Passes automotive AEC-Q101 standard ensuring quality and reliability in automotive applications.
Product Description
Vishay SS8P6C-M3/86A is a high-performance, surface-mounted Schottky rectifier designed for efficient power rectification with minimal voltage drop and fast switching characteristics. Housed in a compact TO-277A 3-pin package, it is ideal for discrete semiconductor applications requiring reliable rectification and power handling.
This Schottky diode supports a maximum continuous forward current of 8A and a peak reverse repetitive voltage of 60V, making it suitable for various industrial electronics, power supplies, and automotive applications where fast switching and low power loss are critical. The device operates reliably over a wide temperature range from -55°C to 150°C, ensuring durability even in harsh environments.
The diode's common cathode configuration and peak non-repetitive forward surge current capability of 120A provide robustness against transient surges. Its compliance with standards including RoHS, WEEE, UL 94 V-0, IEC 61249-2-21, and automotive AEC-Q101 highlights its quality and environmental safety adherence.
With dimensions of 4.75mm length, 6.15mm width, and 1.2mm height, this Vishay Schottky rectifier is compact and suitable for surface mount technology (SMT) assembly processes. Its reliable operation and high-performance specifications make it ideal for use in industrial power conversion, electronic circuit protection, and automotive electronics.
Maximum continuous forward current of 8 amperes for reliable power handling. Peak reverse repetitive voltage rating of 60 volts ensuring safe operation under high voltage. Schottky diode type provides low forward voltage drop and fast switching speeds.
Wide operating temperature range from -55°C to 150°C for exceptional thermal performance. Compact TO-277A surface mount package with dimensions 4.75 × 6.15 × 1.2 mm. Common cathode configuration with a 3-pin layout suitable for power electronic circuits.
Supports peak non-repetitive forward surge current up to 120 amperes for transient durability. Compliant with automotive AEC-Q101 standard for automotive sector use. Meets international RoHS and WEEE environmental and safety standards.
Manufactured in China ensuring industrial-grade quality and reliability.
This Schottky rectifier is used extensively in industrial, automotive, and electronic component manufacturing sectors for power supply rectification and protection. Vishay's industry-leading semiconductor technology guarantees performance and durability for demanding applications.
Explore the full range of Vishay semiconductor components on EnvMart for reliable industrial and electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 8 amperes.
This diode operates within a temperature range of -55°C to 150°C.
The dimensions of the TO-277A package are 4.75mm in length, 6.15mm in width, and 1.2mm in height.
It features a common cathode diode configuration with a 3-pin layout.
This model supports a peak non-repetitive forward surge current of up to 120 amperes.
Yes, it complies with the automotive AEC-Q101 standard.
It meets RoHS, WEEE, UL 94 V-0, and IEC 61249-2-21 standards.
The maximum forward voltage drop for this Schottky rectifier is 0.7 volts.
This Schottky rectifier is manufactured in China.
It is suitable for industrial electronics, power supplies, and automotive applications requiring fast switching and low power loss.
