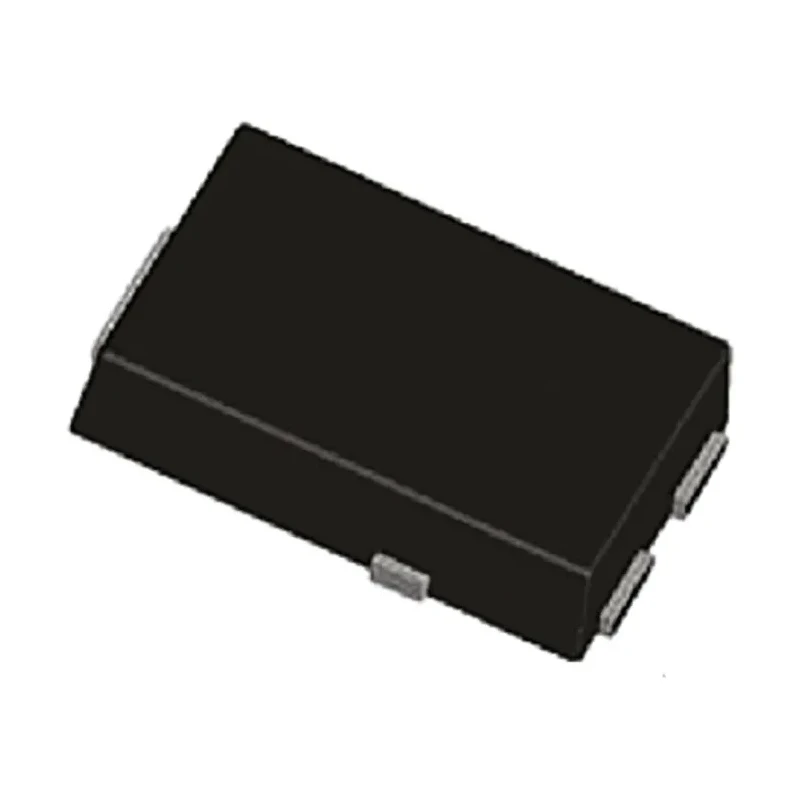

Vishay 60 V 8 A Surface Mount Schottky Rectifier TO-277A SS8P6C-M3/86A

Vishay SS8P6C-M3/86A is a high-performance Surface Mount Schottky Rectifier designed for power and switching applications requiring high efficiency and reliability. Featuring a TO-277A package type, this diode supports a maximum continuous forward current of 8 A and a peak reverse repetitive voltage of 60 V, making it suitable for a wide range of electrical and electronic devices.

The device incorporates a common cathode diode configuration with a 3-pin design, providing ease of integration into surface mount technology (SMT) assemblies. The maximum forward voltage drop of 0.7 V aids in minimizing power dissipation and increases circuit efficiency.

Engineered for strenuous environments, the rectifier withstands peak non-repetitive forward surge currents up to 120 A and operates reliably across a broad temperature range from -55°C to 150°C. It fulfills strict environmental and safety standards such as WEEE 2002/96/EC, UL 94 V-0 flammability rating, RoHS compliance, and IEC 61249-2-21, as well as the automotive qualification under AEC-Q101.

Its compact physical dimensions of 1.2 mm height, 4.75 mm length, and 6.15 mm width facilitate compact PCB layouts. Vishay’s SS8P6C-M3/86A Schottky rectifiers are designed for fast switching with very low forward voltage drop, which makes them ideal for industrial, automotive, power supply, and consumer electronic applications requiring efficient rectification with minimal power loss.

This diode offers excellent performance in power management, reducing heat generation and improving system longevity. Its design supports rapid reverse recovery, which minimizes switching losses in high-frequency circuits.

The robust TO-277A package ensures durability and enhanced thermal management during operation. Typical use cases include power rectification, DC-DC converters, and freewheeling diodes in switching power supplies. Discover the full range of Vishay Schottky Diodes & Rectifiers on EnvMart for diverse semiconductor needs in electronics and power components.
