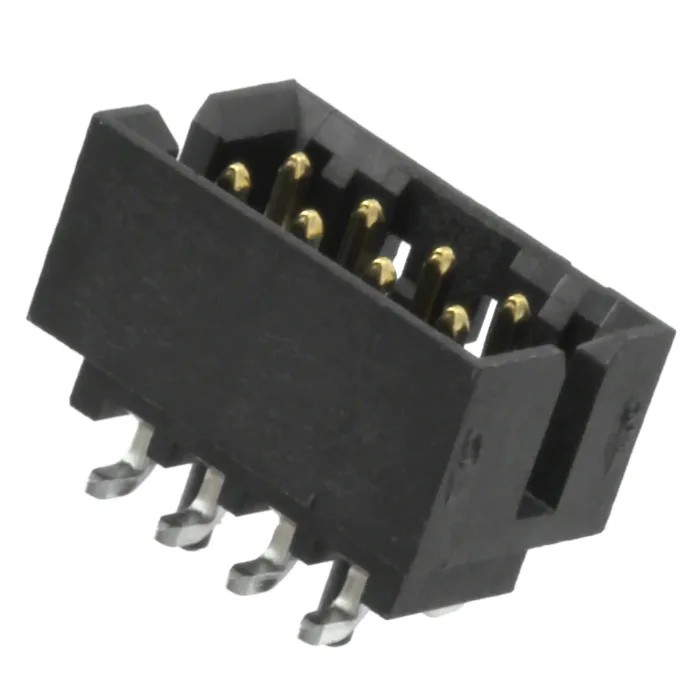

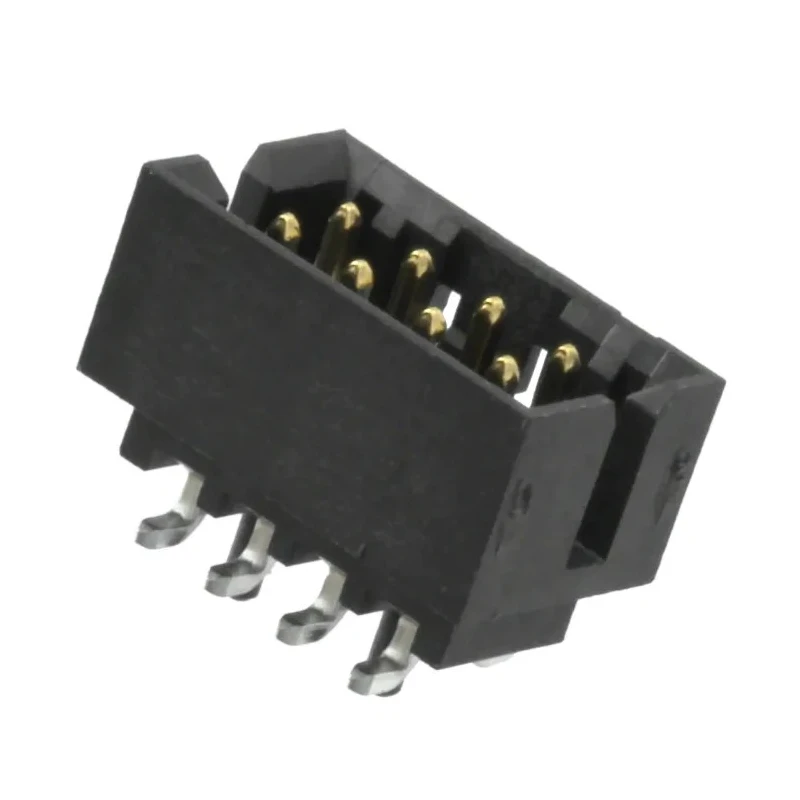

Molex Milli-Grid Series Vertical Surface PCB Header 8 Contacts 2 mm Pitch 2 Row Shrouded 878320810
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Milli-Grid |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Gold, Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Milli Grid Connector System |
Key Features
- Features a vertical orientation suitable for surface mount applications.
- Constructed with a nylon housing for durability and insulation.
- Phosphor bronze contacts plated with gold and tin for reliable conductivity.
- Designed to operate within a temperature range of -55°C to 105°C safely.
- Supports electrical current up to 2 amperes and voltage up to 125 volts.
- Shrouded connector system enhances protection and mechanical stability.
- Manufactured in Malaysia with compliance to CSA LR19980 and UL E29179 standards.
- The pitch between contacts is precisely 2 mm ensuring compatibility with standard PCB layouts.
Product Description
Molex 878320810 Milli-Grid Series Vertical Surface PCB Header is engineered for reliable electrical connections in electronic assemblies. This PCB header features 8 male contacts arranged in 2 rows with a 2 mm pitch, designed for surface mount installation on printed circuit boards. The vertical orientation aids in optimal space utilization within electronic devices.
The housing is made of high-quality nylon material providing robustness and excellent electrical insulation. Contacts are manufactured from phosphor bronze and plated with a combination of gold and tin, ensuring excellent conductivity and corrosion resistance over extended periods.
Engineered to operate within a wide temperature range from -55°C to 105°C, this PCB header is suitable for demanding environments. It supports a maximum current rating of 2A and voltage of 125V, aligning with common requirements in electronic component applications.
The connector system is shrouded to provide additional mechanical protection and prevent accidental contact with the pins. It holds certifications including CSA LR19980 and UL E29179, highlighting its adherence to safety and quality standards.
Manufactured in Malaysia, the product is ideal for industrial, laboratory, telecommunications, consumer electronics, and commercial electrical applications. It is compatible with standard PCB layouts that utilize a 2 mm pitch for seamless integration.
Vertical orientation for efficient PCB layout. Nylon housing ensures durable insulation. Phosphor bronze contacts with gold and tin plating for reliability. Wide operating temperature range from -55°C to 105°C. Electrical ratings: 2A current and 125V voltage.
Shrouded design for mechanical protection. CSA and UL approved for safety compliance. Manufactured in Malaysia ensuring quality standards. Explore more Molex PCB Headers and connectors on EnvMart for various electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 2 amperes and a voltage rating of 125 volts.
The pitch between the contacts is 2 mm, ensuring compatibility with standard PCB layouts.
The housing is made of nylon, while the contacts are constructed from phosphor bronze and plated with gold and tin for enhanced conductivity.
It operates safely within a temperature range of -55°C to 105°C.
This model features 8 male contacts arranged in 2 rows.
It is designed for surface mount installation on printed circuit boards.
Yes, it holds certifications including CSA LR19980 and UL E29179, indicating compliance with safety and quality standards.
This model features a vertical orientation, which aids in optimal space utilization within electronic devices.
It has a shrouded connector system that enhances protection and mechanical stability.
It is manufactured in Malaysia, ensuring adherence to quality standards.
It is suitable for use in industrial, laboratory, telecommunications, consumer electronics, and commercial electrical applications.
This model uses surface mount termination, making it ideal for integration into various electronic assemblies.
