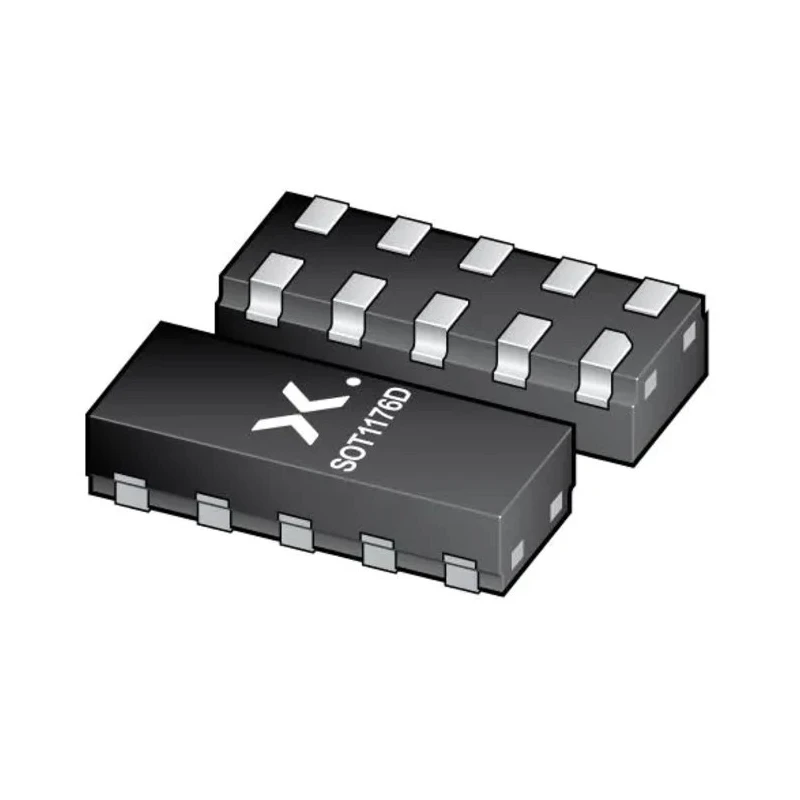

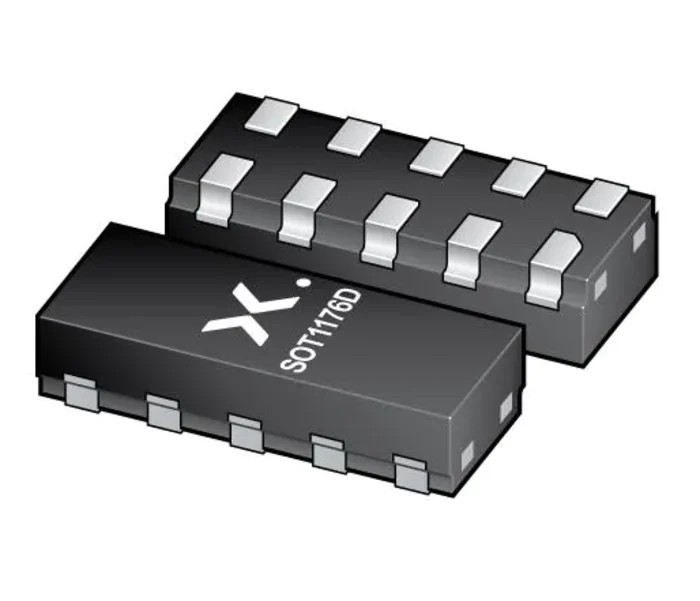

Nexperia Bi-Directional ESD Protection Device 10-Pin DFN2510D PESD4USB3B-TBSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3B-TBSX |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC 61000-4-2, Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for protecting Super Speed USB 3.2, HDMI, Display Port, eSATA, and LVDS interfaces.
- Features a low line capacitance of 0.5 pF per channel for high signal integrity.
- Provides ESD protection levels up to ±15 kV with an outstanding dynamic resistance of 0.4 Ω.
- Compact package dimensions measuring 2.5 mm length, 1 mm width, and 0.75 mm height.
- Supports automotive applications with AEC-Q101 certification and operating temperatures ranging from -55°C to 150°C.
- Optimized for infotainment and automotive A/V monitors, display, cameras, and SerDes high-speed data links.
Product Description
Nexperia PESD4USB3B-TBSX bi-directional Electrostatic Discharge (ESD) protection device in 10-Pin DFN2510D package is designed to protect sensitive high-speed interfaces such as Super Speed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, external Serial Advanced Technology Attachment (eSATA), Low Voltage Differential Signalling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) against electrostatic discharge events.
The device features a low line capacitance of only 0.5 pF per channel, ensuring signal integrity for high-speed data transmission. Its outstanding system protection is realized through an extremely deep snap-back and a dynamic resistance of just 0.4 Ω. The ESD protection level meets up to ±15 kV, according to IEC 61000-4-2 Level 4 standards, making it extremely robust in automotive and industrial environments.
The PESD4USB3B-TBSX package options include a compact 10-pin DFN2510D form with dimensions 2.5 mm length, 1 mm width, and height of 0.75 mm. Its automotive qualification includes AEC-Q101 certification and an operating temperature range from -55°C to 150°C, supporting usage in harsh automotive and industrial conditions.
Suitable industrial and automotive applications include infotainment systems like USB 2.0 and SuperSpeed USB 3.2 interfaces, HDMI 2.0, HDBaseT, automotive A/V monitors, displays, cameras, and SerDes links such as GMSL, FPD-Link, and LVDS signaling.
Low capacitance device enabling pass-through signal routing for high-speed interfaces. Bi-directional protection ensures system safety from voltage spikes in both directions. Surface mount device designed for compact PCB layouts with side-wettable flanks (SWF).
Compliant with ISO10605 and IEC 61000-4-2, Level 4 standards for ESD protection. Highly reliable and durable for continuous operation in automotive and industrial sectors.
Package contents consist of the single PESD4USB3B-TBSX bi-directional ESD protection device in 10-pin DFN2510D surface mount package. This product is categorized under ESD Protection Diodes suitable for electronics and semiconductor applications requiring high-speed data line protection.
Explore more ESD Protection Devices and Semiconductor components in EnvMart for reliable industrial-grade parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the PESD4USB3B-TBSX is 150°C.
This model has dimensions of 2.5 mm in length, 1 mm in width, and 0.75 mm in height.
It is designed to protect high-speed interfaces such as Super Speed USB 3.2, HDMI, Display Port, eSATA, and LVDS.
The PESD4USB3B-TBSX provides ESD protection levels up to ±15 kV, compliant with IEC 61000-4-2 Level 4 standards.
The clamping voltage (VC) for this ESD protection device is 5.5V.
The minimum breakdown voltage (Vbr) for this model is 6V.
It features an outstanding dynamic resistance of 0.4 Ω.
The PESD4USB3B-TBSX is AEC-Q101 certified, making it suitable for automotive applications.
The minimum operating temperature for this ESD protection device is -55°C.
The maximum reverse stand-off voltage (Vwm) is 3.3V.
This device has a pin count of 10.
It is designed as a surface mount device, suitable for compact PCB layouts.
