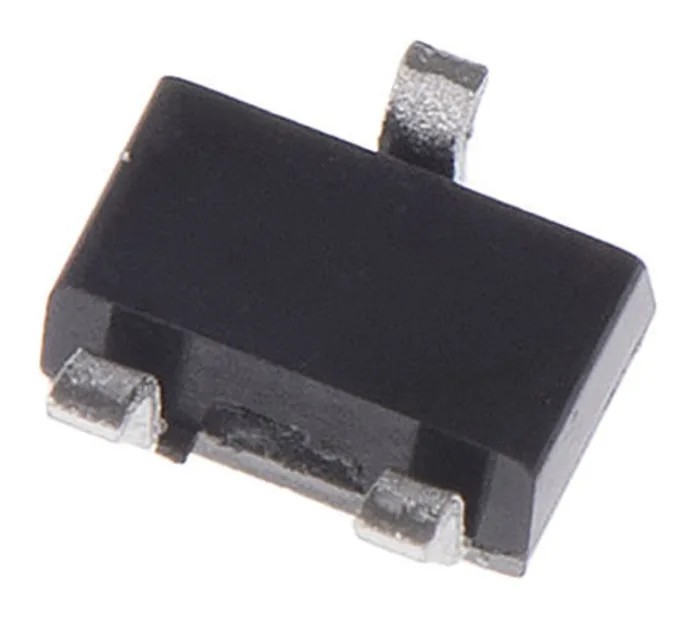

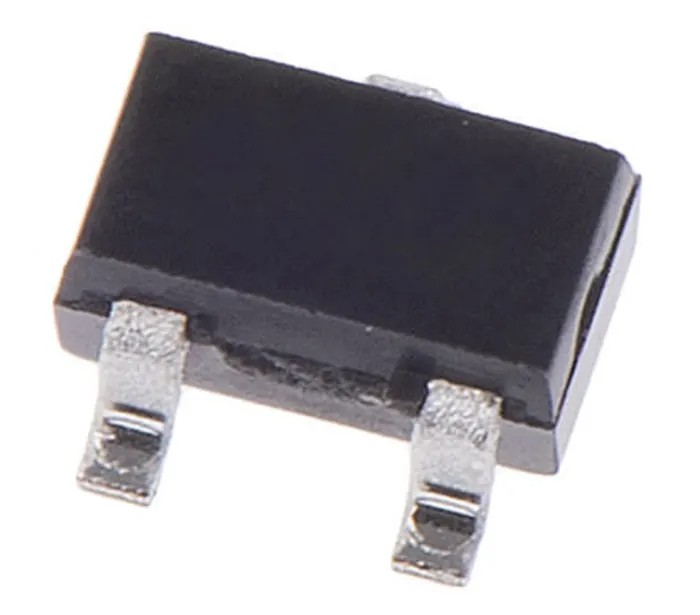

onsemi 1-Element Uni-Directional ESD Protection Diode SOT-323 5V 16A SZESD7205WTT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.7mm |
| Length | 2.2mm |
| Model | SZESD7205WTT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | ESD |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 12.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.2V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Provides high ESD protection with a maximum peak pulse current of 16A.
- Minimum breakdown voltage is 5.2V with a maximum reverse stand-off voltage of 5V.
- Compact SOT-323 surface mount package with dimensions 2.2mm length, 1.35mm width, and 0.7mm height.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Clamping voltage is rated at 12.5V ensuring efficient transient voltage suppression.
- Features low maximum reverse leakage current of 1μA.
- Meets automotive standard AEC-Q101 for enhanced reliability.
- Single diode element with 3 pins for easy PCB integration in electronic circuits.
Product Description
onsemi SZESD7205WTT1G is a single-element uni-directional ESD protection diode featuring a surface mount SOT-323 package that provides reliable transient voltage suppression for sensitive electronic devices. Designed for electronic circuitry protection, it helps to safeguard components from electrostatic discharge events up to a maximum peak pulse current of 16A.
This diode offers a minimum breakdown voltage of 5.2V and a maximum reverse stand-off voltage of 5V. It delivers exceptional clamping performance with a voltage of 12.5V, making it suitable for applications requiring fast response to ESD transients.
Physically compact, the device measures 2.2mm in length, 1.35mm in width, and 0.7mm in height, facilitating high-density PCB layouts. It supports a broad operating temperature range from -55°C to 125°C, ensuring stable performance under various environmental conditions.
Onsemi's SZESD7205WTT1G diode features a low maximum reverse leakage current of 1μA, minimizing power loss in protective circuits. Automotive-grade manufacturing complies with AEC-Q101 standards, making it suitable for automotive and industrial applications that demand high reliability.
The three-pin SOT-323 package allows easy integration into electronic designs requiring ESD protection on signal lines or power rails, enhancing the durability of circuits in fields such as telecommunications, computing, and consumer electronics.
Provides high ESD protection with a maximum peak pulse current of 16A. Minimum breakdown voltage is 5.2V with a maximum reverse stand-off voltage of 5V. Compact SOT-323 surface mount package with dimensions 2.2mm length, 1.35mm width, and 0.7mm height.
Operates reliably in temperature ranges from -55°C to 125°C. Clamping voltage is rated at 12.5V ensuring efficient transient voltage suppression. Features low maximum reverse leakage current of 1μA. Meets automotive standard AEC-Q101 for enhanced reliability.
Single diode element with 3 pins for easy PCB integration in electronic circuits.
Ideal for use in industrial, automotive, and electronic manufacturing applications requiring robust ESD protection. Choose onsemi SZESD7205WTT1G to ensure effective transient protection and circuit longevity.
Explore more ESD Protection Diodes and other semiconductor components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse current for the onsemi SZESD7205WTT1G is 16A.
This model has dimensions of 2.2mm in length, 1.35mm in width, and 0.7mm in height.
The minimum breakdown voltage is 5.2V.
The maximum reverse stand-off voltage is 5V.
The clamping voltage is rated at 12.5V, ensuring efficient transient voltage suppression.
It operates reliably in temperature ranges from -55°C to 125°C.
The maximum reverse leakage current is 1μA.
The SOT-323 package has 3 pins.
This diode meets the automotive standard AEC-Q101 for enhanced reliability.
It features a single diode element with a uni-directional configuration.
This model supports surface mounting.
The onsemi SZESD7205WTT1G is manufactured in India.
