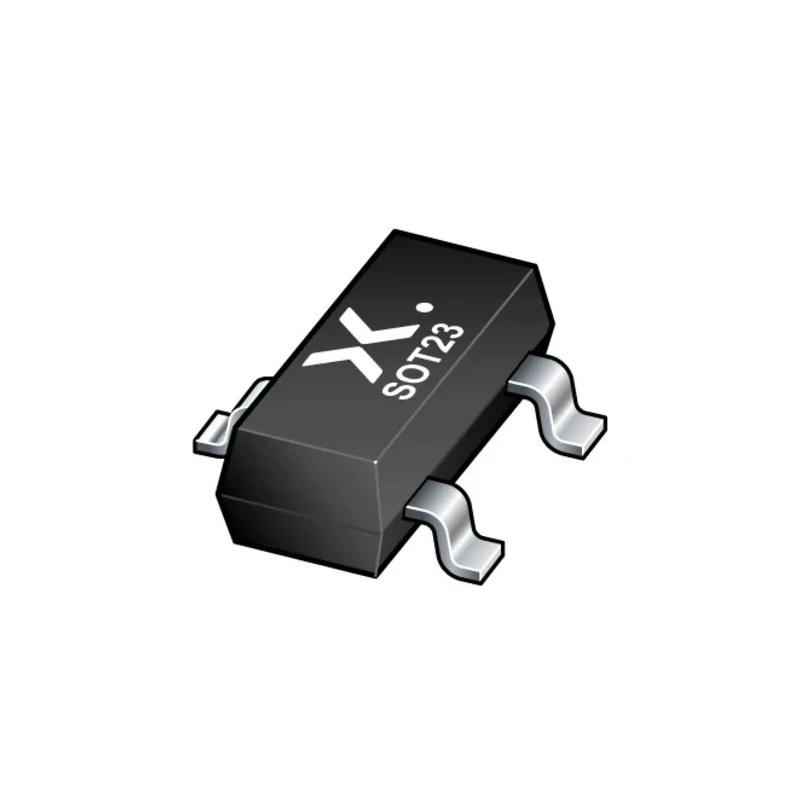

Nexperia Uni-Directional ESD Protection Diode, 3-Pin SOT-23, 5 V Reverse Stand-off, 7.2 V Breakdown, 4 A Peak PESD5V0F2UTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.9mm |
| Model | PESD5V0F2UTR |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD5V0F2UT |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 3.3V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 7.2V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 4A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Uni-directional diode designed for ESD protection on high-speed data lines.
- Minimum breakdown voltage of 7.2 volts ensures reliable clamping.
- Maximum reverse stand-off voltage of 5 volts supports stable operating conditions.
- Capable of handling peak pulse currents up to 4 amperes.
- Low clamping voltage of 3.3 volts reduces potential damage from transient events.
- Operates within a temperature range from -65°C to 150°C for industrial applications.
- Ultra-low capacitance of 0.47 pF minimizes signal distortion.
- Complies with RoHS and IEC 61000-4-2 standards ensuring quality and safety.
Product Description
Nexperia PESD5V0F2UTR is a uni-directional ESD protection diode designed to safeguard sensitive electronic components against electrostatic discharge and transient voltage spikes. Housed in a compact SOT-23 (TO-236AB) surface-mounted plastic package, it is suitable for protecting two high-speed data lines in various electronic devices.
This diode provides a minimum breakdown voltage of 7.2 volts and a maximum reverse stand-off voltage of 5 volts, ensuring effective protection during transient events. It can handle peak pulse currents up to 4 amperes with a low clamping voltage of 3.3 volts, which helps minimize damage to connected components.
Operating reliably over a wide temperature range from -65°C to 150°C, the PESD5V0F2UTR meets stringent industrial and automotive requirements, including compliance with RoHS, IEC 61000-4-2, and AEC-Q101 automotive standards. Its ultra-low capacitance of 0.47 pF ensures minimal impact on signal integrity, making it ideal for sensitive high-speed data line applications.
The device's compact size with dimensions measuring 2.9 mm in length, 1 mm in width, and 1.3 mm in height enables flexible PCB layout and space-saving in electronic assemblies. This makes it particularly suitable for use in industrial machinery, telecommunications, computing equipment, automotive electronics, and other demanding environments where ESD protection is critical.
Uni-directional ESD protection for high-speed data lines. 7.2 V minimum breakdown voltage and 5 V max reverse stand-off voltage. 4 A peak pulse current capacity with low 3.3 V clamping voltage. Wide operating temperature range: -65°C to 150°C.
Compliance with RoHS, IEC 61000-4-2, and automotive AEC-Q101 standards. Ultra-low capacitance of 0.47 pF for signal integrity. Compact SOT-23 package enables flexible design.
This Nexperia PESD5V0F2UTR diode is ideal for protecting sensitive electronics in industrial, telecommunications, automotive, and manufacturing sectors requiring reliable ESD protection. Explore EnvMart's extensive semiconductor and ESD Protection Diode catalog for more industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of the PESD5V0F2UTR diode is 7.2 volts.
The maximum reverse stand-off voltage for this diode is 5 volts.
It can handle peak pulse currents up to 4 amperes.
The clamping voltage is 3.3 volts, which helps minimize damage during transient events.
The diode operates reliably within a temperature range from -65°C to 150°C.
This model measures 2.9 mm in length, 1 mm in width, and 1.3 mm in height.
It is housed in a compact SOT-23 (TO-236AB) surface-mounted plastic package.
The PESD5V0F2UTR complies with RoHS, IEC 61000-4-2, and AEC-Q101 automotive standards.
It has an ultra-low capacitance of 0.47 pF, which minimizes signal distortion.
This diode is uni-directional, designed specifically for ESD protection.
The maximum reverse leakage current is 50 nA.
This model is suitable for protecting sensitive electronics in industrial machinery, telecommunications, computing equipment, and automotive electronics.
