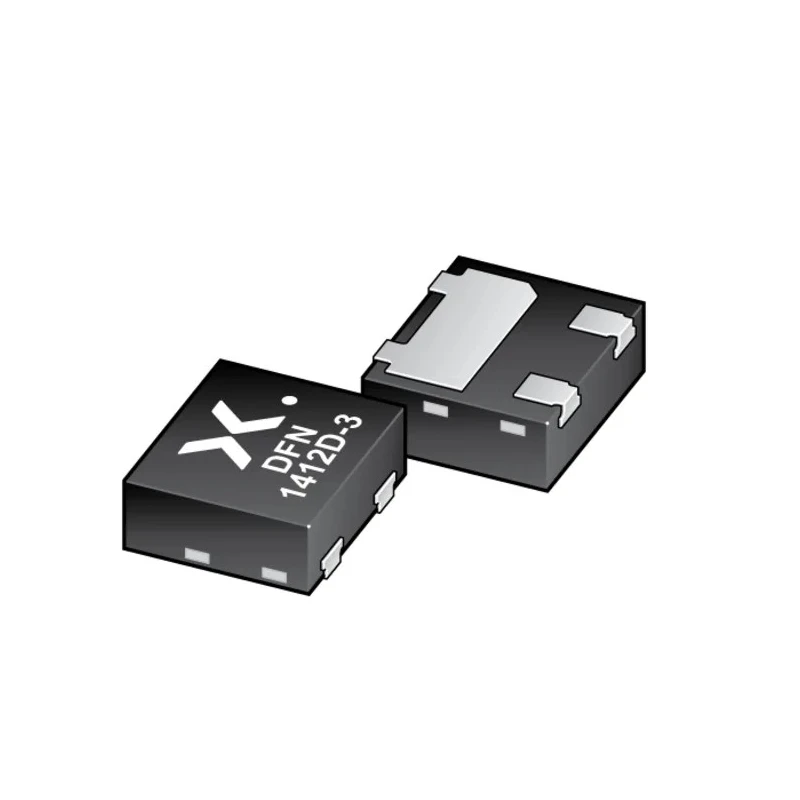

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3, 27V Reverse Stand-Off, 2.5A Peak Pulse PESD2CANFD27V-QCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 1.4mm |
| Model | PESD2CANFD27V-QCZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD27V-QC |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 44V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Compact 3-pin DFN1412D-3 surface mount package designed for automotive applications.
- Provides a reverse stand-off voltage of 27 volts to protect sensitive circuits.
- Handles peak pulse current up to 2.5 amperes for transient voltage spikes.
- Low clamping voltage of 44 volts helps minimize voltage spikes during ESD events.
- Wide operating temperature range from -65°C to 150°C for harsh environments.
- Low leakage current of 50 nanoamperes ensures minimal power loss during operation.
- Complies with IEC 61000-4-2 and is AEC-Q101 qualified for automotive standards.
- Low capacitance of 6 pF maintains signal integrity in high-speed automotive networks.
Product Description
The Nexperia PESD2CANFD27V-QCZ is a bi-directional ESD protection diode packaged in an ultra-small 3-pin DFN1412D-3 surface-mount device, specifically designed for automotive in-vehicle network applications requiring electrostatic discharge protection.
This device provides excellent bidirectional transient voltage suppression with a minimum breakdown voltage of 28 volts and a maximum reverse stand-off voltage of 27 volts. Its low clamping voltage of 44 volts at 2.5 amperes peak pulse current ensures effective suppression of voltage spikes that can damage sensitive electronic components.
With a wide operating temperature range from -65°C to 150°C, this diode maintains reliable performance in harsh automotive environments. The device exhibits a very low maximum reverse leakage current of 50 nanoamperes and low capacitance of 6 pF, which helps to preserve signal integrity in high-speed data lines.
The PESD2CANFD27V-QCZ complies with IEC 61000-4-2 for Electrostatic Discharge immunity and adheres to RoHS standards for environmental compliance. It is also qualified to the automotive AEC-Q101 standard, making it suitable for critical automotive electronic systems.
Typical applications include protection of CAN bus lines and other automotive network systems vulnerable to electrostatic discharges. The device's compact and leadless DFN1412D-3 package with side wettable flanks allows for reliable solder joint inspection and robust mechanical strength.
Compact 3-pin DFN1412D-3 package for space-saving PCB designs. Bidirectional ESD protection up to 20 kV (IEC 61000-4-2). Low capacitance minimizes signal distortion in data lines. High temperature range supports automotive and industrial environments.
AEC-Q101 qualified for automotive reliability and quality standards.
This high-quality ESD Protection Diode is ideal for automotive, industrial, and electronic manufacturing applications requiring robust transient voltage suppression for sensitive circuits. Explore more semiconductor products and automotive grade components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage is 27 volts.
It can handle a peak pulse current of up to 2.5 amperes.
The clamping voltage is 44 volts at a peak pulse current of 2.5 amperes.
It operates within a temperature range of -65°C to 150°C.
The low capacitance of 6 pF helps to minimize signal distortion, preserving signal integrity in high-speed data lines.
It complies with IEC 61000-4-2 for electrostatic discharge immunity and adheres to RoHS standards.
Yes, it is qualified to the automotive AEC-Q101 standard, making it suitable for critical automotive electronic systems.
It is packaged in a compact 3-pin DFN1412D-3 surface mount device.
The dimensions are 1.2 mm in height, 1.4 mm in length, and 0.48 mm in width.
The maximum reverse leakage current is 50 nanoamperes.
It is typically used for protecting CAN bus lines and other automotive network systems vulnerable to electrostatic discharges.
The minimum breakdown voltage is 28 volts.
