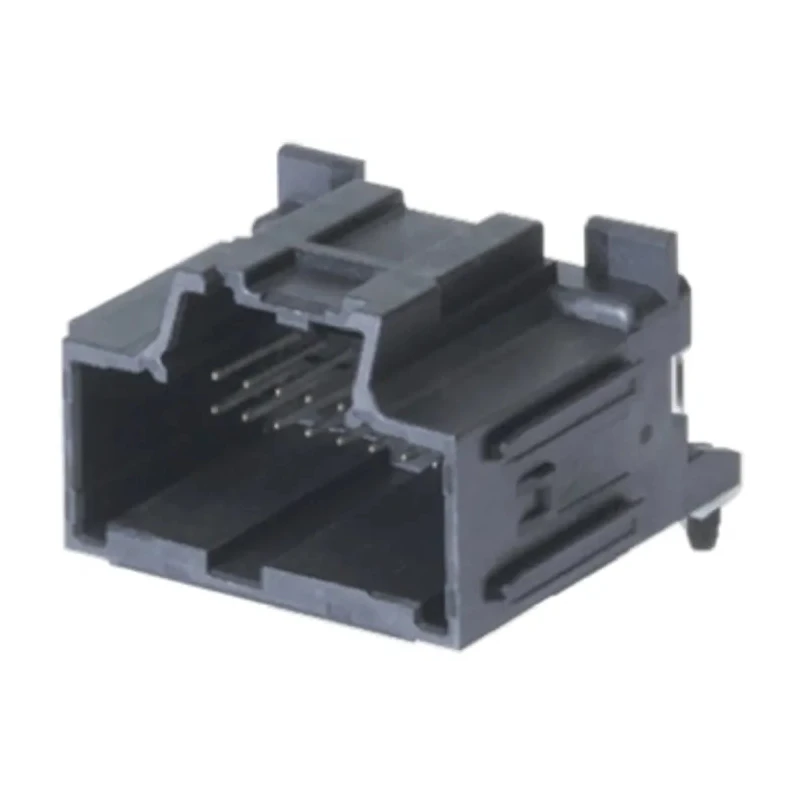

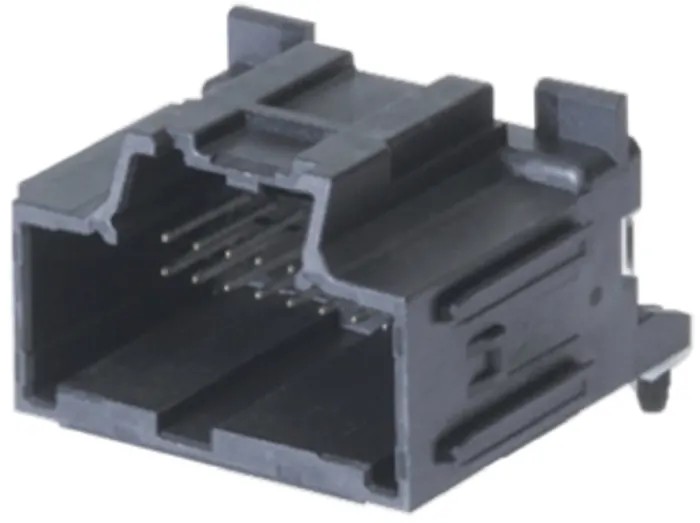

Molex Stac64 Automotive Connector Male Black Through Hole 16 Way Crimp Termination 10A 34691-0160
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Colour | Black |
| Current | 10A |
| Height | 22.05mm |
| Depth | 31.89mm |
| IP Rating | IP67 |
| Width | 28.96mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Stac64 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Contact Plating | Tin |
| Number of Contacts | 16 |
Key Features
- Rated current capacity of 10A ensuring efficient power transmission.
- Constructed with thermoplastic housing providing high temperature resistance.
- Black color with tin-plated brass contacts for corrosion resistance.
- Features 16 contacts arranged in two rows for compact design.
- Designed for through-hole mounting on PCBs with crimp termination type.
- Wide operating temperature range from -40°C to 100°C for durability.
- Certified to IP67 rating, providing excellent protection against dust and moisture.
- Compatible with the Molex Stac64 series connector system.
Product Description
Molex 34691-0160 is a high-quality automotive connector male black through hole with 16 way crimp termination rated for 10A current. This connector is part of the Stac64™ series, designed for stackable, right-angle PCB mounting applications, providing reliable and durable electrical connections in automotive and transportation electronics.
The connector features a housing made of high-temperature thermoplastic material capable of withstanding infrared and wave-free solder processing. It incorporates dovetail moldings for stackability in large assemblies, facilitating versatile configurations for complex electronic modules.
With a black finish, the connector uses brass contact material with tin plating, enhancing corrosion resistance and electrical conductivity. It has two rows of contacts and a through-hole mount type designed for firm PCB attachment. The modular design, including PCB alignment posts and stand-offs, ensures accurate mechanical placement and electrical performance.
The product is rated to an IP67 standard, ensuring protection against dust ingress and temporary immersion, which suits harsh automotive environments. It operates reliably within a temperature range of -40°C to 100°C, making it suitable for various automotive interior applications such as lighting, radios, and instrument panels, as well as non-automotive electronics requiring high durability.
Rated current capacity of 10A for effective electrical performance. Thermoplastic housing suited for high-temperature soldering processes. Corrosion-resistant brass contacts with tin plating. 16 contacts arranged in two rows for efficient space usage.
Through-hole mount for robust PCB installation. IP67 rating offering dust and moisture protection. Operating temperature range from -40°C to 100°C. Stackable design facilitates modular assemblies. Ideal for automotive and non-automotive electronic applications.
Manufactured in China with consistent quality standards.
This Molex connector is part of a comprehensive range ideal for automotive electrical connectors, ensuring dependable performance in demanding industrial and transportation environments. Explore more Automotive Connectors and electronic components on EnvMart to meet your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a rated current capacity of 10A, ensuring efficient power transmission.
It features a housing made of thermoplastic material and brass contacts with tin plating, which enhances corrosion resistance and electrical conductivity.
This connector is certified to an IP67 rating, providing excellent protection against dust and moisture.
It operates reliably within a temperature range of -40°C to 100°C, making it suitable for various applications.
The connector features 16 contacts arranged in two rows for efficient space usage.
This model uses a crimp termination type, designed for secure connections.
It is designed for through-hole mounting on PCBs, ensuring a firm attachment.
The connector has a height of 22.05mm, a width of 28.96mm, and a depth of 31.89mm.
Yes, it incorporates dovetail moldings for stackability in large assemblies, facilitating versatile configurations.
This connector is a male type, designed for specific mating applications.
It is manufactured in China, adhering to consistent quality standards.
This model is part of the Molex Stac64 series, which is designed for stackable, right-angle PCB mounting applications.
