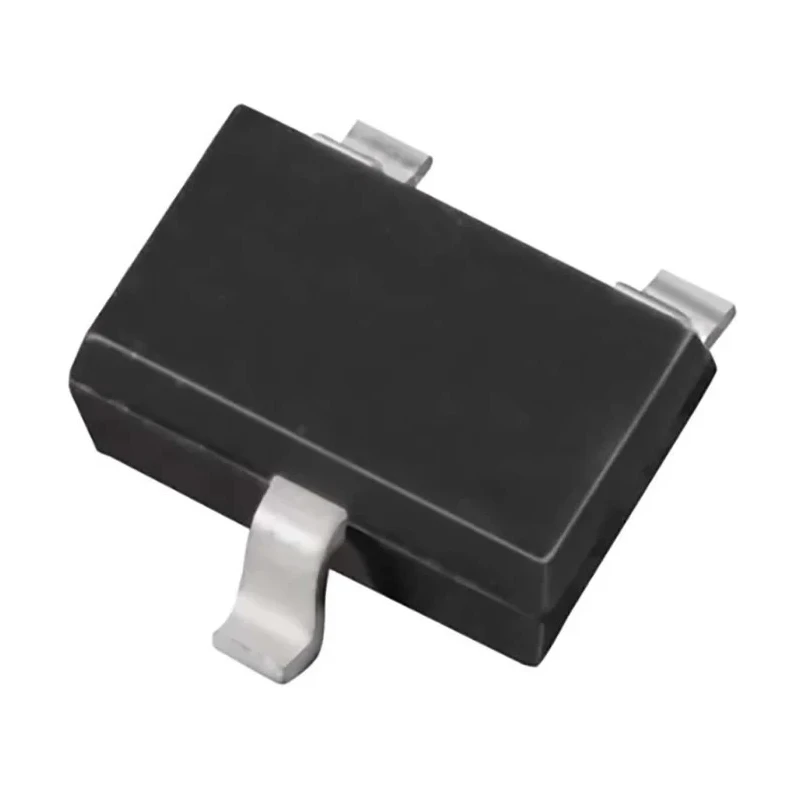

DiodesZetex P-Channel MOSFET, 30 V, 380 mA, Enhancement Mode, 3-Pin SOT-323 Package DMP31D7LW-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex P-Channel MOSFET, 30 V, 380 mA, Enhancement Mode, 3-Pin SOT-323 Package DMP31D7LW-7

Name: DiodesZetex P-Channel MOSFET, 30 V, 380 mA, Enhancement Mode, 3-Pin SOT-323 Package DMP31D7LW-7
Brand: DiodesZetex
SKU: 165690
Price: 0.08 USD
Availability: InStock



Category MOSFET Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	900μm
Length	2mm
Model	DMP31D7LW-7
Width	1.8mm
Mount Type	Surface
Series	DMP31
Maximum Operating Temperature	150°C
Package Type	SOT-323
Minimum Operating Temperature	-55°C
Pin Count	3
Automotive Standard	AEC-Q101
Channel Type	Type P
Maximum Continuous Drain Current Id	380mA
Maximum Drain Source Voltage Vds	30V
Maximum Drain Source Resistance Rds	1.7Ω
Channel Mode	Enhancement
Maximum Power Dissipation Pd	0.29W
Typical Gate Charge Qg @ Vgs	0.36nC
Maximum Gate Source Voltage Vgs	20V
Forward Voltage Vf	-1.2V

Key Features

Features a surface mount 3-pin SOT-323 package for compact PCB design.
Enhancement mode device designed for low on-resistance operation.
Can operate within temperature ranges from -55°C up to 150°C.
Low input capacitance and ESD protected gate enhance reliability.
Capable of dissipating up to 0.29 W of power efficiently.
Maximum gate source voltage rating is 20 V, ensuring robust control.
Typical gate charge of 0.36 nC supports fast switching applications.
Meets automotive standard AEC-Q101 for quality assurance.

Product Description

The DiodesZetex DMP31D7LW-7 is a P-channel enhancement mode MOSFET engineered for efficient power management in compact electronic devices. Rated for a maximum drain source voltage of 30 V and a continuous drain current of 380 mA, this MOSFET suits applications requiring low on-resistance and superior switching performance.

Its surface mount SOT-323 3-pin package enables space-saving PCB layouts, while the device's low input capacitance and ESD protected gate ensure high reliability and stable operation. The MOSFET supports operation in demanding thermal environments, withstanding temperatures from -55°C to 150°C, making it suitable for industrial and automotive applications.

Designed for low power dissipation up to 0.29 W, the DMP31D7LW-7 manages thermal load effectively. The maximum gate source voltage rating of 20 V coupled with a typical gate charge of 0.36 nC enables fast and efficient switching, ideal for power management circuits.

Product dimensions include a length of 2 mm, width of 1.8 mm, and height of 900 μm, supporting miniaturization in advanced designs. Additionally, compliance with automotive standard AEC-Q101 ensures this MOSFET meets stringent quality and reliability standards.

This MOSFET is primarily used in industrial electronics, power management modules, automotive electronics, and various semiconductor applications requiring efficient, reliable switching components.

Features a surface mount 3-pin SOT-323 package for compact PCB design. Enhancement mode device designed for low on-resistance operation. Can operate within temperature ranges from -55°C up to 150°C. Low input capacitance and ESD protected gate enhance reliability.

Capable of dissipating up to 0.29 W of power efficiently. Maximum gate source voltage rating is 20 V, ensuring robust control. Typical gate charge of 0.36 nC supports fast switching applications. Dimensions: length 2 mm, width 1.8 mm, and height 900 µm for compact electronics.

Meets automotive standard AEC-Q101 for quality assurance. Explore more semiconductor products by DiodesZetex on EnvMart for reliable power and control solutions.
