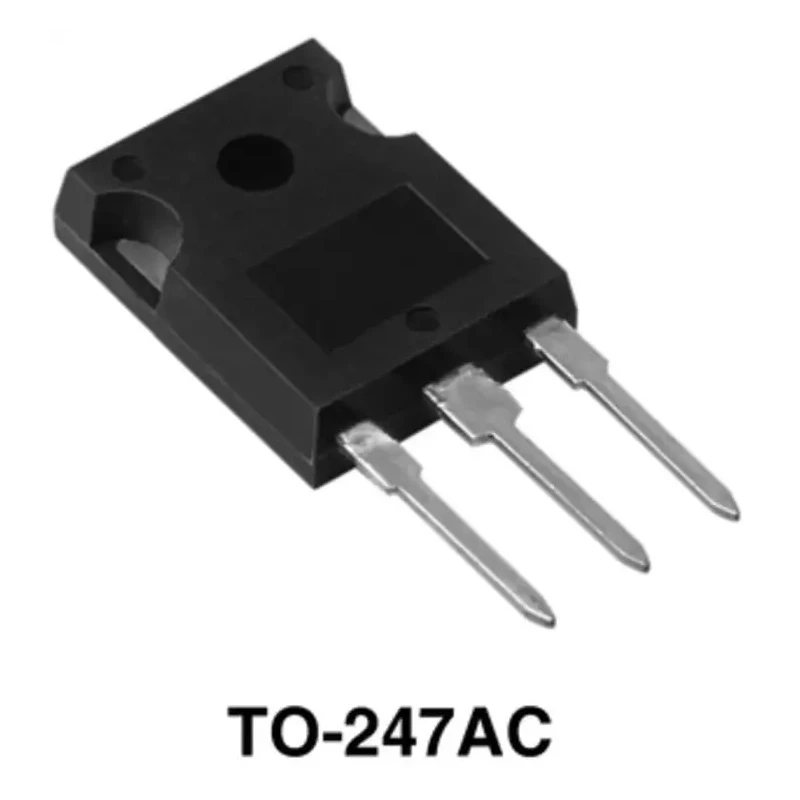

Vishay Switching Diode, Single, 60 A, 3-Pin, 300 V TO-247AC VS-60APH03-N3

Vishay VS-60APH03-N3 is a state-of-the-art ultrafast recovery switching diode designed for high efficiency and reliable switching applications. It is a single diode device configured with three pins housed in a TO-247AC through-hole package, capable of handling a maximum forward current of 60 A and a peak reverse voltage of 300 V. The device exhibits a very low forward voltage drop of 0.85 V and a peak reverse recovery time of 64 ns, minimizing switching losses and dissipation in power circuits.

The diode features a planar construction combined with platinum doped lifetime control, ensuring ruggedness, durability, and stable lifetime performance under demanding industrial and commercial conditions. This diode can operate across a wide temperature range from -55°C to 175°C, making it suitable for applications that require thermal resilience.

This component is especially optimized for applications including plasma display panels (PDP), switch-mode power supplies (SMPS), uninterruptible power supplies (UPS), DC/DC converters, and as freewheeling diodes in low voltage inverters. Its hyperfast recovery time and low leakage current contribute to improved overall efficiency and reduced electromagnetic interference (EMI) in high-frequency power electronics.

Ultrafast recovery rectifier with low forward voltage drop and leakage current. Planar structure and platinum doped lifetime control for enhanced reliability. Designed for SMPS, UPS, DC/DC converter output rectification, and inverter freewheeling.

Wide operating temperature range of -55°C to 175°C for industrial conditions. Through-hole TO-247AC package with 3-pin mount for robust mechanical support. Peak non-repetitive forward surge current up to 450 A for transient tolerance.

Compact physical size: 15.87 mm length, 5.31 mm width, 20.7 mm height.

These Vishay Switching Diodes are ideal for industrial power management and electronic manufacturing environments. Their combination of electrical and mechanical specifications support applications in consumer electronics, industrial equipment, and renewable energy systems.
