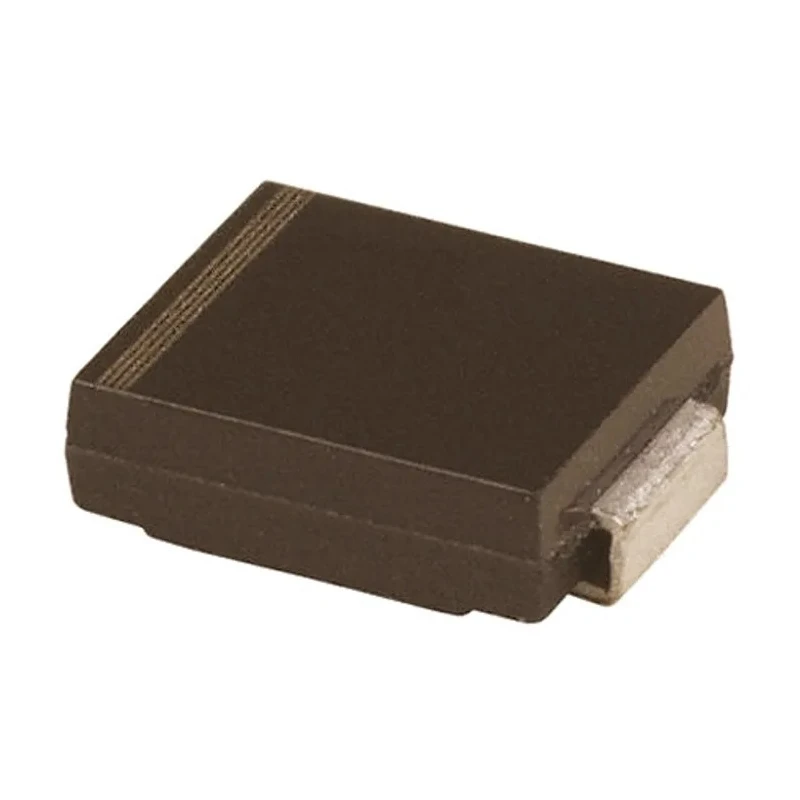

Vishay Silicon Junction Switching Diode 3 A 50 V DO-214AA Surface Mount ES3A-E3/57T

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Switching Diode 3 A 50 V DO-214AA Surface Mount ES3A-E3/57T

Name: Vishay Silicon Junction Switching Diode 3 A 50 V DO-214AA Surface Mount ES3A-E3/57T
Brand: Vishay
SKU: 107098
Price: 0.37 USD
Availability: InStock



Category Switching Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.42mm
Length	7.11mm
Model	ES3A-E3/57T
Width	6.22mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Case	DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade
Package Type	DO-214AA
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Polarity	Colour band denotes cathode end
Terminals	Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	900mV
Peak Reverse Recovery Time trr	50ns
Maximum Forward Current If	3A
Maximum Peak Reverse Repetitive Voltage Vrrm	50V

Key Features

Features ultrafast reverse recovery time for efficient switching performance.
Glass passivated chip junction ensures reliability and stability.
Low forward voltage drop minimizes power loss during operation.
Suitable for surface mount technology with 2-pin configuration.
High forward surge current capability up to 100 A.
Operating temperature range from -55°C to 150°C for diverse applications.
Matte tin-plated leads facilitate reliable soldering per industry standards.
Colour band indicates cathode polarity for correct device orientation.

Product Description

Vishay ES3A-E3/57T silicon junction switching diode is a high-performance rectifier designed for surface mount applications requiring up to 3 A forward current and 50 V reverse voltage. Housed in a compact DO-214AA package, this diode features a glass passivated chip junction that provides enhanced reliability and a low forward voltage drop, making it ideal for efficient power conversion in electronic circuits.

This device exhibits an ultrafast reverse recovery time of 50 ns, reducing switching losses and improving overall efficiency in high-frequency applications. The diode's robust surge current rating of 100 A ensures durability under transient conditions, while its matte tin-plated leads conform to J-STD-002 and JESD 22-B102 standards to support excellent solderability.

Designed for industrial, telecommunications, and consumer electronics, the ES3A-E3/57T supports switching mode converters and inverters, delivering high efficiency and reliability in power management tasks. The component meets commercial grade as RoHS-compliant and incorporates a moulding compound satisfying UL 94 V-0 flammability rating, enhancing safety and durability.

Key mechanical dimensions include a length of 7.11 mm, width of 6.22 mm, and height of 2.42 mm, all facilitating compact PCB layouts. The polarity is clearly marked with a colour band denoting the cathode end to aid accurate placement during assembly.

Features ultrafast reverse recovery time for efficient switching performance. Glass passivated chip junction ensures reliability and stability. Low forward voltage drop minimizes power loss during operation. Suitable for surface mount technology with 2-pin configuration.

High forward surge current capability up to 100 A. Operating temperature range from -55°C to 150°C for diverse applications. Matte tin-plated leads facilitate reliable soldering per industry standards. Colour band indicates cathode polarity for correct device orientation.

Complies with JESD 201 class 1A whisker test for lead integrity. Ideal for high-frequency rectification and freewheeling in switching mode converters and inverters. Explore our extensive catalog of semiconductor Switching Diodes at EnvMart for reliable power supply designs and robust performance in demanding industrial and electronic systems.
