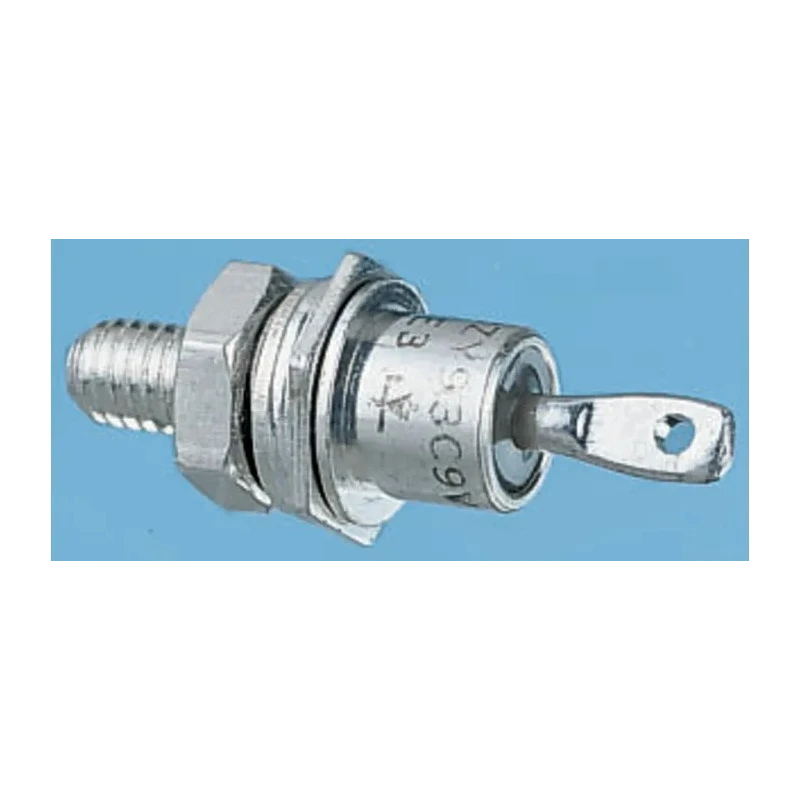

Vishay 400 V 25 A Switching Diode 2-Pin DO-203AA VS-25FR40
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-25FR40 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-25F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 373A |
| Maximum Forward Voltage Vf | 1.3V |
| Vishay 600 V 25 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- Standard recovery power diode designed for high efficiency in switching applications.
- Package type is industry-standard DO-203AA ensuring reliable mounting with screw type installation.
- Maximum forward voltage of 1.3 V suitable for power regulation with low losses.
- Operating temperature range from -65°C to 175°C for demanding industrial conditions.
- Peak non-repetitive surge forward current rating of 373 A for transient load resilience.
- Configured with stud anode and switching rectifier type ideal for discrete semiconductor circuits.
Product Description
Vishay VS-25FR40 is a high-performance switching diode packed in a 2-pin DO-203AA package, designed to provide efficient current rectification with a peak reverse repetitive voltage of 400 V and a continuous forward current rating of 25 A. This diode features a standard recovery design optimized for switching applications across various industrial and electronic systems requiring robust power handling.
The diode's screw mount type ensures secure installation within power circuits. It operates effectively within a wide temperature range from -65°C, allowing use in harsh environments, up to a maximum operating temperature of 175°C. Its compact and reliable form factor with length of 12.69 mm, diameter 11 mm, and height 31.8 mm accommodates tight PCB layouts while supporting high surge current demands up to 373 A non-repetitive peak.
This device is ideal for use in power converters, industrial electronics, and switching power supplies where rapid switching capabilities, low forward voltage of 1.3 V, and thermal stability are critical. The diode configuration with stud anode and the switching rectifier type supports efficient handling of power signals in discrete semiconductor circuits.
Standard recovery diode optimized for switching applications. Industry-standard DO-203AA 2-pin package with screw mount type. Robust electrical ratings: 400 V peak reverse voltage, 25 A forward continuous current. High surge current tolerance at 373 A peak forward surge current.
Wide operating temperature range from -65°C to 175°C for industrial use. Compact dimensions suitable for space-constrained layouts. Stud anode configuration for reliable power handling.
As a trusted Vishay semiconductor, the VS-25FR40 provides dependable Switching Diode performance in a variety of industrial, laboratory, manufacturing, and electronics applications. Users seeking power efficiency with steady operation under demanding electrical loads will value the robust specifications and durable packaging.
Explore Vishay components within EnvMart’s semiconductor category for extended diode and rectifier selections meeting professional design standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the VS-25FR40 diode is 25 A.
The peak reverse repetitive voltage for the VS-25FR40 is 400 V.
This model operates within a temperature range from -65°C to 175°C.
The package type of this diode is DO-203AA, which is an industry-standard configuration.
The maximum forward voltage drop for the VS-25FR40 is 1.3 V.
The peak non-repetitive forward surge current rating is 373 A.
This diode features a screw mount type for secure installation.
The dimensions are 12.69 mm in length, 11 mm in width, and 31.8 mm in height.
This model is configured as a switching rectifier type.
The diode configuration is a stud anode.
The VS-25FR40 is manufactured in India.
This diode is suitable for use in power converters, industrial electronics, and switching power supplies.
