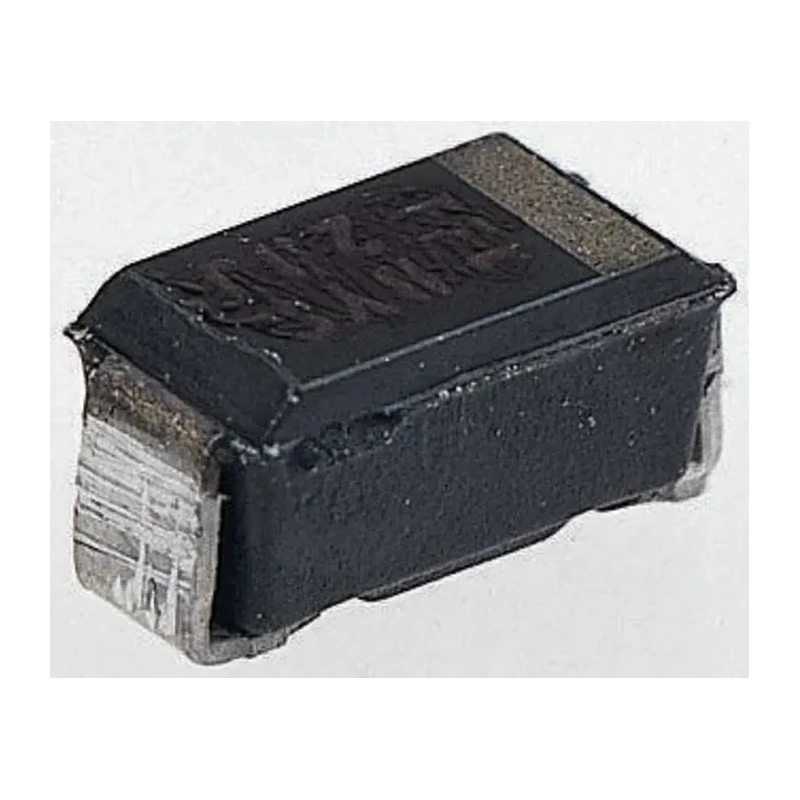

onsemi Switching Diode 600 V 2 A Surface Mount DO-214AA MURS160T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MURS160T3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Series | MURS120T3G |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- The diode has a peak non-repetitive forward surge current of 35 A.
- Maximum forward voltage is 1.25 V ensuring efficient switching performance.
- Compact dimensions include length 4.32 mm, width 3.56 mm, and height 2.13 mm.
- It operates reliably within a temperature range from -65°C to 175°C.
- The diode configuration is single with 2 pins optimized for switching applications.
- Peak reverse recovery time is 75 ns, supporting high-speed switching.
- Rated for low peak reverse current of 5 μA enhancing efficiency.
- No automotive standard certification applies to this product.
Product Description
The onsemi MURS160T3G is a high-performance switching diode designed for industrial and electronic applications requiring reliable switching capabilities in a compact surface mount DO-214AA package.
This diode supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 600 V, suitable for power electronics and discrete semiconductor uses. The device exhibits a maximum forward voltage of 1.25 V and a peak non-repetitive forward surge current of 35 A, ensuring durability under transient loads.
With a peak reverse recovery time of 75 ns and low peak reverse current of 5 μA, it supports high-frequency switching applications efficiently. The physical package dimensions are 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height, making it suitable for compact PCB designs with surface mount technology.
Operating temperature ranges from -65°C to 175°C, allowing usage in diverse industrial and electronic environments including power supplies, converters, and signal switching modules.
This diode does not carry automotive certification but is widely applicable in consumer electronics, industrial automation, power management, and electronics manufacturing. Key features include a single diode configuration with 2 pins and a switching rectifier type optimizing performance for switching operations.
The diode has a peak non-repetitive forward surge current of 35 A. Maximum forward voltage is 1.25 V ensuring efficient switching performance. Compact dimensions include length 4.32 mm, width 3.56 mm, and height 2.13 mm.
It operates reliably within a temperature range from -65°C to 175°C. The diode configuration is single with 2 pins optimized for switching applications. Peak reverse recovery time is 75 ns, supporting high-speed switching.
Rated for low peak reverse current of 5 μA enhancing efficiency. No automotive standard certification applies to this product. Explore high-quality Switching Diodes and semiconductors at EnvMart for your industrial, electronic, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The diode has dimensions of 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height.
The peak non-repetitive forward surge current is rated at 35 A.
The maximum forward voltage for this diode is 1.25 V.
This diode operates reliably within a temperature range from -65°C to 175°C.
The peak reverse recovery time is 75 ns, supporting high-speed switching applications.
The MURS160T3G features a single diode configuration with 2 pins optimized for switching applications.
This diode uses a surface mount DO-214AA package type.
The rated peak reverse current is 5 μA, enhancing efficiency.
This diode is applicable in consumer electronics, industrial automation, power management, and electronics manufacturing.
The rectifier type of this model is switching, making it suitable for efficient switching performance.
