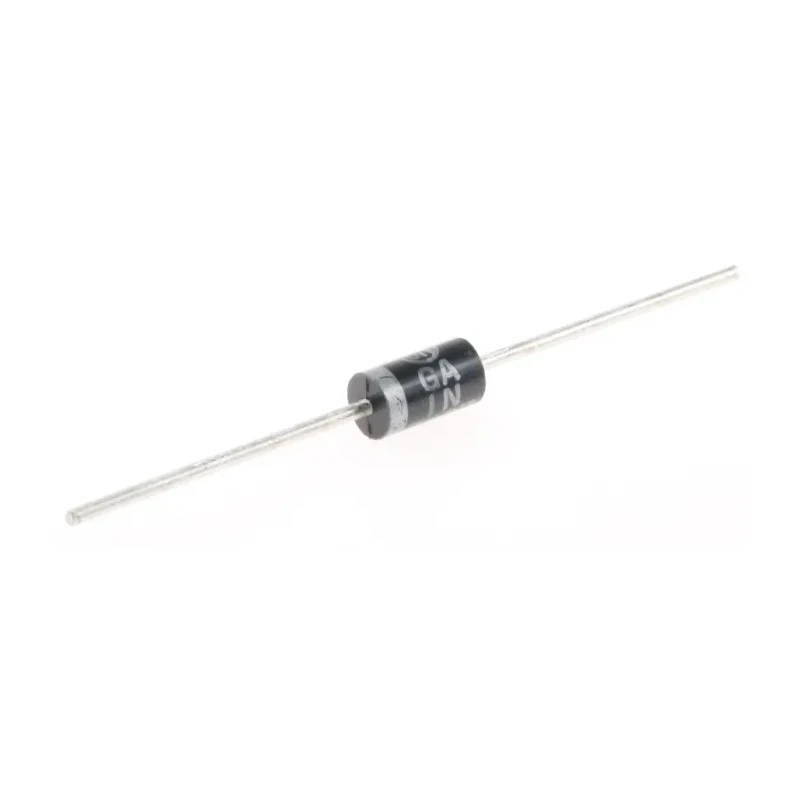

onsemi Silicon Junction, Single Diode, 3 A Forward Current, 800 V Peak Reverse Voltage, 2-Pin DO-41 Package 1N5407G

onsemi 1N5407G silicon junction diode is designed for industrial and commercial applications requiring a robust rectifier with high forward current capability of 3 amperes and high peak reverse voltage of 800 volts. It features a two-pin DO-41 through-hole package that is widely used for easy PCB mounting and enhanced thermal dissipation.

This diode is characterized by a maximum forward voltage drop of 1 V and a peak non-repetitive forward surge current of 200 A, making it ideal for power rectification, switching, and protection circuits in electronics and electrical equipment.

The diode operates reliably over an extensive temperature range from -65°C to +150°C, supporting diverse environmental conditions common in industrial, automation, and power supply systems.

Single silicon junction diode configuration for high reliability. Maximum forward current rating of 3 amperes. Rated for 800 volts maximum peak reverse repetitive voltage. DO-41 package type suitable for through-hole mounting.

Compact dimensions: length 9.5 mm, diameter 5.3 mm, height 9.5 mm. Operating temperature range from -65°C to 150°C. Capable of handling 200 A peak non-repetitive forward surge current. No automotive or industrial certification approvals.

This diode is commonly used in power supplies, rectifier units, switching circuits, and other semiconductor applications requiring stable and efficient unidirectional current flow. It fits applications in industrial electronics, power electronic devices, HVAC control systems, manufacturing equipment, and general electronics repair and assembly.

Choose onsemi 1N5407G for reliable, long-lasting silicon diode performance in demanding electrical and electronic environments. Explore more semiconductor products like Switching Diodes and rectifiers on EnvMart for your industrial and electronic component needs.
