Vishay 1 kV 70 A Switching Diode 2-Pin DO-203AB VS-70HFR100

Free Delivery in India | Lowest Global Shipping Charges

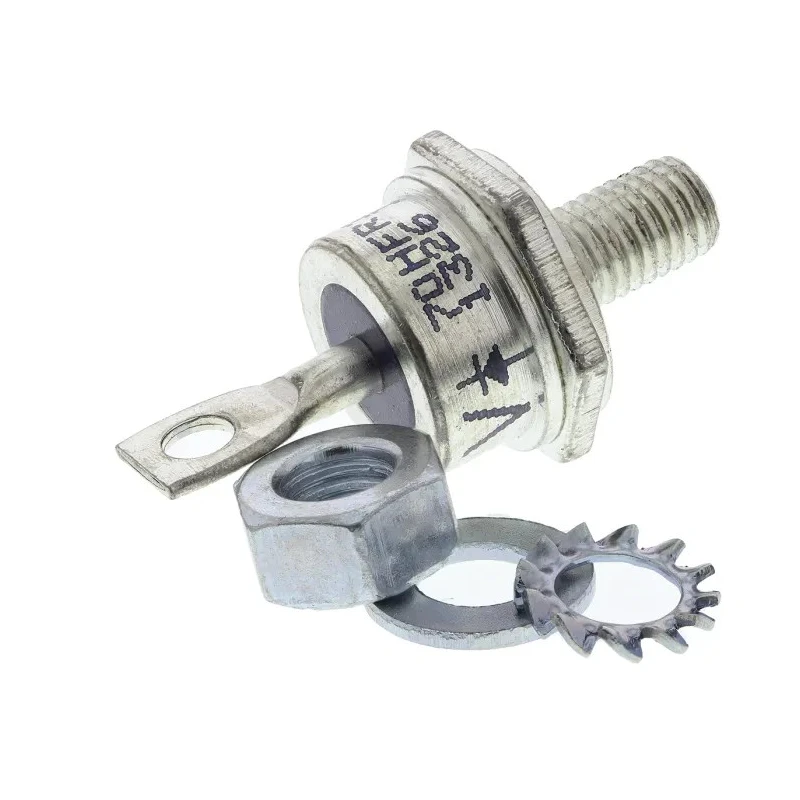

Vishay 1 kV 70 A Switching Diode 2-Pin DO-203AB VS-70HFR100

Name: Vishay 1 kV 70 A Switching Diode 2-Pin DO-203AB VS-70HFR100
Brand: Vishay
SKU: 120262
Price: 11.33 USD
Availability: InStock



Category Switching Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	22.9mm
Brand	Vishay
Height	22.9mm
Length	20.02mm
Model	VS-70HFR100
Width	17.35mm
Mount Type	Screw
Series	VS-70HF
Maximum Operating Temperature	180°C
Package Type	DO-203AB
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	70A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Stud Anode
Rectifier Type	Switching
Peak Reverse Current Ir	9mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.3kA
Maximum Forward Voltage Vf	1.35V
Vishay 800 V 70 A Diode Switching 2-Pin DO-203ABBrand	Vishay

Key Features

Maximum continuous forward current of 70A ensures robust operation.
Peak reverse repetitive voltage rated at 1kV for high voltage applications.
Standard recovery diode suitable for switching purposes.
Compact 2-pin DO-203AB package with stud anode configuration.
Operates reliably within -65°C to 180°C temperature range.
Peak non-repetitive forward surge current of 1.3kA for transient handling.
Low maximum forward voltage of 1.35V reduces power loss.
Ideal for industrial, power electronics, and semiconductor device applications.

Product Description

Vishay VS-70HFR100 is a high-performance switching diode rated for 1 kV and 70 A continuous forward current, supplied in a 2-pin DO-203AB package. This diode features a stud anode configuration and standard recovery rectifier type, designed to operate in demanding electrical environments.

Operating temperature ranges from -65°C to a maximum of 180°C, making it suitable for rigorous industrial and power electronics applications. The diode offers a peak reverse repetitive voltage of 1 kV along with a peak non-repetitive forward surge current capacity of 1.3 kA, allowing it to withstand transient spikes effectively.

The diode's maximum forward voltage drop is 1.35 V, which assists in reducing energy losses and improving efficiency. Its robust construction and compact size - including 20.02 mm length, 22.9 mm height and diameter, and 17.35 mm width - fit industry-standard DO-203AB packages for easy PCB mounting.

Key industrial uses for the VS-70HFR100 include power supply circuits, switching regulators, rectification tasks, and applications requiring fast switching and low forward voltage drop. Its reliability and performance make it a preferred choice in electrical component assemblies and semiconductor solutions.

Maximum continuous forward current of 70A ensures robust operation. Peak reverse repetitive voltage rated at 1kV for high voltage applications. Standard recovery diode suitable for switching purposes. Compact 2-pin DO-203AB package with stud anode configuration.

Operates reliably within -65°C to 180°C temperature range. Peak non-repetitive forward surge current of 1.3kA for transient handling. Low maximum forward voltage of 1.35V reduces power loss. Dimensions: Length 20.02mm, Height 22.9mm, Width 17.35mm, Diameter 22.9mm.

Ideal for industrial, power electronics, and semiconductor device applications. Product condition is new and designed for standard recovery switching tasks. Explore Vishay Switching Diodes and semiconductors at EnvMart for reliable industrial components suitable for diverse electronic systems and applications.
