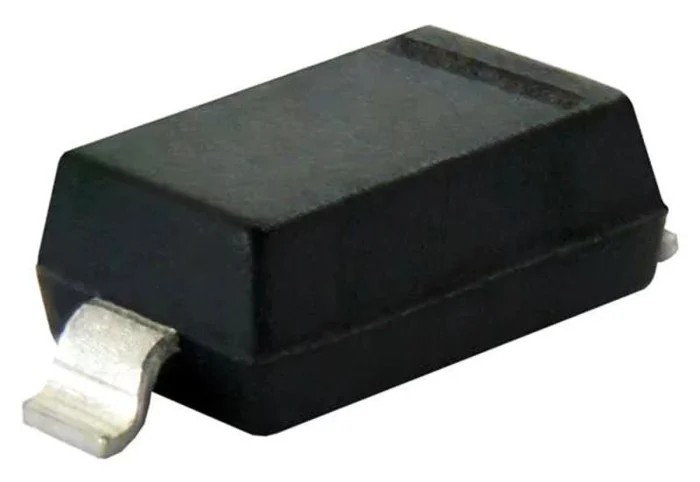

Vishay Switching Diode Single 150 mA 75 V SOD-123 Glass Passivated Junction Fast Switching 1N4148W-E3-08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.25mm |
| Length | 2.85mm |
| Model | 1N4148W-E3-08 |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Case | DO-204AL, molded epoxy over glass body |
| Package Type | SOD-123 |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -55°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Pin Count | 2 |
| Maximum Power Dissipation Pd | 350mW |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 4ns |
| Maximum Forward Current If | 150mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 75V |
Key Features
- Features a superectifier structure ensuring high reliability.
- Glass-passivated junction provides cavity-free construction for enhanced durability.
- Fast switching capabilities with a peak reverse recovery time of 4 nanoseconds.
- Low leakage current typically less than 0.2 microamperes.
- Has a maximum forward voltage of 1.2 volts and operates at temperatures up to 150°C.
- Constructed in a compact SOD-123 surface mount package with 2 pins.
- High forward surge capability with a peak non-repetitive forward surge current of 500 mA.
- Terminals are matte tin plated, solderable per industry standards.
Product Description
Vishay 1N4148W-E3-08 switching diode is a high-performance single silicon junction switching diode designed for electronic applications requiring fast switching and high reliability.
This diode supports a maximum forward current of 150 mA and a peak reverse repetitive voltage of 75 volts, making it suitable for applications such as high voltage rectification, snubber circuits for camera flashes, and grid control in CRT and TV devices.
The device is built with a superectifier structure and a cavity-free glass passivated junction to ensure durability and low leakage current, typically under 0.2 μA. It is engineered for operation within a temperature range of -55°C to 150°C, enhancing its robustness in demanding environments.
Encapsulated in a compact SOD-123 surface mount package measuring 2.85 mm in length, 1.7 mm in width, and 1.25 mm in height, the diode’s physical attributes enable easy integration into modern PCB designs. The matte tin plated terminals are solderable according to J-STD-002 and JESD 22-B102 standards, ensuring reliable electrical connections.
The 1N4148W-E3-08 variant meets RoHS compliance and is commercially graded, with the E3 suffix indicating compliance to whisker test standards JESD 201 class 1A. The device does not carry automotive certification and originates from China.
Superectifier structure ensuring high reliability. Glass-passivated junction for enhanced durability. Fast switching capability with 4 ns peak reverse recovery time. Low leakage current typically less than 0.2 μA. Maximum forward current: 150 mA and forward voltage: 1.2 V.
Surge current capacity up to 500 mA for non-repetitive events. Compact SOD-123 surface mount package with 2 pins. Matte tin plated terminals solderable per relevant standards. Color band indicates cathode polarity.
This switching diode is well-suited for industrial, electronic manufacturing, and repair applications including CRT grid high voltage rectification and camera flash snubber circuits. Its small size and fast switching make it invaluable in semiconductor discrete circuits.
Explore more Vishay discrete semiconductors and Switching Diodes at EnvMart for reliable electronic components designed for high efficiency and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current of this diode is 150 mA.
This diode is encapsulated in a compact SOD-123 surface mount package.
The dimensions of this diode are 2.85 mm in length, 1.7 mm in width, and 1.25 mm in height.
The maximum operating temperature is 150°C.
It features matte tin plated terminals that are solderable per industry standards.
The maximum forward voltage is 1.2 volts.
It has a peak non-repetitive forward surge current capacity of 500 mA.
The typical leakage current is less than 0.2 microamperes.
This switching diode is suitable for applications such as high voltage rectification and snubber circuits for camera flashes.
The diode meets RoHS compliance and is graded according to whisker test standards JESD 201 class 1A.
