Nexperia Uni-Directional ESD Protection Diode 330 W, 2-Pin SOD-523 PESD3V3S1UB,115

Free Delivery in India | Lowest Global Shipping Charges

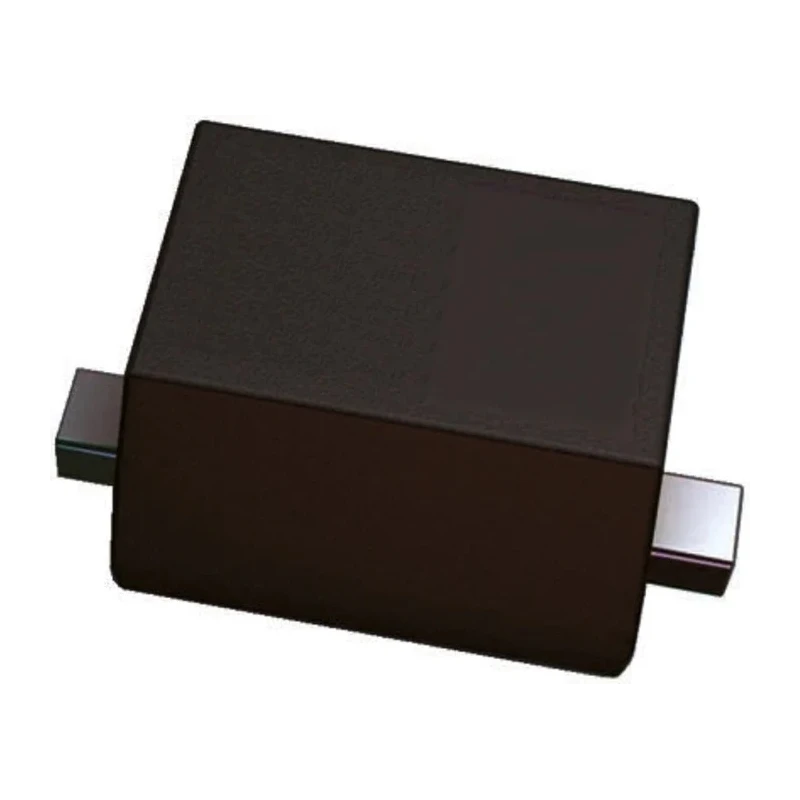

Nexperia Uni-Directional ESD Protection Diode 330 W, 2-Pin SOD-523 PESD3V3S1UB,115

Name: Nexperia Uni-Directional ESD Protection Diode 330 W, 2-Pin SOD-523 PESD3V3S1UB,115
Brand: Nexperia
SKU: 164533
Price: 0.1 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.65mm
Length	1.25mm
Model	PESD3V3S1UB,115
Width	0.85mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	20V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	5.2V
Maximum Reverse Stand-off Voltage Vwm	3.3V
Peak Pulse Power Dissipation Pppm	330W
Test Current It	5mA
Maximum Peak Pulse Current Ippm	18A
Maximum Reverse Leakage Current	2μA
DiodesZetex D1213A-01T-7 1-Element Uni-Directional TVS Diode, 2-Pin SOD-523Brand	DiodesZetex

Key Features

Provides unidirectional electrostatic discharge protection for sensitive electronics.
Features a minimum breakdown voltage of 5.2 V and maximum reverse stand-off voltage of 3.3 V.
Peak pulse power dissipation capacity is 330 W for transient voltage suppression.
Supports a maximum peak pulse current of 18 A for robust protection.
Compact SOD-523 surface mount package with dimensions 1.25mm x 0.85mm x 0.65mm.
Operates reliably in temperatures ranging from -65°C to 150°C.
Clamping voltage is rated at 20 V for effective transient suppression.
Maximum reverse leakage current is minimal at 2μA to ensure low power loss.

Product Description

Nexperia PESD3V3S1UB,115 is a uni-directional ESD protection diode designed to protect sensitive electronic devices and signal lines from damaging electrostatic discharges and transient voltage surges. Featuring a peak pulse power dissipation of 330 W, this diode effectively clamps voltage spikes with a clamping voltage of 20 V, ensuring robust transient voltage suppression for industrial and electronic applications.

The diode is housed in a small footprint 2-pin SOD-523 surface mount package measuring 1.25 mm in length, 0.85 mm in width, and 0.65 mm in height, making it suitable for compact PCB layouts. It is constructed with a single element chip configuration optimized for unidirectional protection, ideal for one signal line protection in digital and analog circuits.

This ESD diode operates over a wide temperature range from -65°C to 150°C, giving it durability for industrial, automotive (non-certified), and commercial electronics applications. Its minimal reverse leakage current of 2μA supports energy-efficient circuit designs by limiting unwanted power dissipation.

With a maximum reverse stand-off voltage of 3.3 V and a test current of 5 mA, the device ensures reliable operation during transient events up to a maximum peak pulse current of 18 A. The diode does not carry any specific safety or automotive approvals but meets general industrial performance standards.

Unidirectional ESD protection diode for sensitive electronic component safeguarding. 330 W peak pulse power rating for high-performance transient suppression. Surface mount 2-pin SOD-523 package with compact dimensions. Operates reliably from -65°C to 150°C ambient temperature range.

Low reverse leakage current of 2μA for energy-efficient operation. Single element design ideal for one signal line protection. Maximum peak pulse current rating of 18 A for robust surge handling. Suitable for industrial, electronic, and commercial device protection.

Compact size supports high-density PCB designs. Provides superior protection without automotive certifications.

This diode is ideal for engineers and designers seeking reliable ESD protection components for electronic circuits, telecommunications, computer hardware, and consumer electronics. For more options and related components, explore the Semiconductor ESD Protection Diode category on EnvMart.
