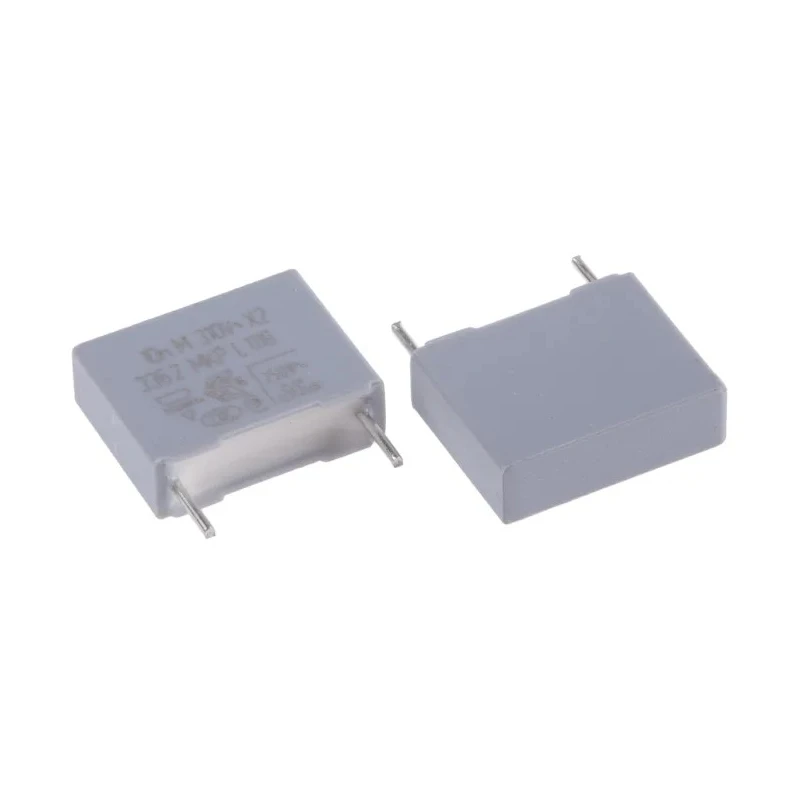

Vishay MKP 336 Film Capacitor X2, ±20 %, 10 nF 630 V dc 310 V ac Through Hole BFC233620103

Vishay BFC233620103 MKP 336 film capacitor is a high-quality electronic component designed for interference suppression with a capacitance of 10 nF. It is rated for 630 V dc and 310 V ac operation and features a through hole mounting configuration, making it suitable for a variety of electronic applications requiring reliable power and noise filtering.

This capacitor utilizes a metalized polypropylene film construction, which offers low loss and excellent temperature stability with a wide operating range from -55°C to 110°C. The unit is encapsulated in a self-extinguishing material to enhance electrical safety and durability under harsh conditions.

With a tolerance of ±20%, this capacitor provides consistent performance and meets suppression class X2 requirements, designed to suppress interference in electrical devices connected to mains power. The compact dimensions of 12.5 mm length, 10 mm height, and 4 mm width, coupled with a 10 mm lead pitch and 0.6 mm lead diameter, allow seamless integration into standard PCB designs.

The product complies with multiple international standards and approvals including CQC GB/T6346.14-2015, CSA E384-14, EN 60384-14:2013, IEC 60065, IEC 60384-14:2013, UL 60384-14, ensuring safety and quality critical for industrial, commercial, and laboratory use.

Packaged in tape and reel format, this Vishay film capacitor is ideal for automated assembly lines in manufacturing environments. Typical use cases include power supply units, electrical interference suppression, industrial control systems, and consumer electronics.

Class X2 interference suppression capacitor suitable for through hole mounting. Manufactured with metalized polypropylene film for high reliability. Encapsulated in self-extinguishing material for safety in electrical applications.

Tolerance of ±20% ensures performance consistency in circuits. Rated operating temperature range from -55°C to 110°C for wide environmental suitability. Dimensions of 12.5 mm length, 10 mm height, and 4 mm width with 10 mm lead pitch.

Lead diameter is 0.6 mm compatible with standard through hole PCB layouts. Conforms to international safety and performance standards including EN, IEC, UL, CSA, and CQC. Packaging in tape and reel format for automated assembly processes.

Designed for interference suppression applications in power electronic equipment. Explore additional Film Capacitors and passive electronic components at EnvMart for your project and industrial needs.
