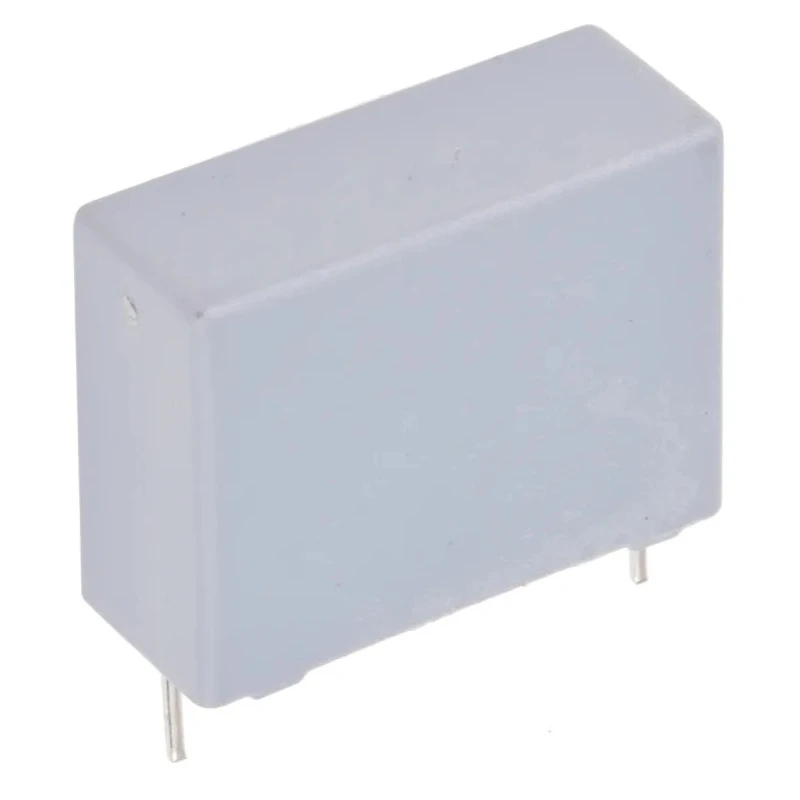

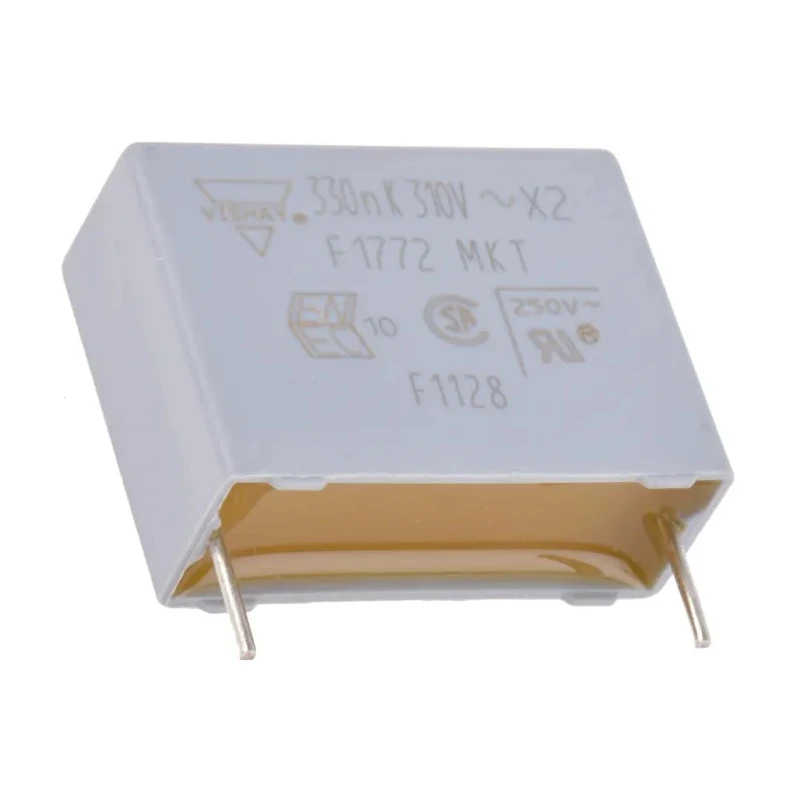

Vishay F1772 Film Capacitor 330 nF 310V AC 310V DC Through Hole F17724332000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 19.5mm |
| Length | 26mm |
| Model | F17724332000 |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 330nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| Vishay F1772 Polyester Film Capacitor, 310V ac, ±10%, 330nF, Through HoleBrand | Vishay |
Key Features
- Rated AC voltage of 310 volts and DC voltage of 310 volts ensures reliable performance.
- Capacitance of 330 nanofarads with ±10% tolerance for precision.
- Designed with X2 suppression class for EMI interference reduction.
- Constructed with metallised polyester film and epoxy resin-sealed flame-retardant case.
- Lead pitch of 22.5 mm and lead diameter of 0.8 mm for through hole mounting.
- Maximum operating temperature of 110°C suitable for industrial environments.
- Complies with IEC 60384-14, EN 60384-14, UL 60384-14 and other international safety standards.
Product Description
Vishay F17724332000 film capacitor is a premium X2 class metallised polyester film capacitor, rated at 330 nF capacitance and designed for through hole mounting. It is rated for both AC and DC voltages of 310 volts, ensuring reliable interference suppression in electronic circuits.
This capacitor features a flame-retardant epoxy resin-sealed case making it suitable for demanding industrial and commercial applications, including power electronics, EMI filtering, and suppression between phase lines or between phase and neutral lines.
The device includes a lead pitch of 22.5 mm with a 0.8 mm lead diameter for sturdy board mounting. It operates safely at temperatures up to 110°C and meets stringent international standards such as IEC 60384-14 edition 4, EN 60384-14, UL 60384-14, and CSA E384-14.
Its compact size with a length of 26 mm, width of 10 mm, and height of 19.5 mm suits space-constrained PCB designs. The component's robust construction and adherence to automotive standard AEC-Q200 also support use in automotive electronics requiring long-term reliability.
Rated AC voltage: 310 V. Rated DC voltage: 310 V. Capacitance: 330 nF ±10%. Suppression class: X2 for EMI interference reduction. Lead pitch: 22.5 mm, lead diameter: 0.8 mm. Maximum operating temperature: 110°C. Meets IEC 60384-14, EN 60384-14, UL 60384-14 standards.
Epoxy resin-sealed flame-retardant polyester film construction.
This capacitor is highly suitable for use in industrial machinery, power supplies, HVAC systems, automotive electronics, and other environments requiring robust EMI suppression and stable capacitance. Explore the wider range of Vishay electronic components and Film Capacitors for your application needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 330 nanofarads (nF) with a tolerance of ±10%.
It is rated for both AC and DC voltages of 310 volts.
The maximum operating temperature is 110°C, making it suitable for industrial environments.
The lead pitch is 22.5 mm and the lead diameter is 0.8 mm, designed for through hole mounting.
It is constructed with metallised polyester film and features an epoxy resin-sealed flame-retardant case.
It complies with IEC 60384-14, EN 60384-14, UL 60384-14, and meets the automotive standard AEC-Q200.
The dimensions are 26 mm in length, 10 mm in width, and 19.5 mm in height.
This model is designed with an X2 suppression class for EMI interference reduction.
It is suitable for industrial machinery, power supplies, HVAC systems, and automotive electronics.
The tolerance of ±10% allows for precision in capacitance, ensuring it meets the required specifications in various applications.
This capacitor belongs to the F1772 series by Vishay.
Yes, it adheres to the AEC-Q200 automotive standard, supporting its use in automotive electronics requiring long-term reliability.
